The Clipsal MAX9 range is designed to provide maximum efficiency and peace of mind to electricians, so that you can focus on growing your business and providing best service to your customers with latest innovation in circuit protection.

Clipsal offer an industry leading range of miniature circuit breakers (MCBs), which are ideal for retrofit installations or switchboards that are limited for space. Clipsal MCBs are suitable for horizontal or vertical 35mm DIN rail mounting, with the option of a two-position clip. All Clipsal MCBs are moulded from heavy-duty material and are finger-proof, providing additional protection from live terminal contact. Clipsal MAX9 MCBs include two types of operation: Thermal, for normal overload and Magnetic, for short circuit situation. The 6kA breaking capacity of these MCBs makes them ideal for residential applications that need MAX performance. This range has C-Curve characteristics, to suit most applications.

Features and Benefits

• Unique new white finish for a fresh modern look
• Standard characteristic is C-Curve suits most applications
• Complete solution with 1, 2 & 3 pole versions

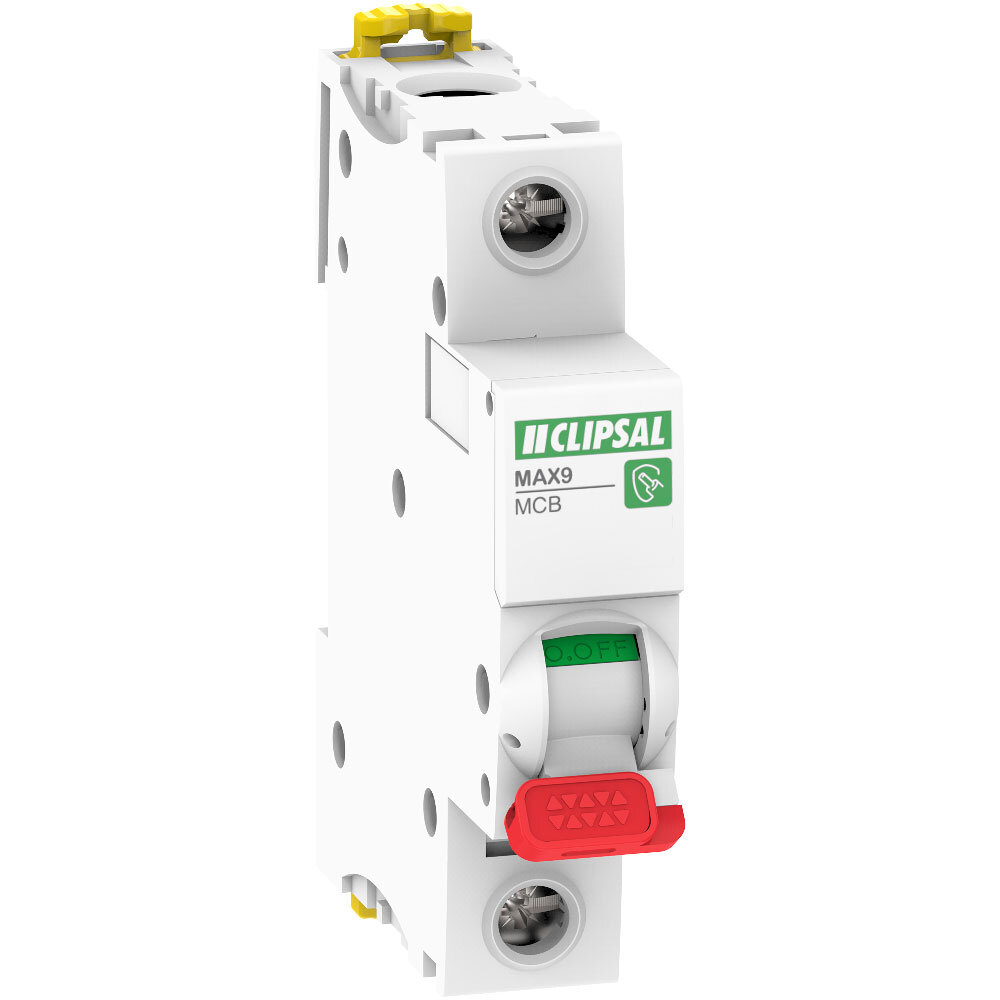

• Option of 1P, 2P & 3P 63A MCB with red toggle where MCB is used as main incomer
• Base module = 18mm wide. Compact standardised and consistent module dimensions
• Lift-up terminals. 'No hot spot’ terminations and all cable strands are locked in
• Combination head screws, choice of screwdrivers
• MCB mechanism is free tripping and If the switch is held in the ON position, the MCB will still operate
• Clipsal MCBs allow line or load cables to be connected at either top or bottom for greater installation flexibility.
