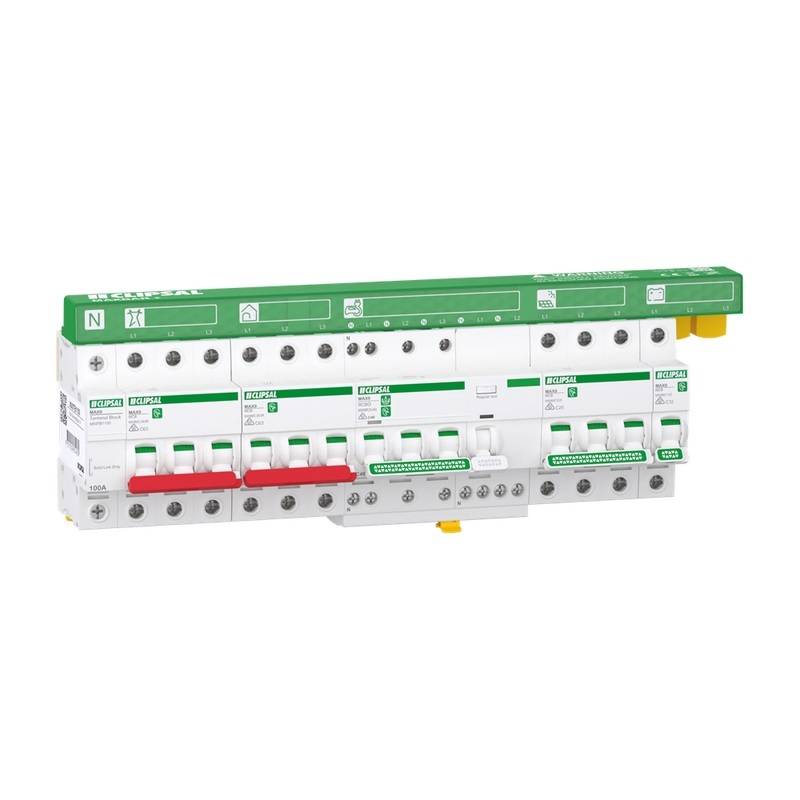

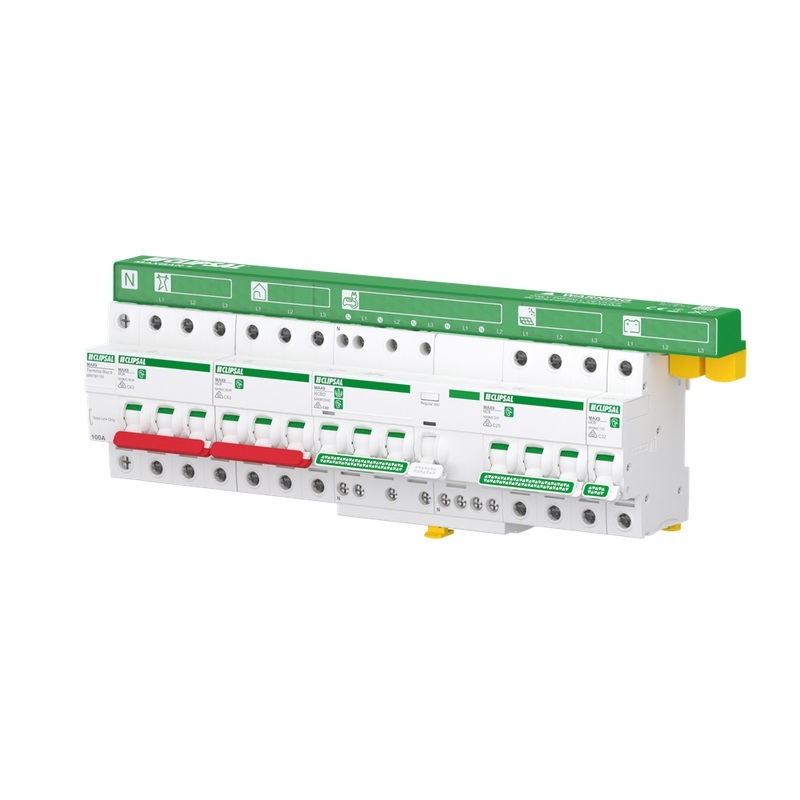

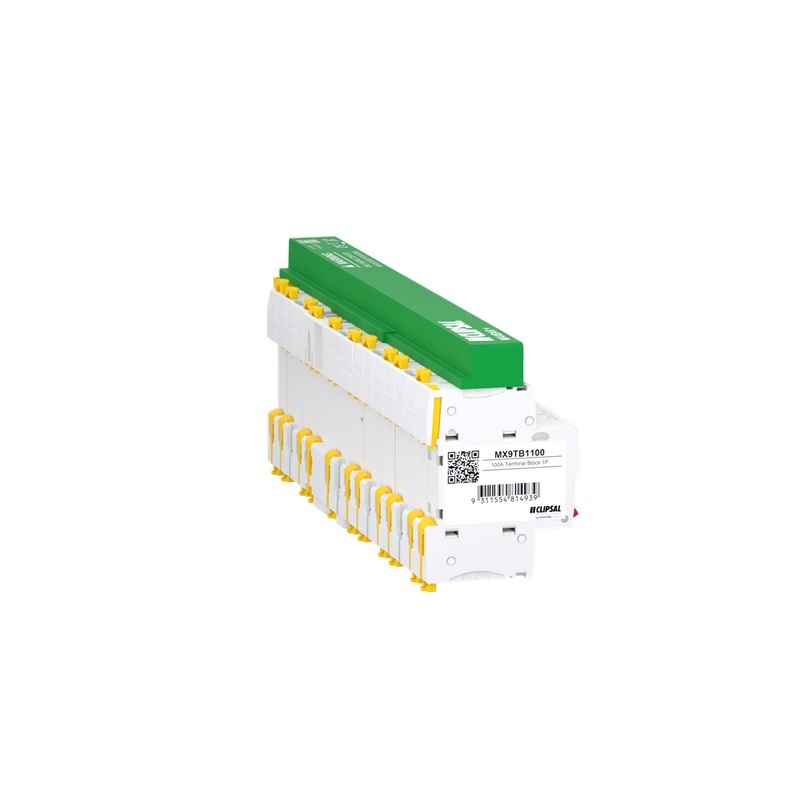

Introducing Clipsal MAX9 new energy protection kits with MAXBAR+.

These innovative kits offer a comprehensive solution, combining circuit protection, busbar, and accessories to effectively tackle the challenges posed by renewable energy and home electrification. The MAXBAR+ busbar is designed to efficiently group multiple energy sources onto one busbar and distribute power to the general loads of the house.

MAXBAR+ kits consist of a combination of busbar specifically designed for new energy applications, MCB's for grid supply, solar, and battery connections, RCBO sized for EV charging, and neutral terminal block for simple neutral distribution.

With multiple energy sources entering a switchboard in electrified homes, current flow inside the board will vary depending on time of day and usage.

The pictograms on the front of MAXBAR+ are crucial for correctly placing circuits along the busbar. This ensures that grid supply and alternate energy sources are positioned at opposite ends of the busbar, while the home’s general loads are placed in the middle. By doing so, MAXBAR+ helps to keep current flow within busbar rating, even during peak power demands.

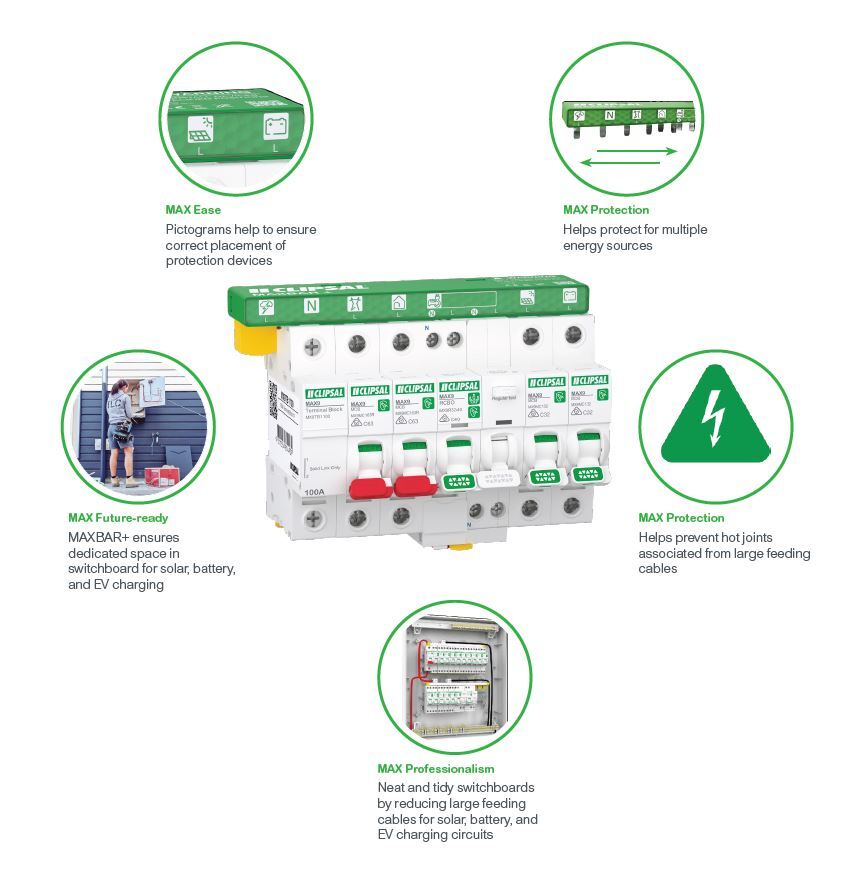

Features

  • MAX Protection: MAXBAR+ busbar helps protect switchboards against overloading from bi-directional and multiple energy sources whilst also preventing potential hazards and hot joints associated from large feeding cables required for solar, battery, and EV charging.
  • MAX Future-ready: MAXBAR+ ensures dedicated space in switchboard for solar, battery, and EV charging.
  • MAX Speed: Faster installation by using a busbar instead of traditional cabling method.
  • MAX Professionalism: Busbars enable installations to be neat and tidy by reducing feeding cables and providing more professional looking switchboards.
  • MAX Ease: Easy to understand pictograms help to ensure correct placement of protection devices.



Contents

  • 1 x MAXBAR+ 3P 18 Module

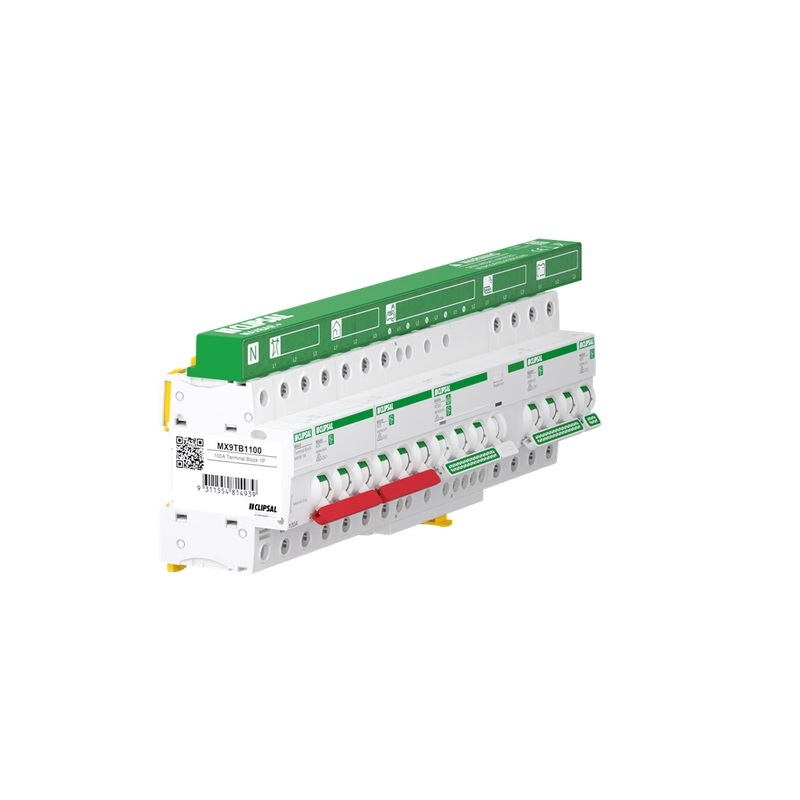

  • 1 x MX9TB1100 | MAX9 Neutral Terminal Block
  • 2 x MX9MC363R | MAX9 3P MCB 63A Red Toggle
  • 1 x MX9R3540 | MAX9 5 Module RCBO 40A
  • 1 x MX9MC325 | MAX9 3P MCB 25A
  • 1 x MX9MC132 | MAX9 1P MCB 32A
  • 3 x Busbar Tooth Cover
  • 1 x Sticker Label Sheet

All products must be installed by a licensed electrican. DIY electrical work is illegal and very dangerous.

Change of Mind
All products purchased from MJS Electrical Products & Supplies are backed by a thirty (30) day Peace of Mind Return Policy. All products returned must be in perfect unused condition, with all components, complete with original packaging. We will not allow returns on damaged or incomplete products. Proof of purchase is required. Should the product not be in original condition, please contact us before returning it as this may save you some unnecessary costs.

Damaged / Faulty Goods
If you find that the goods were damaged in transit or were faulty in some manner, please contact us within 24 hours of receiving the goods. We will organise for the return of the goods and arrange a credit towards your next purchase or send a replacement product. Customer will incur the cost of return postage and be credited the purchase price only. We recommend that you return your unwanted items using registered post or trackable courier. We can not be held responsible if returned items are lost in transit.

Warranties
Product warranties are governed by the respective manufacturers and / or suppliers warranty terms and conditions (available on request). We will not be liable to you or any third party for any loss suffered due to product failure. We will process product warranty claims through the respective manufacturers and/or suppliers. All warranties are void if the product is not installed by a licensed electrician.

Range Clipsal MAX9
PRODUCT INFO
SKU CLMX9K318PP
Model # MX9K318PP
Barcode # 3606487005315
Brand Clipsal
SHIPPING INFO
Shipping Weight 2.3500kg
Shipping Width 0.115m
Shipping Height 0.092m
Shipping Length 0.365m
