Q: How does a thermal overload relay protect a motor?
A: It monitors the current flowing to the motor and trips the circuit if the current exceeds a preset level for a specific duration, preventing overheating and potential motor damage.

Q: Can the relay be adjusted for different motor sizes?
A: Yes, the adjustable current settings allow the relay to be calibrated to match the full-load current of various motors, ensuring appropriate protection.

Q: What is the significance of the auxiliary contacts in the relay?
A: The auxiliary contacts (1 NO and 1 NC) are used for signaling and control purposes within the motor control circuit, allowing for integration with other control devices.

Q: What does the current range 10-14A/YD 18-24A refer to?

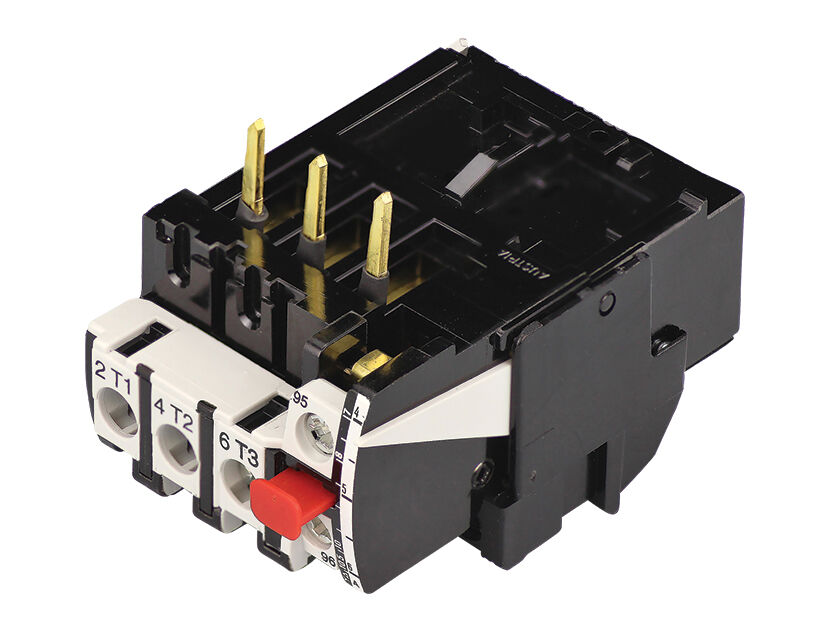

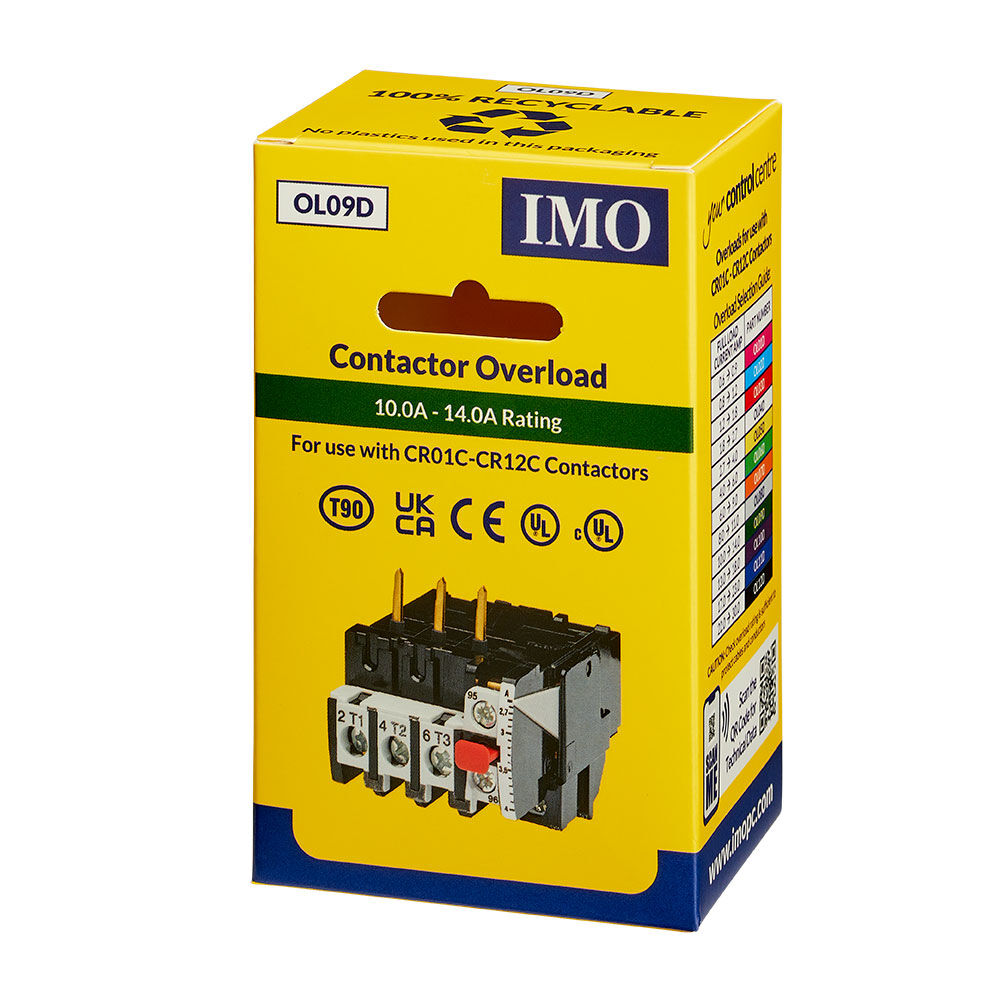

A: The current range (10-14A/YD 18-24A) in the IMO Thermal Overload Relay refers to the adjustable trip settings for motor protection, specifically when used in different starting configurations:

1. 10-14A – This range applies when the motor is running in a direct-on-line (DOL) connection or a standard operation mode.
2. YD 18-24A – This range is applicable when the motor is running in a star-delta (YD) starting configuration, which temporarily reduces the starting current.

Why is this important?

• Motors can be started using different methods, and the current they draw at startup can vary significantly.
• Direct-on-line (DOL) starting applies full voltage to the motor, leading to a higher inrush current.
• Star-delta (YD) starting initially reduces the voltage and current before transitioning to full power, requiring a separate current range adjustment.

By having these dual current ranges, the thermal overload relay can be properly calibrated to protect motors running under different startup conditions, preventing overheating, damage, or unnecessary tripping.

All products must be installed by a licensed electrican. DIY electrical work is illegal and very dangerous.
