Strip, push, connect – the fastest way to make a connection.

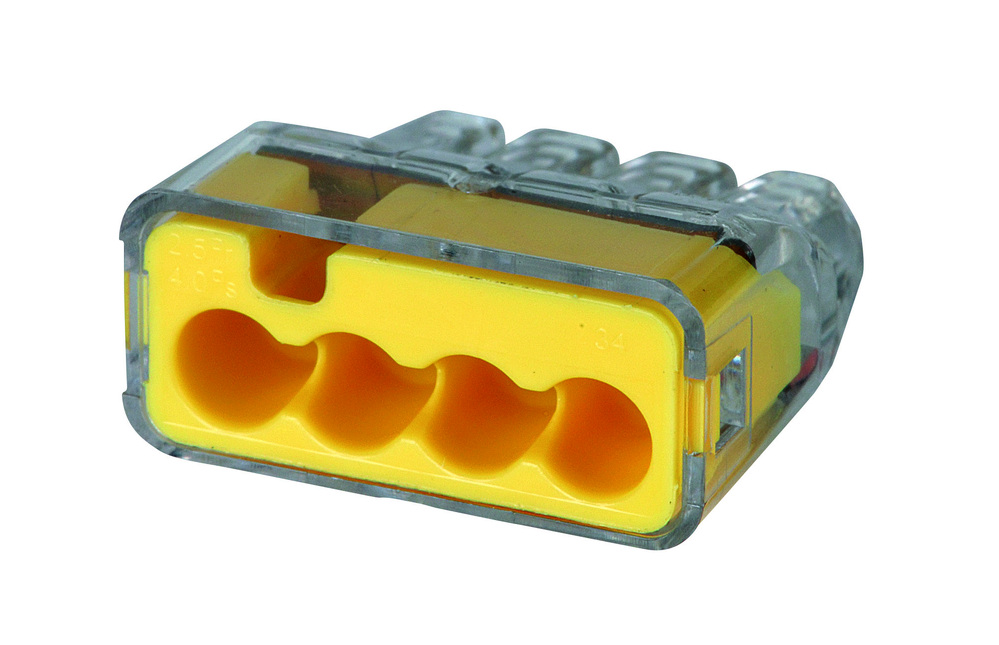

The Push-In Wire Connector is perfect for residential, light commercial, lighting retrofit, and pre-fab wiring systems, or any other branch circuit wiring application where a traditional twist-on wire connector would be used. Simply push the wire in – the low insertion force makes it easy.

The colour-coded shell allows for quick identification of port configuration while the clear polycarbonate housing allows for visual verification of every connection. The ergonomic design is easier to grip which means more comfortable push-in connections. The compact size makes for easy installations in even the tightest spots or shallow boxes, and the tough, flame-retardant shell stands up to the harshest environments.

Conform to AS/NZS IEC 60998.1 and AS/NZS IEC 60998.2.2 connecting device standards, CE approved, UL Listed, CSA Certified – the Push-In saves time and improves productivity while perfecting connections.

Features

• Fits any combination of 0.75mm² - 4.0mm² solid or 1.5mm² - 2.5mm² stranded (≤ 7 strands) copper conductors or tin bonded flexible wire
• 32 Amp / 450V rating (AS/NZS IEC 60998.1 and AS/NZS IEC 60998.2.2)
• 20 Amp / 600V rating (UL 486C)
• High quality, secure connections
• Clear shell allows verification of connection
• Continuity test port
• Colour coded for easy identification
• CE, UKCA and UL approved
• Conform to AS/NZS IEC 60998.1 and AS/NZS IEC 60998.2.2 connecting device standards
• Tough, UL 94V-2 flame-retardant shell rated at 105°C (221°F)
• Approved for bonding and grounding applications
