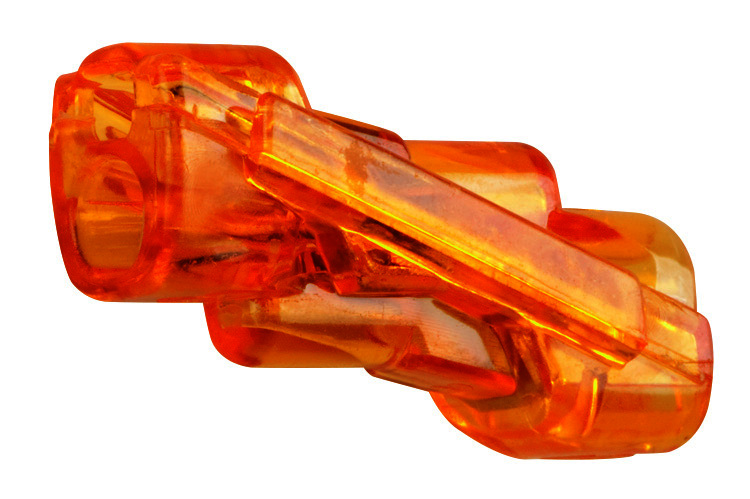

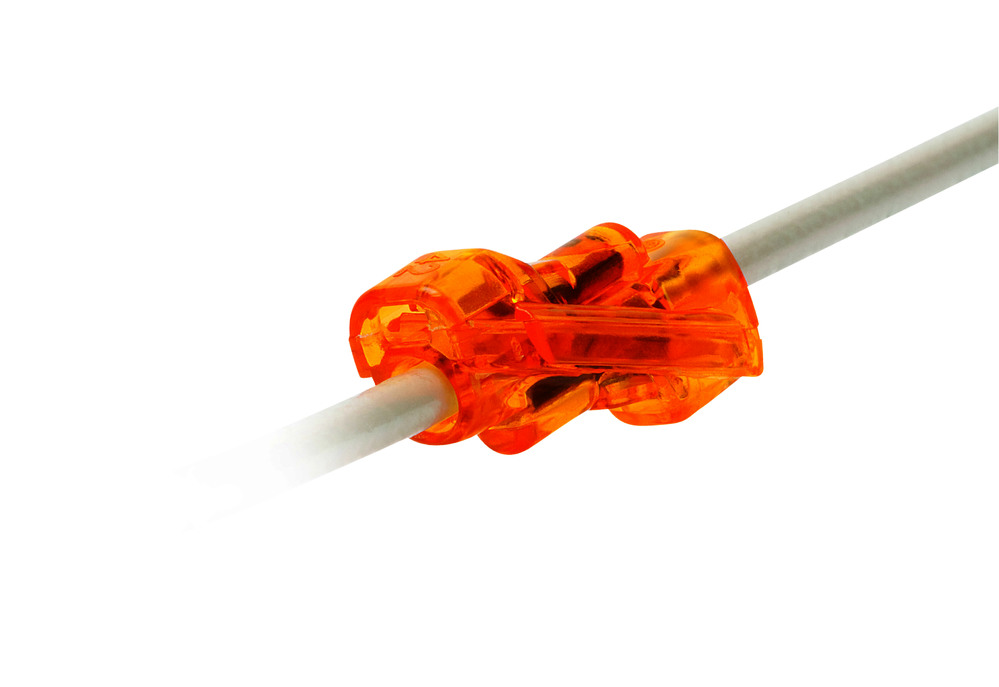

The SpliceLine® in-line wire connector provides a crimp-free, solderless butt Splice.

AS/NZS IEC 60998.1 and AS/NZS IEC 60998.2.2 connecting device standards, the two-port model accepts up to 4.0 mm2 solid wire allowing one connector to do the job of multiple through-crimps.

Its small size and tool-free application makes SpliceLine®  the obvious solution for connecting wires in a broad range of applications, including prefabricated wiring, lighting and ring main circuits.

Electricians are often confronted with an existing wire that has been cut too short by the previous contractor to safely install a socket, light switch or lighting fixture. In these situations, it is often very difficult if not impossible to use a crimp tool due to space restrictions.

With SpliceLine®  however, the short wire is simply pushed into one end of the connector with the extra length of wire being pushed into the other open end. It now takes less than 10 seconds to join two wires together.

Features

  • 32A – 450V | 0.5mm2 - 4.0mm2 for solid |1.0 mm2 - 2.5 mm2 for stranded
  • Faster alternative to traditional butt splices
  • Tool-free, push-in through crimp
  • Slim design fits through standard knockouts
  • Perfect for lengthening wire
  • Transparent polycarbonate window for visual inspection of connection
  • Wide wire range from 0.5mm2 to 4.0mm2 for solid and 1.0 mm2 to 2.5 mm2  for stranded
  • Conform to AS/NZS IEC 60998.1 and AS/NZS IEC 60998.2.2 connecting device standards
  • Rating: IEC 60998: 32A | 450V | 105°C max and UL 486 C: 20A| 600V |105°C

All products must be installed by a licensed electrican. DIY electrical work is illegal and very dangerous.

Change of Mind
All products purchased from MJS Electrical Products & Supplies are backed by a thirty (30) day Peace of Mind Return Policy. All products returned must be in perfect unused condition, with all components, complete with original packaging. We will not allow returns on damaged or incomplete products. Proof of purchase is required. Should the product not be in original condition, please contact us before returning it as this may save you some unnecessary costs.

Damaged / Faulty Goods
If you find that the goods were damaged in transit or were faulty in some manner, please contact us within 24 hours of receiving the goods. We will organise for the return of the goods and arrange a credit towards your next purchase or send a replacement product. Customer will incur the cost of return postage and be credited the purchase price only. We recommend that you return your unwanted items using registered post or trackable courier. We can not be held responsible if returned items are lost in transit.

Warranties
Product warranties are governed by the respective manufacturers and / or suppliers warranty terms and conditions (available on request). We will not be liable to you or any third party for any loss suffered due to product failure. We will process product warranty claims through the respective manufacturers and/or suppliers. All warranties are void if the product is not installed by a licensed electrician.

PRODUCT INFO
SKU II30-1142J
Model # 30-1142J
Barcode # 783250134403
Brand IDEAL Industries
SHIPPING INFO
Shipping Weight 0.2800kg
Shipping Width 0.085m
Shipping Height 0.060m
Shipping Length 0.070m
