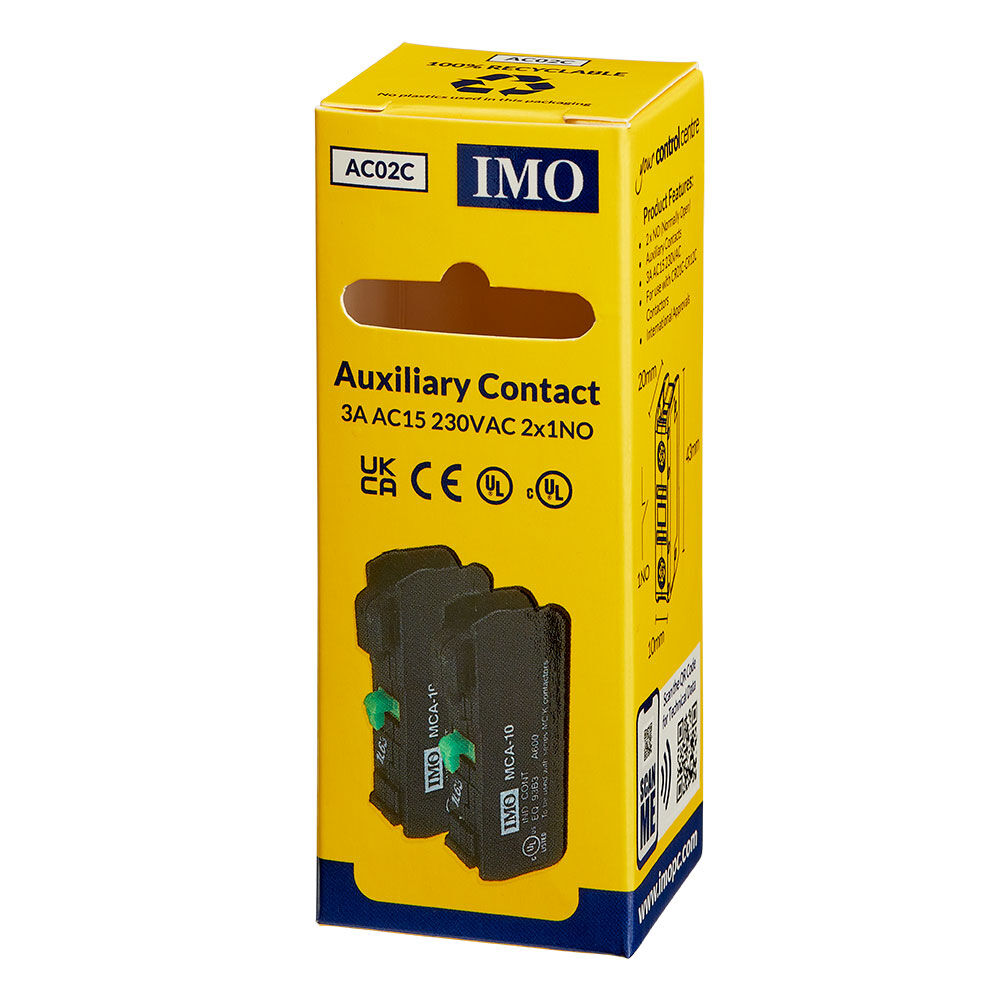

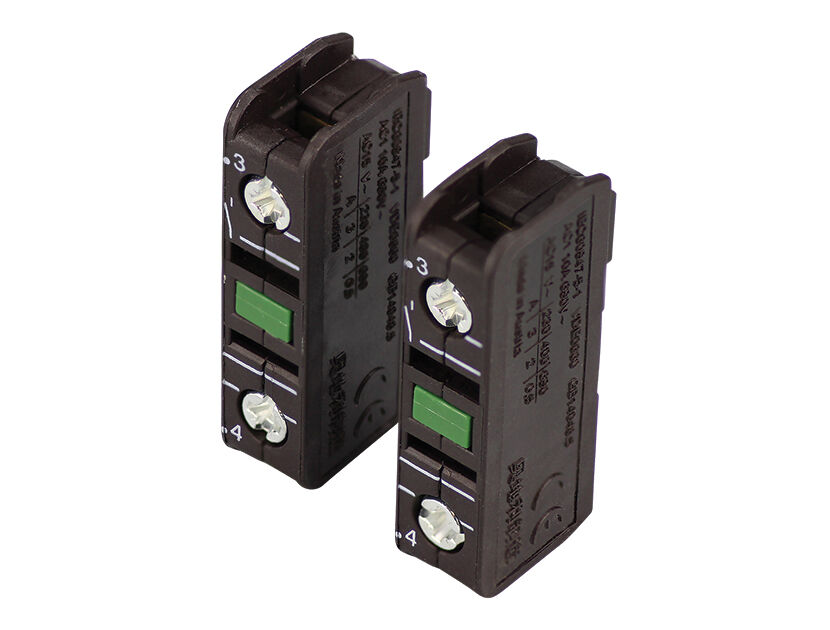

The IMO MCA10 is an auxiliary contact block designed to enhance the functionality of IMO's MC series and CR01C to CR12C Contactors. This auxiliary block provides an additional 1 Normally Open (NO) contact, allowing for expanded control and signaling capabilities in various electrical applications. This package comes with 2 x MCA10 Auxillary Contacts in the 1 pack.

Key Features:

  • Contact Configuration: 1 Normally Open (NO) contact.
  • Mounting Position: Top-mounted on the main contactor.
  • Compatibility: Designed for use with IMO CR01C to CR12C Contactors as well as MC series contactors, including models MC10 to MC74.

Specifications:

  • Rated Operational Voltage (Ue): Up to 690V AC.
  • Thermal Current (Ith): 10A at 40°C ambient temperature.
  • AC-15 Rated Operational Current:
    • 3A at 220-240V AC.
    • 2A at 380-440V AC.
  • Mounting Method: Top mounting on compatible contactors.

Applications:

The MCA10 auxiliary contact block is ideal for applications requiring additional control or signaling functions in conjunction with primary contactors. Common uses include:

  • Control Circuits: Providing feedback signals to control systems.
  • Interlocking: Implementing safety interlocks in motor control setups.
  • Signaling: Activating indicator lights or alarms based on contactor status.

Installation:

The MCA10 is designed for straightforward top mounting onto compatible MC series contactors. Ensure that the contactor is de-energized before installation to maintain safety.

Additional Information:

For detailed technical data and installation guidelines, please refer to the datasheet.

The IMO MCA10 auxiliary contact block offers a reliable solution for expanding the control capabilities of your motor control systems, ensuring seamless integration and enhanced operational flexibility.

Q: What is the contact configuration of the IMO MCA10 auxiliary contact block?
A: The MCA10 features 1 Normally Open (NO) contact, allowing it to be used for control and signaling functions in electrical circuits.

Q: Which IMO contactors are compatible with the MCA10 auxiliary contact block?
A: The MCA10 is designed for use with IMO CR01C to CR12C Contactors as well as MC series contactors, including models MC10 to MC74.

Q: How is the MCA10 auxiliary contact installed?
A: The MCA10 is top-mounted onto compatible contactors for easy integration into control circuits. It requires no additional wiring modifications.

All products must be installed by a licensed electrican. DIY electrical work is illegal and very dangerous.

Change of Mind
All products purchased from MJS Electrical Products & Supplies are backed by a thirty (30) day Peace of Mind Return Policy. All products returned must be in perfect unused condition, with all components, complete with original packaging. We will not allow returns on damaged or incomplete products. Proof of purchase is required. Should the product not be in original condition, please contact us before returning it as this may save you some unnecessary costs.

Damaged / Faulty Goods
If you find that the goods were damaged in transit or were faulty in some manner, please contact us within 24 hours of receiving the goods. We will organise for the return of the goods and arrange a credit towards your next purchase or send a replacement product. Customer will incur the cost of return postage and be credited the purchase price only. We recommend that you return your unwanted items using registered post or trackable courier. We can not be held responsible if returned items are lost in transit.

Warranties
Product warranties are governed by the respective manufacturers and / or suppliers warranty terms and conditions (available on request). We will not be liable to you or any third party for any loss suffered due to product failure. We will process product warranty claims through the respective manufacturers and/or suppliers. All warranties are void if the product is not installed by a licensed electrician.

PRODUCT INFO
SKU IMOAC02C
Model # AC02C
Barcode # 5056207480829
Brand IMO Pacific
SHIPPING INFO
Shipping Weight 0.0200kg
Shipping Width 0.040m
Shipping Height 0.100m
Shipping Length 0.035m
