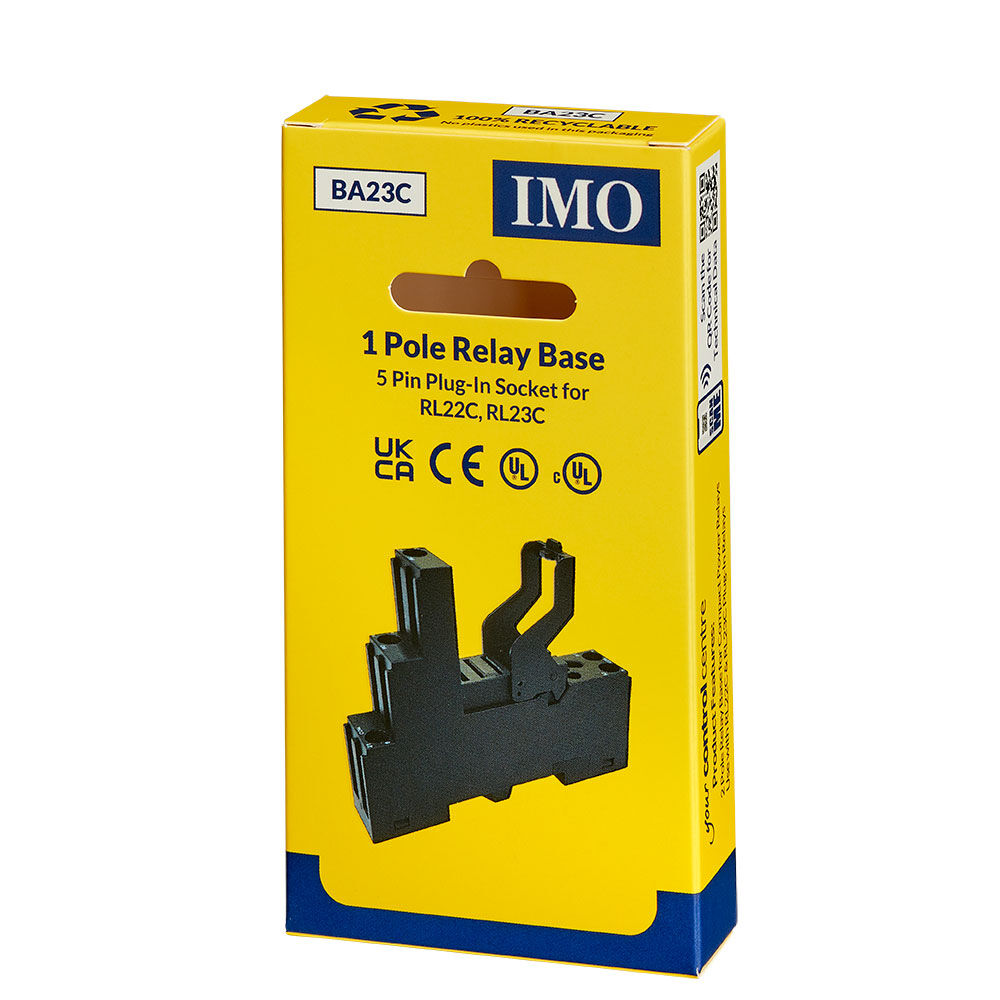

The IMO BA23C is a 5-pin relay base designed for use with specific IMO relays, such as the RL22C and RL23C models. This relay base facilitates secure and efficient mounting of relays onto standard DIN rails, ensuring reliable electrical connections in various industrial and commercial applications.

Key Features:

  • Compatibility: Designed specifically for 5-pin relays like the RL22C and RL23C.
  • Mounting: Suitable for standard DIN rail installation, allowing for organized and space-efficient relay setups.
  • Electrical Ratings: Supports up to 10A at 300V, accommodating a range of control and automation requirements.

Specifications:

  • Number of Pins: 5
  • Mounting Type: DIN rail
  • Current Rating: 10A
  • Voltage Rating: 300V

Applications:

The BA23C relay base is ideal for use in control panels, automation systems, and other electrical assemblies where reliable relay mounting and connections are essential.

Installation:

The base is designed for easy snap-on mounting onto DIN rails, simplifying the installation process and ensuring a secure fit.

Additional Information:

For detailed technical data and installation guidelines, please refer to the datasheet.

The IMO BA23C relay base offers a dependable solution for mounting 5-pin relays, ensuring secure connections and streamlined installation in various electrical applications.

Q: Which relays are compatible with the IMO BA23C relay base?
A: The BA23C is designed for use with 5-pin IMO relays, including models RL22C and RL23C.

Q: How is the BA23C relay base installed?
A: The BA23C is DIN rail mountable, allowing for quick and secure installation in control panels and automation systems.

Q: What is the maximum current and voltage rating of the BA23C relay base?
A: The BA23C is rated for up to 10A at 300V, making it suitable for various industrial and commercial control applications

All products must be installed by a licensed electrican. DIY electrical work is illegal and very dangerous.

Change of Mind
All products purchased from MJS Electrical Products & Supplies are backed by a thirty (30) day Peace of Mind Return Policy. All products returned must be in perfect unused condition, with all components, complete with original packaging. We will not allow returns on damaged or incomplete products. Proof of purchase is required. Should the product not be in original condition, please contact us before returning it as this may save you some unnecessary costs.

Damaged / Faulty Goods
If you find that the goods were damaged in transit or were faulty in some manner, please contact us within 24 hours of receiving the goods. We will organise for the return of the goods and arrange a credit towards your next purchase or send a replacement product. Customer will incur the cost of return postage and be credited the purchase price only. We recommend that you return your unwanted items using registered post or trackable courier. We can not be held responsible if returned items are lost in transit.

Warranties
Product warranties are governed by the respective manufacturers and / or suppliers warranty terms and conditions (available on request). We will not be liable to you or any third party for any loss suffered due to product failure. We will process product warranty claims through the respective manufacturers and/or suppliers. All warranties are void if the product is not installed by a licensed electrician.

PRODUCT INFO
SKU IMOBA23C
Model # BA23C
Barcode # 5056207442254
Brand IMO Pacific
SHIPPING INFO
Shipping Weight 0.0600kg
Shipping Width 0.070m
Shipping Height 0.132m
Shipping Length 0.023m
