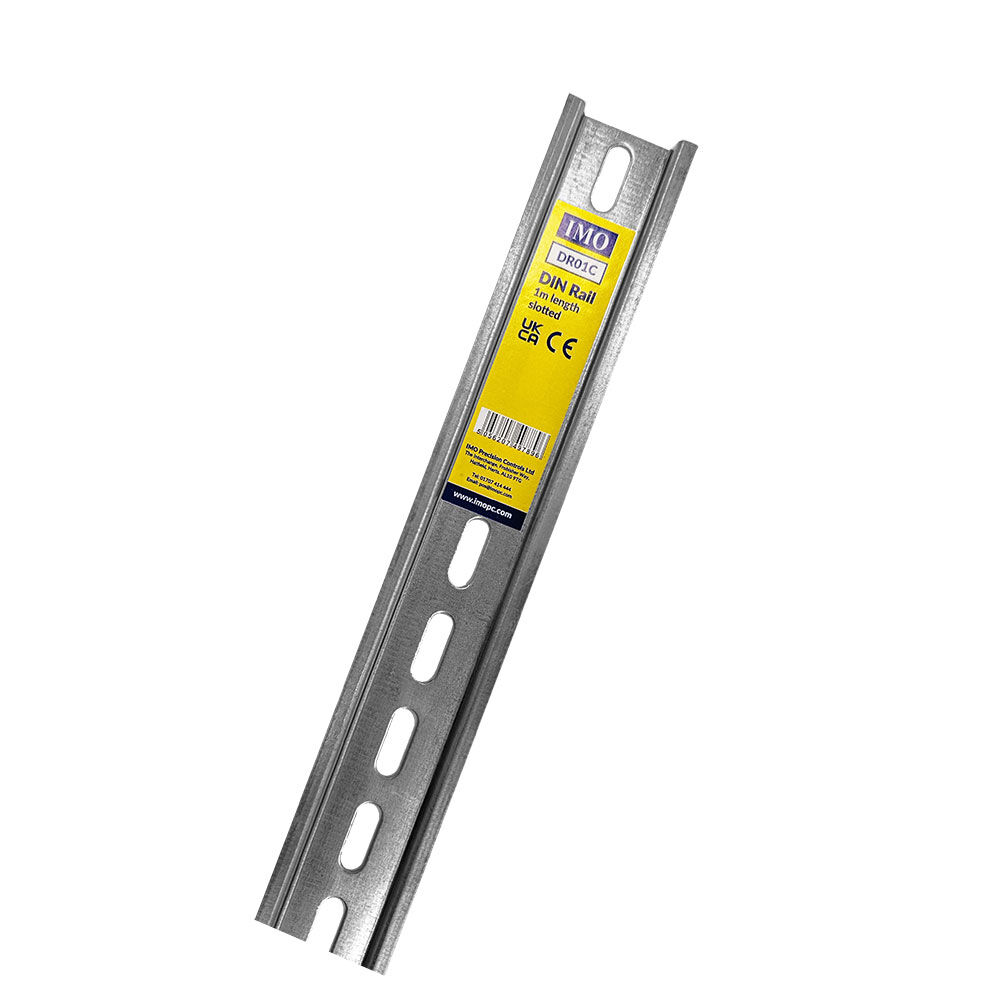

The IMO 35mm x 7.5mm Top Hat DIN Rail is a standardized metal rail widely used for mounting circuit breakers, relays, programmable logic controllers (PLCs), motor controllers, and other electrical equipment within control panels and equipment racks. This rail conforms to the IEC/EN 60715 standard, ensuring compatibility with a broad range of industrial control products.

Key Features:

  • Standard Dimensions: The rail measures 35mm in width and 7.5mm in depth, adhering to the "Top Hat" or "TH35" profile as specified in IEC/EN 60715.
  • Material: Typically constructed from cold-rolled carbon steel with a zinc-plated or chromated bright surface finish, offering durability and corrosion resistance.
  • Compatibility: Designed to accommodate a variety of modular electrical devices, facilitating organized and efficient assembly within control enclosures.

Specifications:

  • Width: 35mm
  • Depth: 7.5mm
  • Length: Available in various lengths to suit different enclosure sizes and configurations.
  • Compliance: Meets IEC/EN 60715 standards for mounting rails in low-voltage switchgear and control gear installations.

Applications:

  • Control Panels: Provides a standardized mounting solution for electrical components, ensuring secure attachment and ease of maintenance.
  • Industrial Automation: Facilitates the organized installation of PLCs, relays, and other automation devices within equipment racks.
  • Building Management Systems: Used in the assembly of control systems for lighting, HVAC, and other building services.

The 35mm x 7.5mm Top Hat DIN Rail offers a reliable and standardized solution for mounting electrical components, ensuring a secure and organized installation across various industrial and commercial applications.

Q: What is the purpose of a DIN rail in electrical installations?
A: DIN rails provide a standardized mounting system for electrical devices, allowing for secure attachment, organized layout, and easy maintenance within control panels and equipment racks.

Q: Are devices from different manufacturers compatible with the 35mm x 7.5mm Top Hat DIN Rail?
A: Yes, the 35mm x 7.5mm Top Hat DIN Rail adheres to the IEC/EN 60715 standard, ensuring compatibility with a wide range of devices from various manufacturers designed for this standard.

Q: Can the DIN rail be cut to a specific length to fit custom enclosures?
A: Yes, DIN rails are typically supplied in standard lengths but can be cut to the desired size using appropriate tools to fit specific enclosure dimensions.

All products must be installed by a licensed electrican. DIY electrical work is illegal and very dangerous.

Change of Mind
All products purchased from MJS Electrical Products & Supplies are backed by a thirty (30) day Peace of Mind Return Policy. All products returned must be in perfect unused condition, with all components, complete with original packaging. We will not allow returns on damaged or incomplete products. Proof of purchase is required. Should the product not be in original condition, please contact us before returning it as this may save you some unnecessary costs.

Damaged / Faulty Goods
If you find that the goods were damaged in transit or were faulty in some manner, please contact us within 24 hours of receiving the goods. We will organise for the return of the goods and arrange a credit towards your next purchase or send a replacement product. Customer will incur the cost of return postage and be credited the purchase price only. We recommend that you return your unwanted items using registered post or trackable courier. We can not be held responsible if returned items are lost in transit.

Warranties
Product warranties are governed by the respective manufacturers and / or suppliers warranty terms and conditions (available on request). We will not be liable to you or any third party for any loss suffered due to product failure. We will process product warranty claims through the respective manufacturers and/or suppliers. All warranties are void if the product is not installed by a licensed electrician.

PRODUCT INFO
SKU IMODR01C
Model # DR01C
Barcode # 5056207497896
Brand IMO Pacific
SHIPPING INFO
Shipping Weight 0.5000kg
Shipping Width 0.035m
Shipping Height 0.008m
Shipping Length 1.000m
