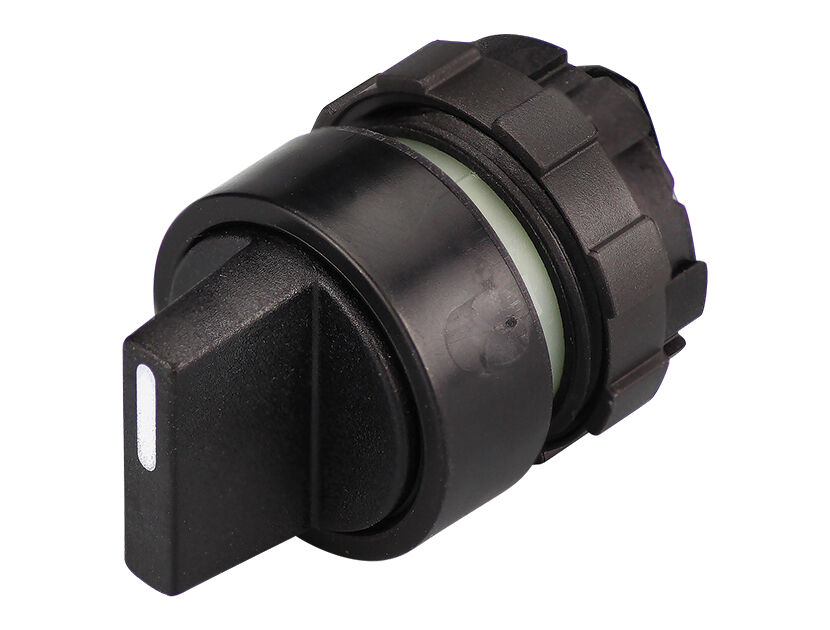

The IMO PB04C (BS3KN9) is a 2-position rotary switch, designed for precise manual control in industrial applications. With a Ø22.5mm pushbutton size, it is compatible with standard industrial control panels. This rotary switch is rated for 10A under AC1 (for non-inductive or slightly inductive loads) and 6A under AC15 (for controlling electromagnetic loads), ensuring reliable performance in various electrical environments.

Key Features:

  • Electrical Ratings:
    • AC1 Rating: 10A (for resistive/non-inductive loads)
    • AC15 Rating: 6A (for controlling electromagnetic loads such as contactor coils)
  • 2-Position Rotary Switch: Provides simple and effective manual switching between two positions.
  • Ø22.5mm Pushbutton Size: Standard size for easy integration into industrial control panels.
  • Smooth Rotary Operation: Allows for precise adjustments in machinery and automation systems.
  • Ergonomic & Durable Design: Built to withstand demanding industrial environments.
  • Easy Installation: Designed for seamless panel mounting with minimal setup required.

Applications:

  • Industrial Machinery: Used for manually selecting different machine operating modes.
  • Control Panels: Ideal for applications that require a 2-position rotary selector.
  • Automation Systems: Enables manual control in automated systems and processes.

The IMO PB04C (BS3KN9) rotary knob offers reliable manual control for various industrial applications, combining ergonomic design with robust construction to ensure dependable performance.

Q: What do the AC1 and AC15 ratings signify?
A: AC1 refers to the rating for resistive or slightly inductive loads (e.g., heaters, lighting), while AC15 is for controlling electromagnetic loads (e.g., contactor coils).

Q: Can the BS3KN9 be used in outdoor applications?
A: While it is built for durability, outdoor use requires an appropriate enclosure to protect against environmental factors such as moisture and dust.

Q: Is the BS3KN9 rotary knob suitable for safety-critical applications?
A: While reliable, for safety-critical applications, consider using certified emergency stop or safety-rated components.

Q: Is the BS3KN9 rotary switch compatible with standard pushbutton panel cutouts?
A: Yes, it is designed for a Ø22.5mm cutout, which is the standard size for most industrial control panels.

All products must be installed by a licensed electrican. DIY electrical work is illegal and very dangerous.

Change of Mind
All products purchased from MJS Electrical Products & Supplies are backed by a thirty (30) day Peace of Mind Return Policy. All products returned must be in perfect unused condition, with all components, complete with original packaging. We will not allow returns on damaged or incomplete products. Proof of purchase is required. Should the product not be in original condition, please contact us before returning it as this may save you some unnecessary costs.

Damaged / Faulty Goods
If you find that the goods were damaged in transit or were faulty in some manner, please contact us within 24 hours of receiving the goods. We will organise for the return of the goods and arrange a credit towards your next purchase or send a replacement product. Customer will incur the cost of return postage and be credited the purchase price only. We recommend that you return your unwanted items using registered post or trackable courier. We can not be held responsible if returned items are lost in transit.

Warranties
Product warranties are governed by the respective manufacturers and / or suppliers warranty terms and conditions (available on request). We will not be liable to you or any third party for any loss suffered due to product failure. We will process product warranty claims through the respective manufacturers and/or suppliers. All warranties are void if the product is not installed by a licensed electrician.

PRODUCT INFO
SKU IMOPB04C
Model # PB04C
Barcode # 5056207487682
Brand IMO Pacific
SHIPPING INFO
Shipping Weight 0.0200kg
Shipping Width 0.040m
Shipping Height 0.100m
Shipping Length 0.035m
