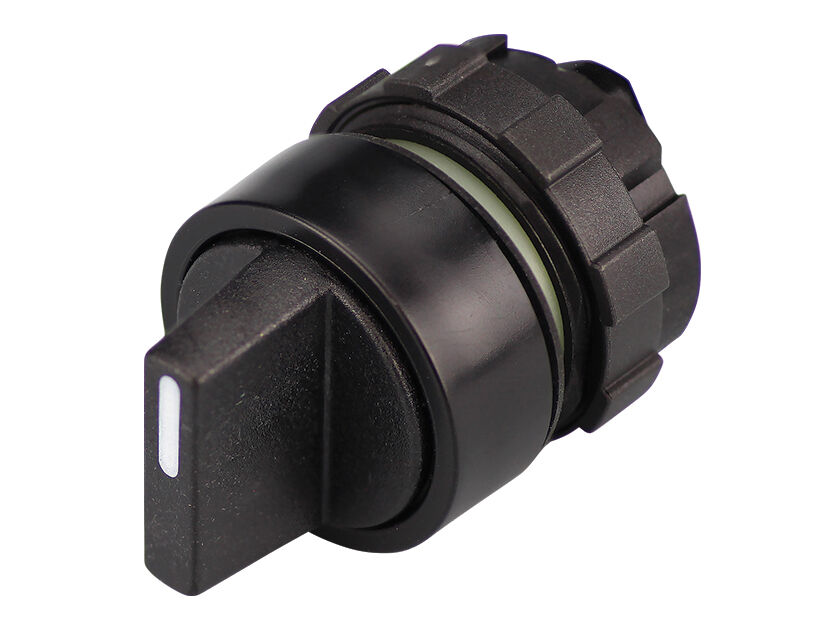

The IMO PB05C (BS3KN3) is a 3-position rotary switch designed for industrial control applications. Featuring a maintained action mechanism, it allows the switch to stay in its selected position until manually changed. The switch is rated for 10A under AC1 (non-inductive or slightly inductive loads) and 6A under AC15 (control of electromagnetic loads) duty categories. It is designed for a standard Ø22.5mm mounting hole, ensuring compatibility with most industrial control panels.

Key Features:

  • Electrical Ratings:
    • AC1 Rating: 10A
    • AC15 Rating: 6A
  • 3-Position Rotary Switch: Provides three selectable positions for versatile control applications.
  • Maintained Action: The switch remains in the selected position until manually actuated to a different position.
  • Standard Mounting Size: Designed for Ø22.5mm panel cutouts, facilitating easy integration into control panels.
  • Durable Construction: Built to withstand demanding industrial environments, ensuring longevity and reliable performance.

Applications:

  • Industrial Machinery: Used for selecting different operational modes or settings in machinery.
  • Control Panels: Ideal for applications requiring a multi-position selector switch for manual control.
  • Automation Systems: Suitable for manual input in automated processes, allowing operators to choose between different control modes.

The IMO BS3KN3 rotary switch combines functionality with a robust design, making it a reliable choice for various industrial control applications.

Q: What do the AC1 and AC15 ratings signify?
A: The AC1 rating pertains to non-inductive or slightly inductive loads, such as resistive loads, while the AC15 rating applies to the control of electromagnetic loads, like contactor coils.

Q: Is the BS3KN3 rotary switch compatible with standard control panel cutouts?
A: Yes, it is designed for a Ø22.5mm mounting hole, which is a standard size in industrial control panels.

Q: Can the BS3KN3 switch be used in outdoor applications?
A: While the switch is built for durability, its suitability for outdoor use would depend on the specific environmental conditions and whether it is installed within an appropriate enclosure.
