The Klein Tools Tone & Probe PRO Wire Tracing Kit (Model: VDV500-820) is a professional-grade solution for identifying and tracing wires or cable pairs in telephone, data, security, and electrical systems. Designed with precision and ruggedness in mind, this kit includes a Tone Generator and a Probe, offering clear signal detection, even in congested or bundled cable environments.

Key Features:

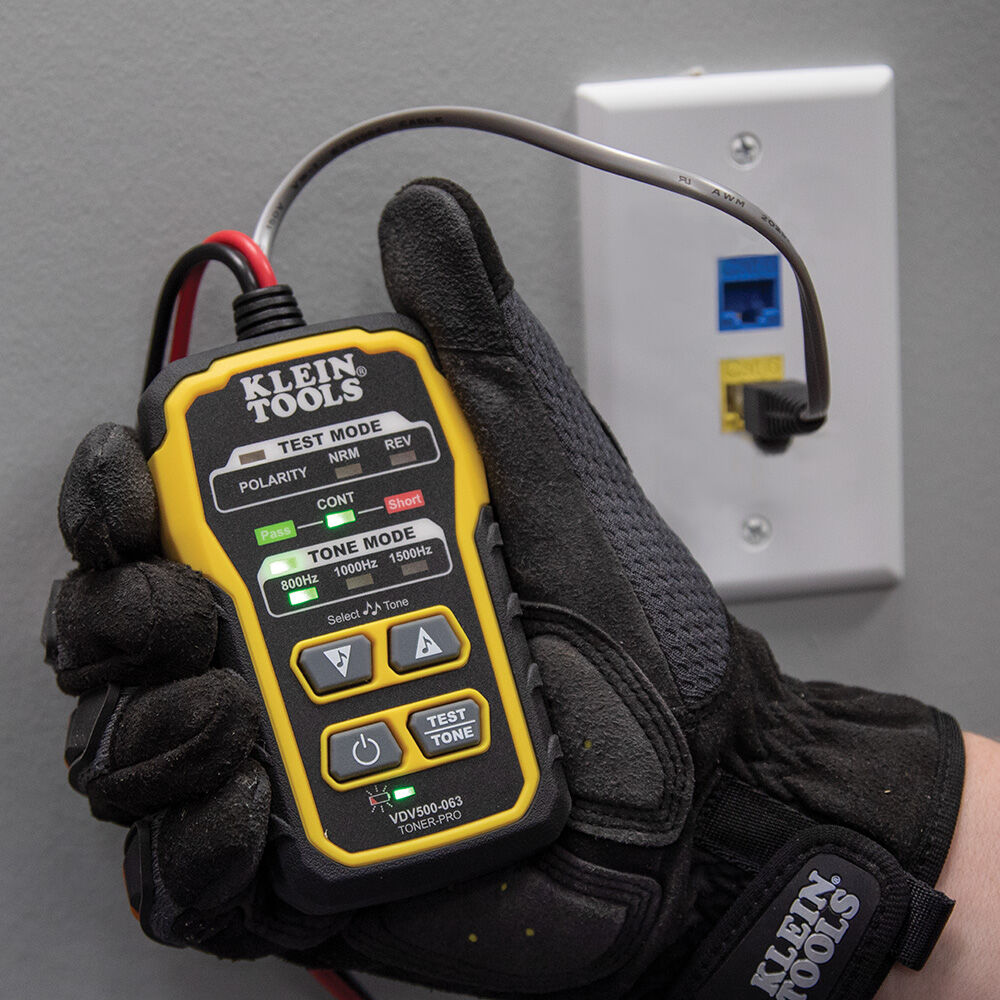

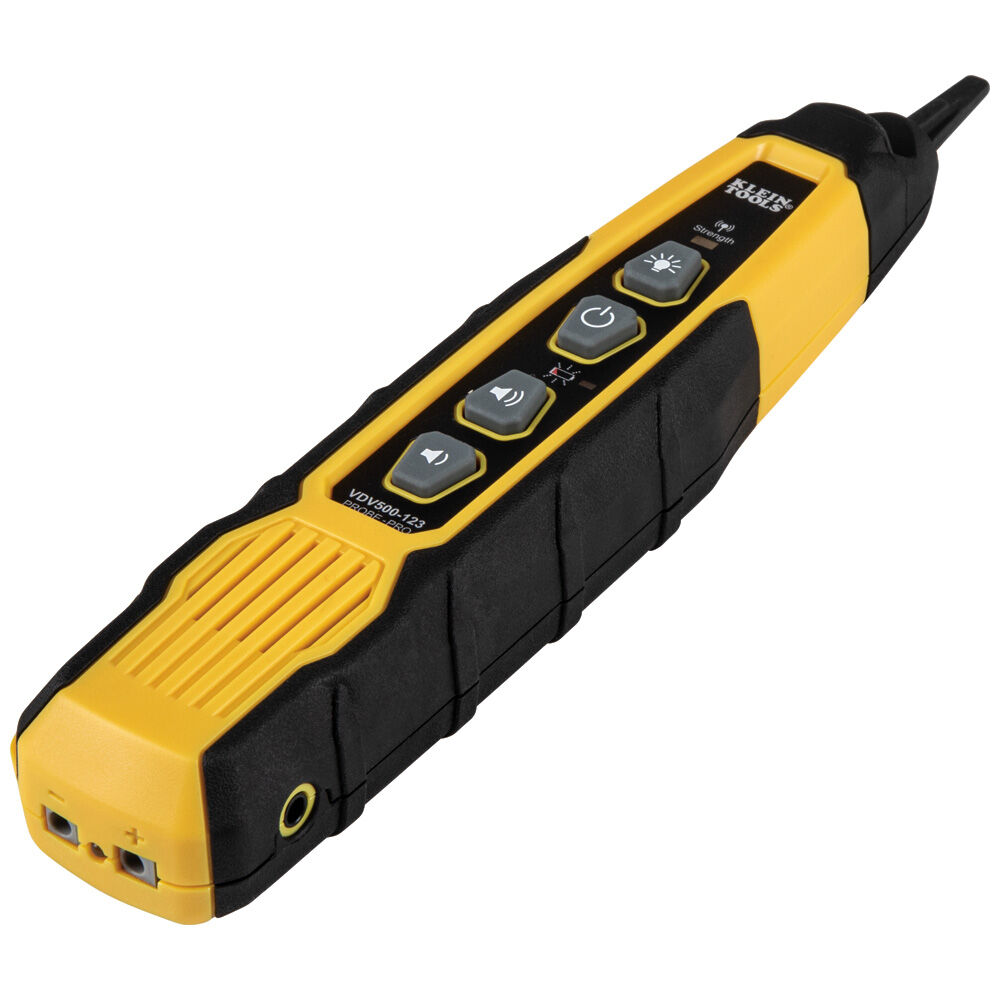

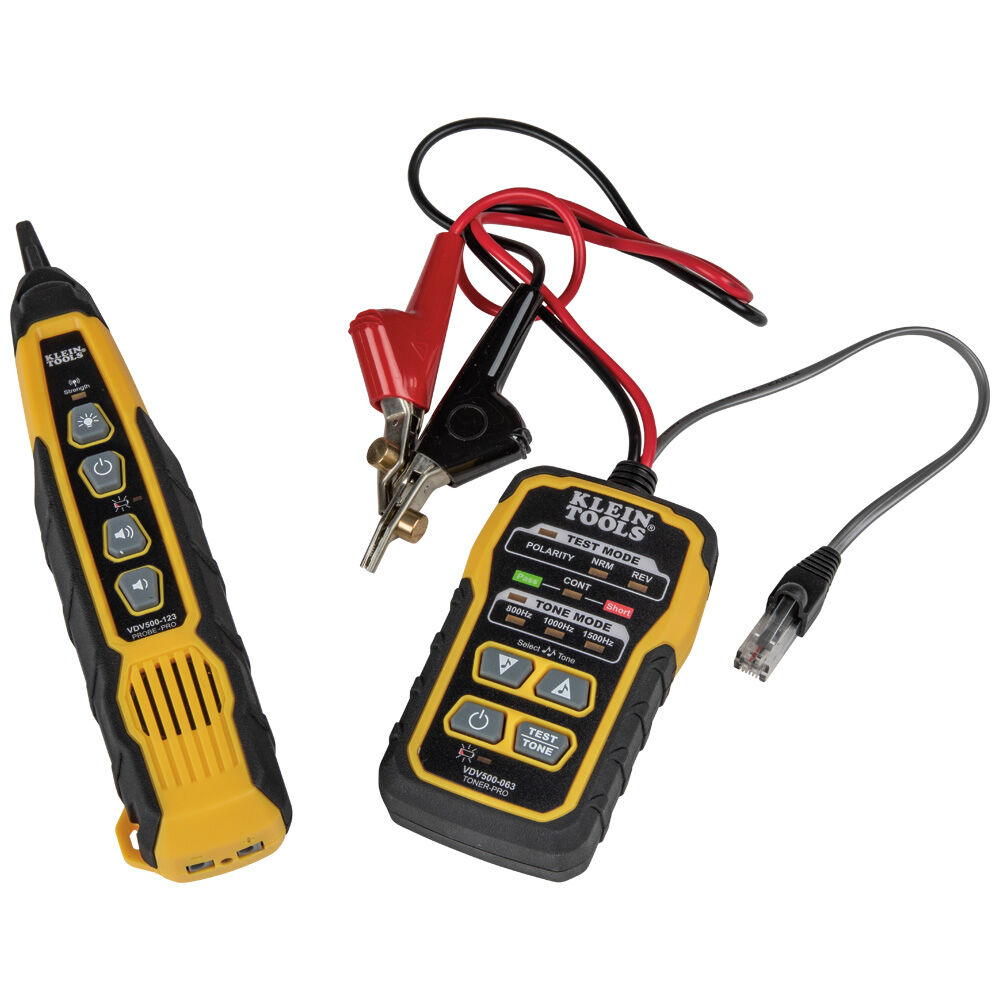

  • Complete Tracing Kit: Includes the Tone Generator PRO (VDV500-063) and the Probe PRO (VDV500-123), both engineered for accurate wire identification.

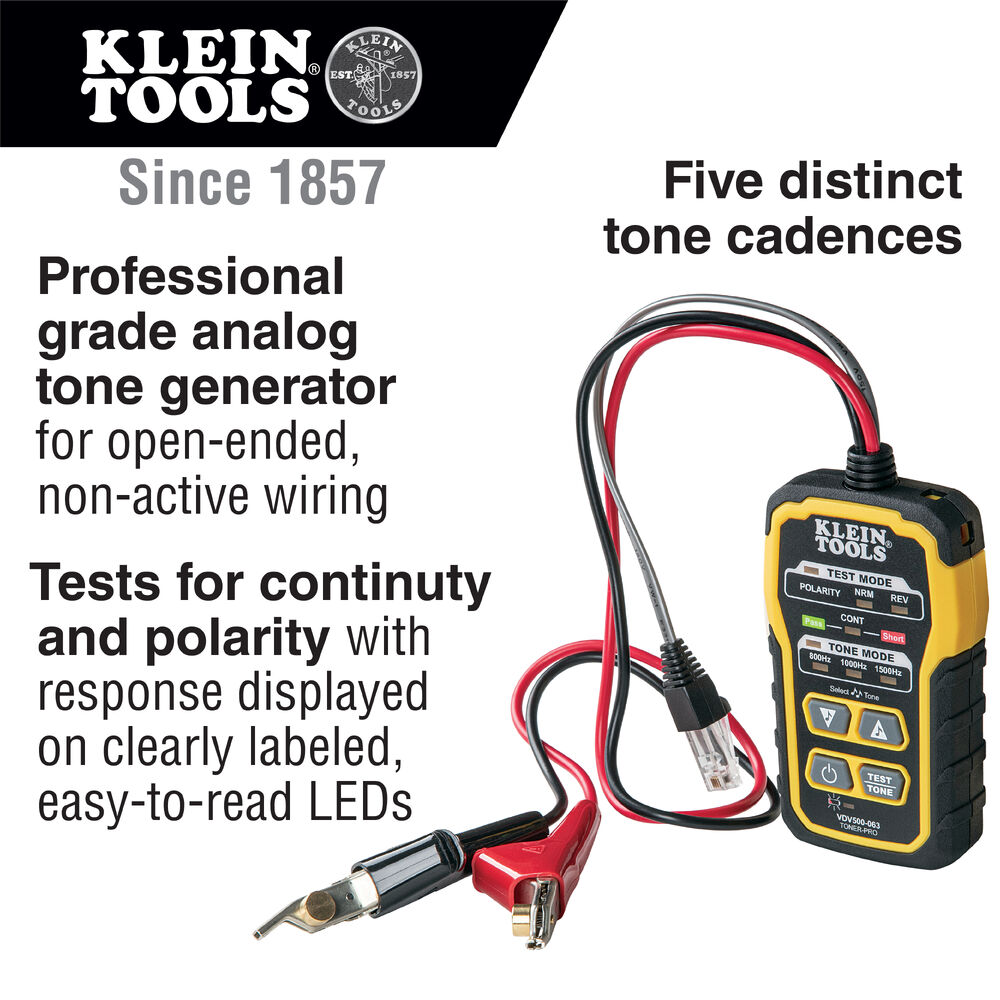

  • Powerful Toner with Multiple Signal Modes: The Tone Generator provides 5 distinct tone cadences and supports tone tracing up to 1,000 feet, making it suitable for large-scale cabling jobs.
  • Precision Probe Tip with Amplifier: High-sensitivity probe detects tone signals through drywall, wood, or bundles without interference, ensuring quick and accurate identification.
  • Visual and Audible Signal Indication: LED signal indicators and volume-adjustable audio feedback give clear, real-time confirmation of cable identification.

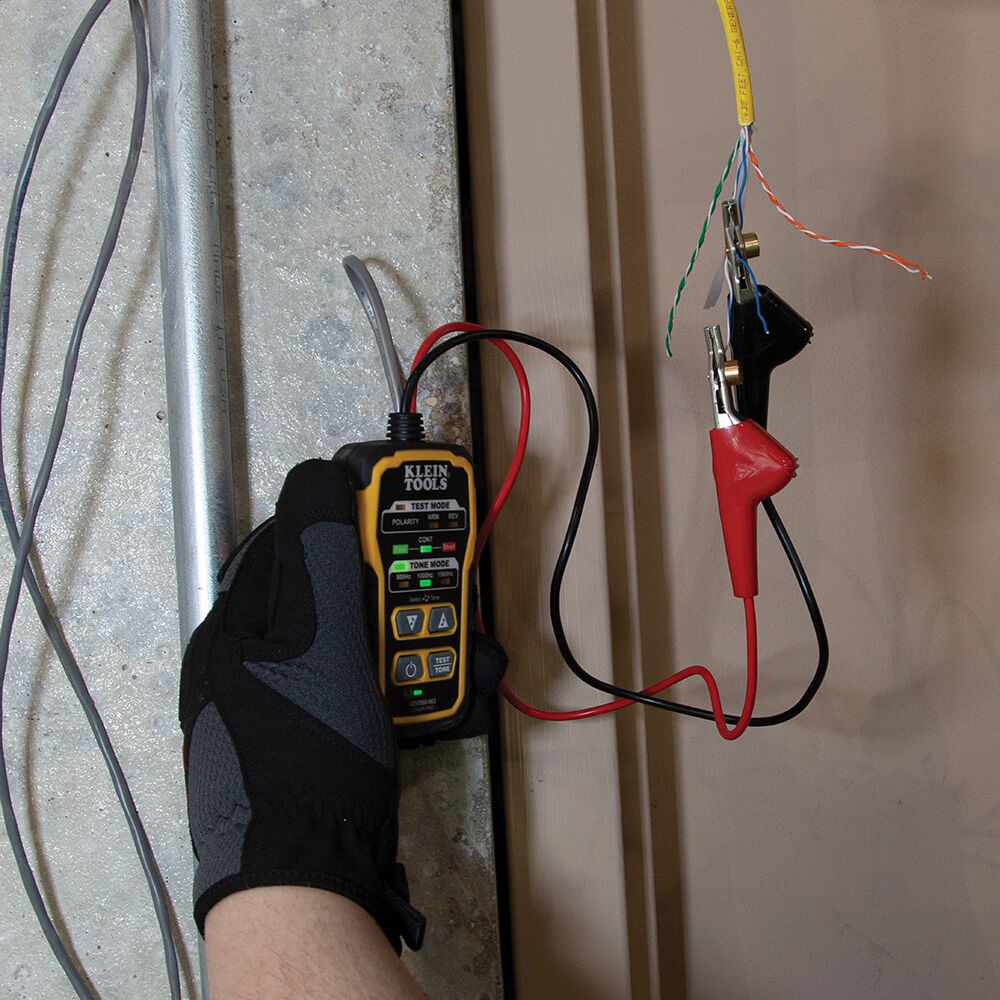

  • RJ11, RJ45 & Alligator Clip Leads: Compatible with telephone and network lines, as well as bare wires via alligator clips.

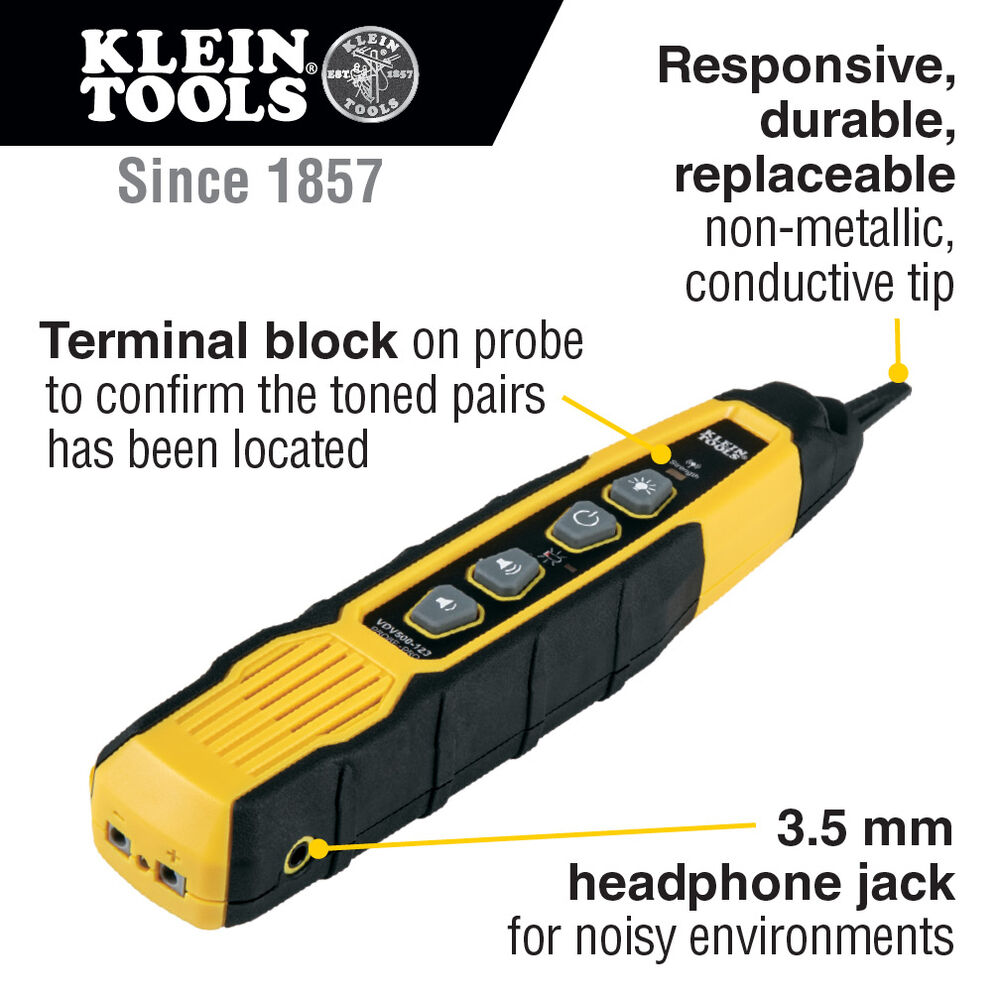

  • Headphone Jack for Noisy Environments: The Probe PRO includes a 3.5 mm headphone jack (headphones not included) for silent, focused operation.
  • Durable Carrying Pouch: Keeps your tone generator, probe, and leads neatly stored and protected for field use.

Specifications:

  • Model Number: VDV500-820

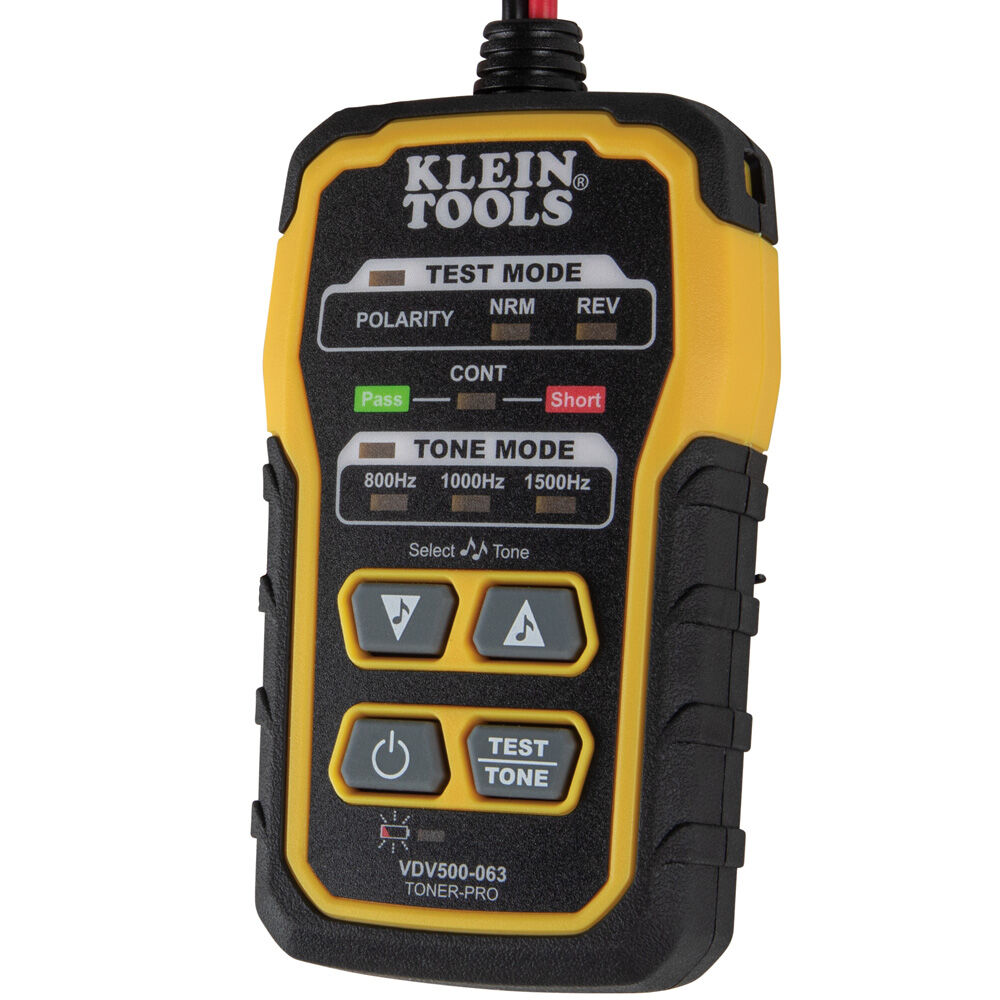

  • Tone Generator: 5 tone cadences, auto-off feature, low-battery LED indicator
  • Probe: High-sensitivity with LED and audio tone detection
  • Cable Compatibility: RJ11, RJ45, coax, and bare wires via alligator clips
  • Tracing Distance: Up to 1,000 ft (305 m)
  • Headphone Port: Yes (3.5 mm)
  • Batteries: Included (9V for tone generator, AAA for probe)
  • Pouch Dimensions: Compact zippered case for portability

Applications:

  • Data & Voice Cable Installations: Identify and trace specific cable pairs within structured cabling systems.
  • Security & Alarm Systems: Trace zone wiring or sensor loops for maintenance or expansion.
  • Electrical Troubleshooting: Quickly locate open or misrouted conductors in low-voltage wiring systems.
  • Field Service & Maintenance: Ideal for telecom techs, electricians, and IT professionals.

The Klein Tools VDV500-820 Tone & Probe PRO Kit is a must-have diagnostic tool for anyone installing or servicing voice, data, security, or low-voltage systems. With its powerful tone generator, sensitive probe, and included accessories, it delivers efficient, accurate cable identification every time.

Q: Can this tool trace live electrical wires?
A: No, it is not designed for tracing live wires. It should only be used on de-energized or low-voltage circuits.

Q: Does it support both RJ11 and RJ45 connectors?
A: Yes, it includes modular leads for RJ11 and RJ45, as well as alligator clips for direct wire connection.

Q: Can I use headphones with the probe?
A: Yes, the probe has a 3.5 mm jack to connect headphones, which is especially useful in noisy environments.

Q: How long is the tone signal effective for tracing?
A: The tone signal can be traced up to 1,000 ft (305 meters) depending on cable type and installation conditions.
