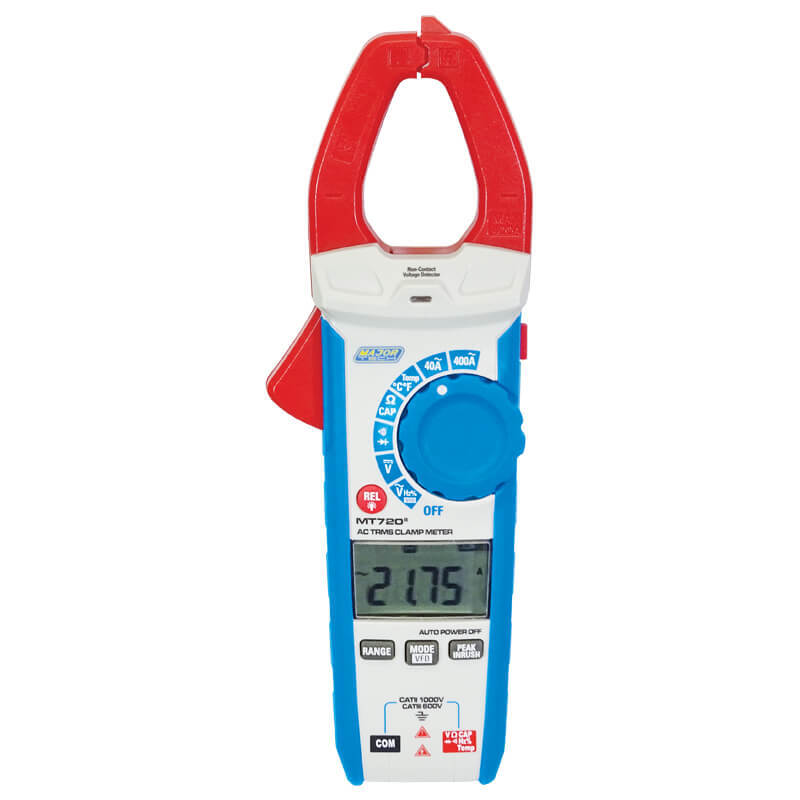

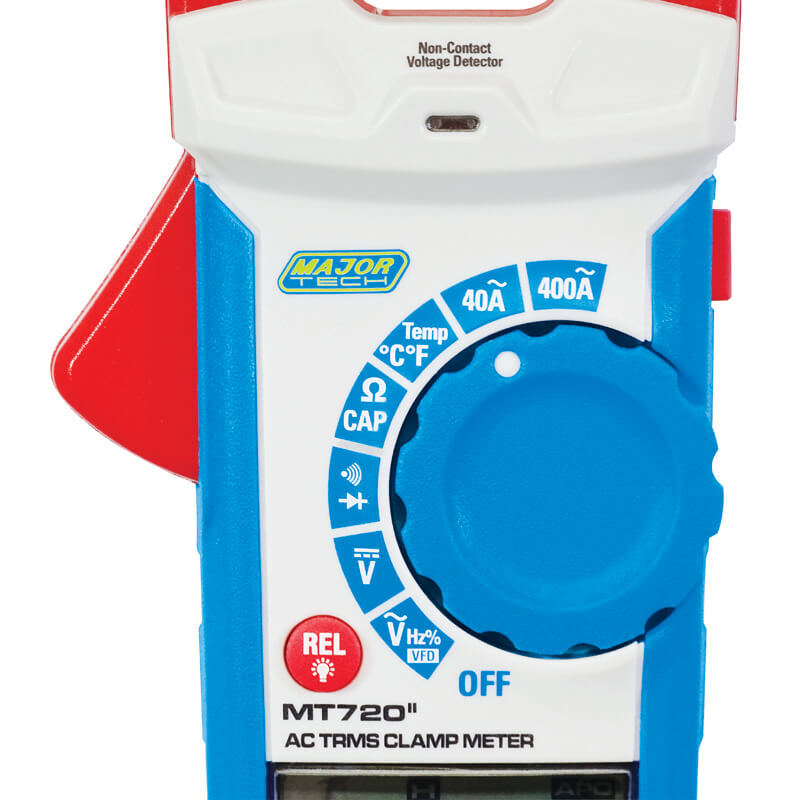

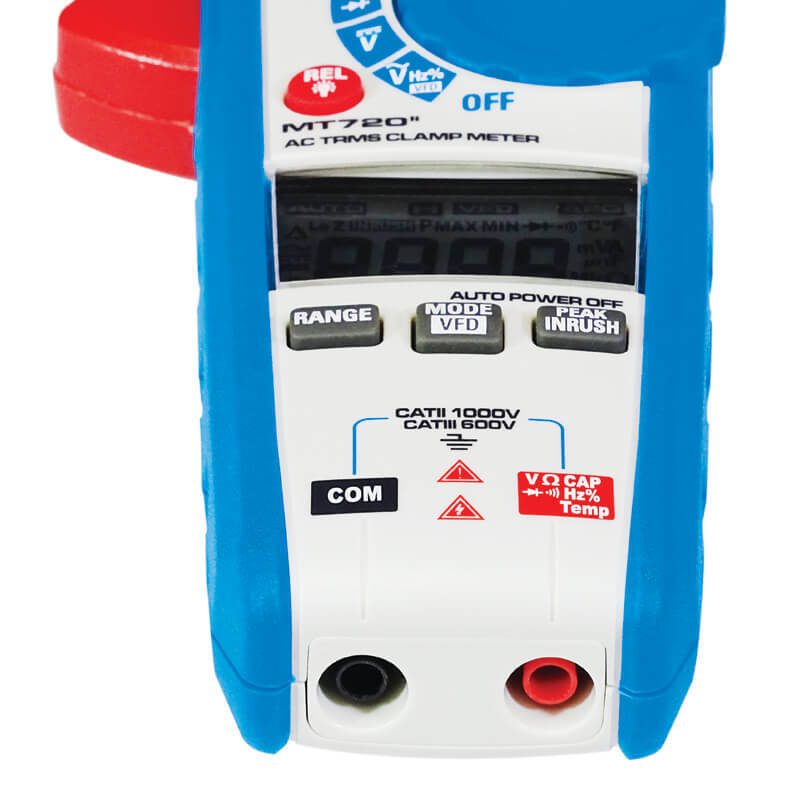

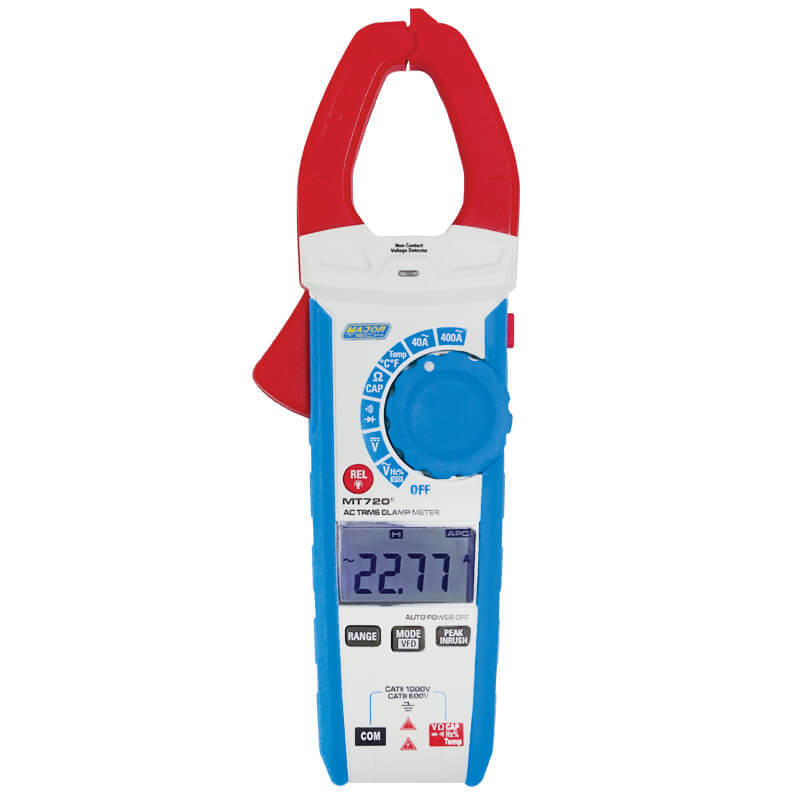

The MT720 is a CAT III 600V, 4000 count True RMS 400A AC digital clamp meter with indication on a large backlit LCD display, providing fast sampling time with high accuracy. The meter measures 1000V AC/DC, temperature, frequency , capacitance and resistance measurements, plus 100ms Inrush current and Peak Voltage value. The VFD function allows the user to measure stable voltage in high frequency applications of Variable Frequency Drives.

Added features include Relative mode for Capacitance Zero and DCV, ACV and ACA offset adjustment, Non-Contact voltage detection, Data hold function and a built-in flashlight for dimly lit areas. Housed in a modern double moulded rubber housing.

Features



  • CAT III 600V and CAT II 1000V
  • 4000 count backlit LCD display
  • AC and DC Voltage 1000V
  • AC Current 400A
  • Resistance 40Mꭥ
  • Frequency 100kHz
  • Capacitance 99.99mF

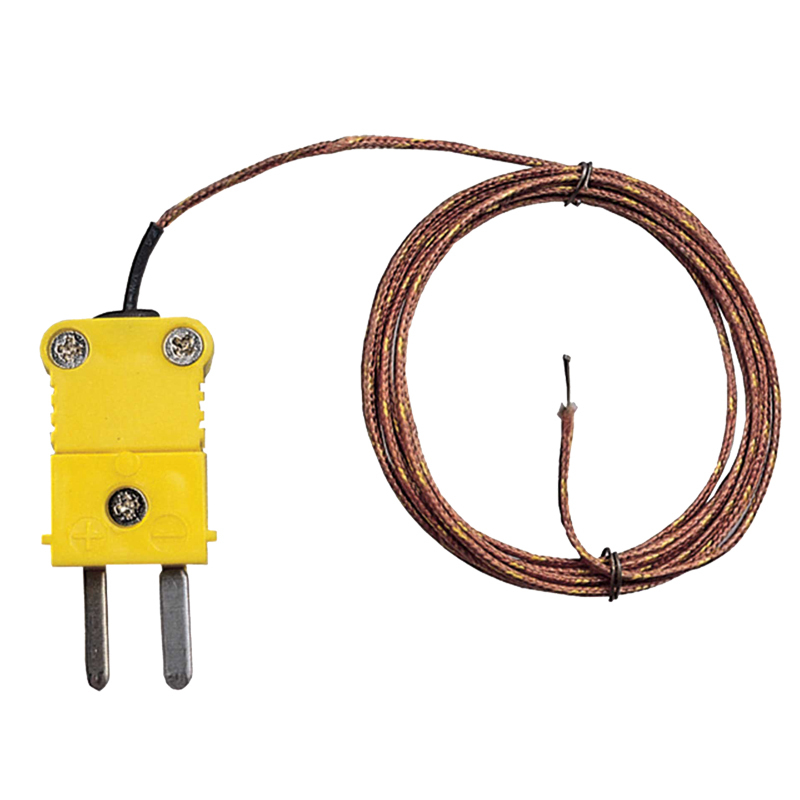

  • Temperate -20 to 1000˚C
  • Duty Cycle 80%
  • Ø30mm Cable Clamp size
  • INRUSH Current Measurements
  • VFD – Variable Frequency Drive voltage value
  • NCV – Non-Contact Voltage Detector

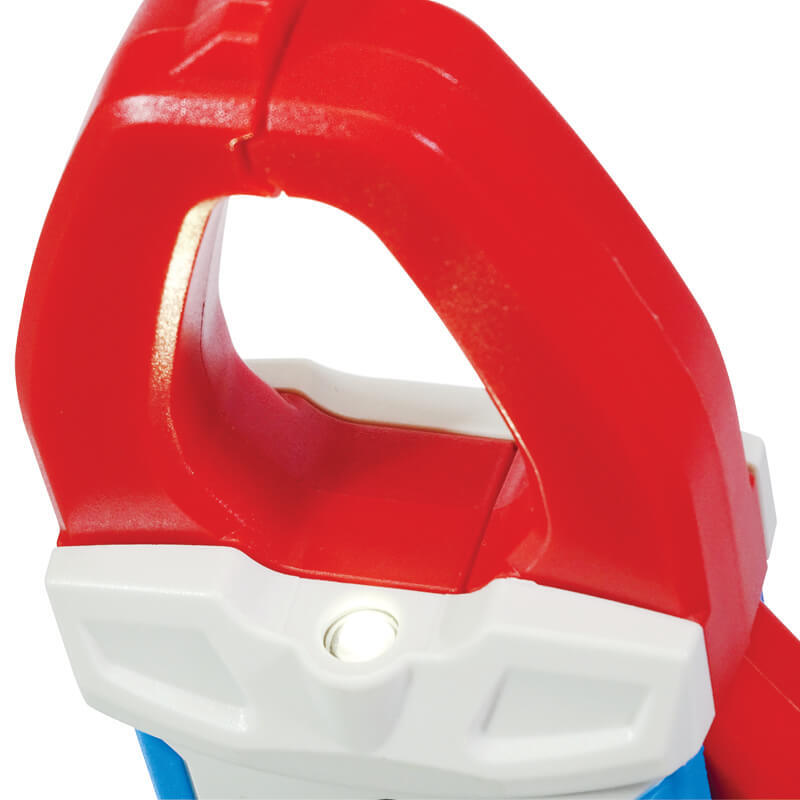

  • Built-In Flashlight
  • Continuity buzzer and Diode Test
  • Peak Mode and Data Hold function
  • Auto Power Off

All products must be installed by a licensed electrican. DIY electrical work is illegal and very dangerous.

Change of Mind
All products purchased from MJS Electrical Products & Supplies are backed by a thirty (30) day Peace of Mind Return Policy. All products returned must be in perfect unused condition, with all components, complete with original packaging. We will not allow returns on damaged or incomplete products. Proof of purchase is required. Should the product not be in original condition, please contact us before returning it as this may save you some unnecessary costs.

Damaged / Faulty Goods
If you find that the goods were damaged in transit or were faulty in some manner, please contact us within 24 hours of receiving the goods. We will organise for the return of the goods and arrange a credit towards your next purchase or send a replacement product. Customer will incur the cost of return postage and be credited the purchase price only. We recommend that you return your unwanted items using registered post or trackable courier. We can not be held responsible if returned items are lost in transit.

Warranties
Product warranties are governed by the respective manufacturers and / or suppliers warranty terms and conditions (available on request). We will not be liable to you or any third party for any loss suffered due to product failure. We will process product warranty claims through the respective manufacturers and/or suppliers. All warranties are void if the product is not installed by a licensed electrician.

PRODUCT INFO
SKU MT720
Model # MT720
Barcode # 6008229008009
Brand Major Tech
SHIPPING INFO
Shipping Weight 0.5100kg
Shipping Width 0.110m
Shipping Height 0.070m
Shipping Length 0.220m
