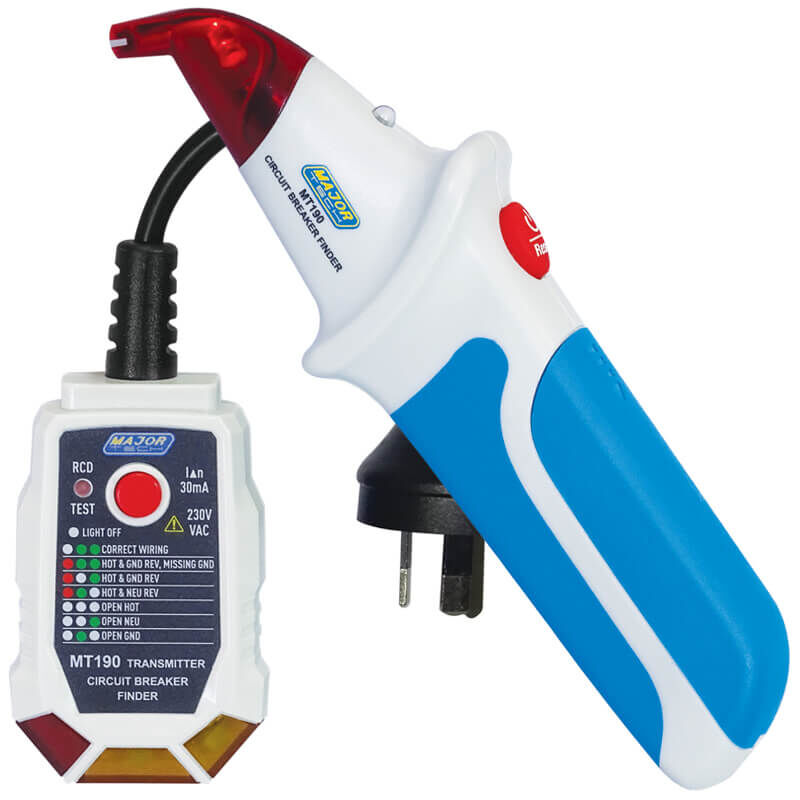

The MT190 Circuit Breaker Finder by Major Tech is an advanced tool designed for electricians and maintenance professionals to accurately locate circuit breakers and fuses on live electrical circuits. The unit consists of a Transmitter which plugs into the socket on the circuit you wish to isolate and a Receiver Scanner. The Transmitter sends signals along the cable to the distribution board, the operator simply runs the Receiver Scanner along the circuit breakers or fuses, and the scanner will automatically identify the correct breaker by means of a green LED and a continuous buzzer tone.

Key Features:

  • Automatic Scanning Technology: Quickly and accurately identifies circuit breakers and fuses, minimizing the time spent on electrical troubleshooting.
  • Self-Calibrating Microprocessor: Ensures precise and reliable operation without manual adjustments.
  • Operates on 230V AC Circuits: Designed for 200-240V AC, 50Hz electrical systems, making it suitable for residential and commercial applications.
  • Built-in 30mA RCD (ELCB) Test Function: Tests residual current devices (RCDs) to verify their functionality, enhancing safety compliance.

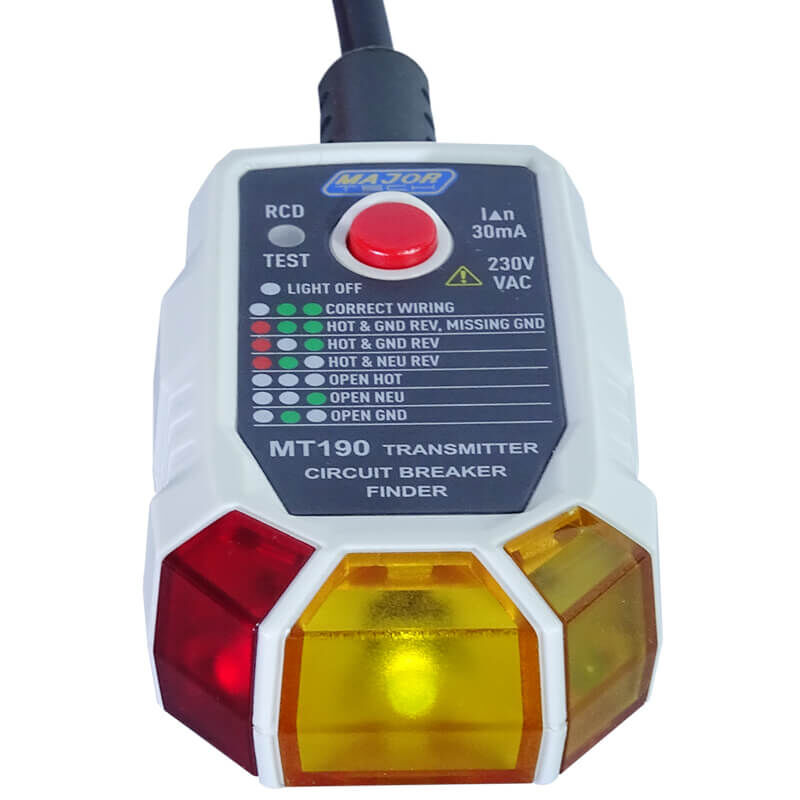

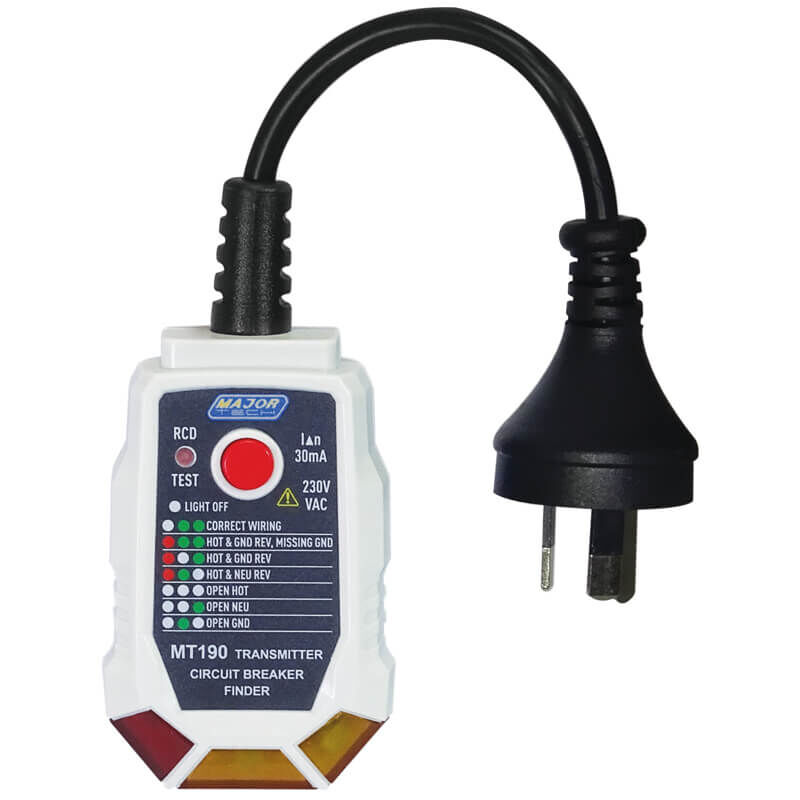

  • Wiring Condition Indicator: The transmitter includes an LED display that helps diagnose socket wiring issues, including:
    • Correct Wiring
    • Open Ground
    • Reverse Polarity
    • Open Live
    • Open Neutral
    • Reverse Live and Ground

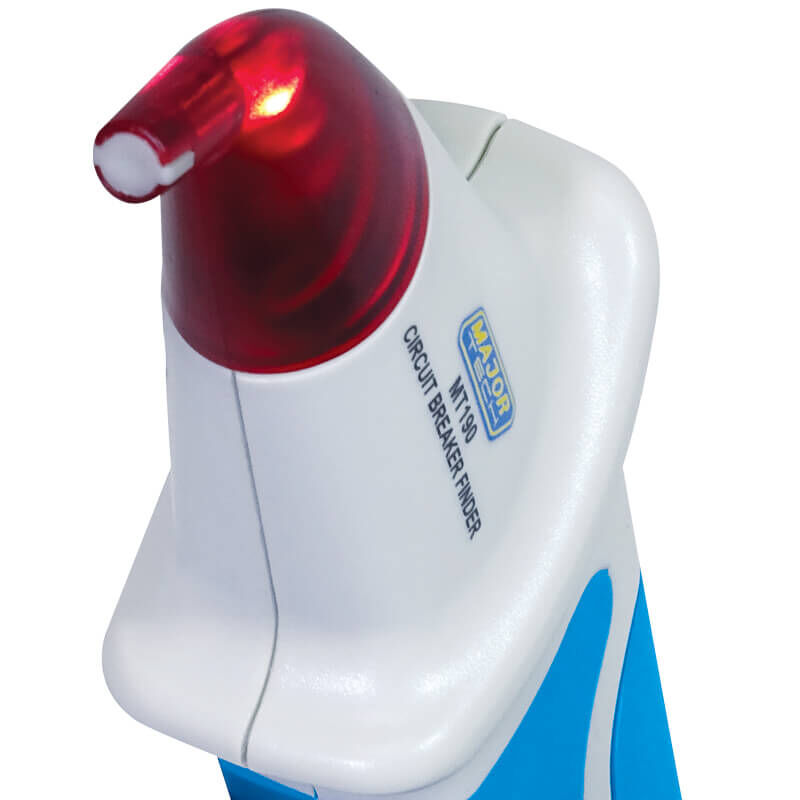

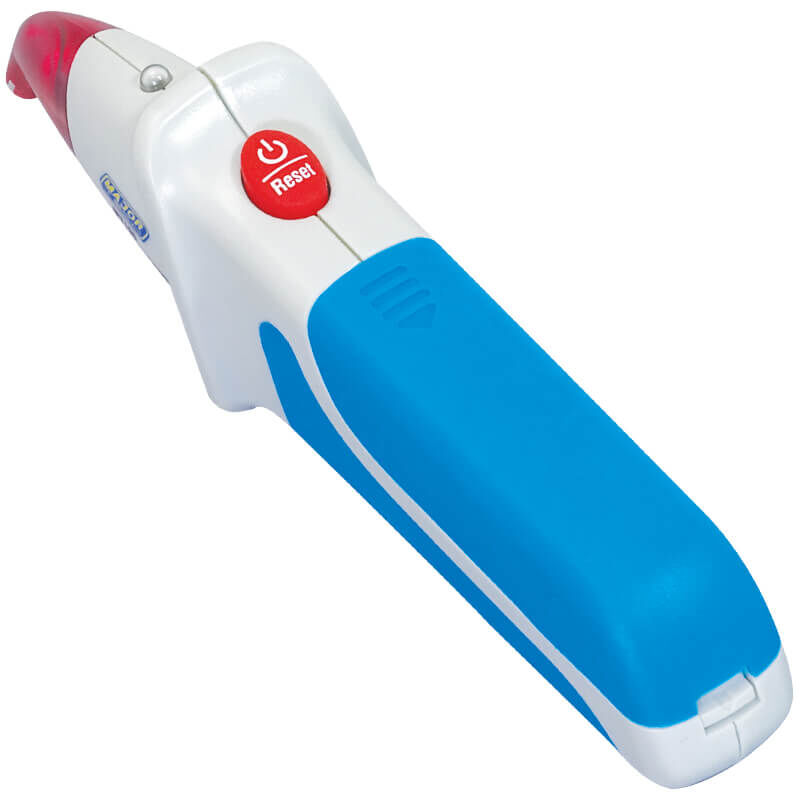

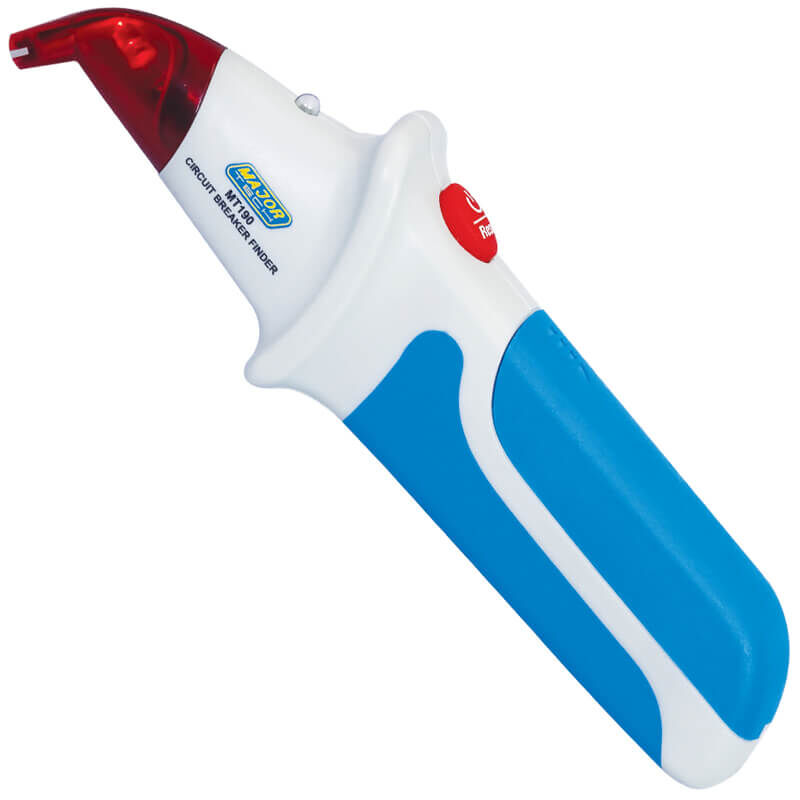

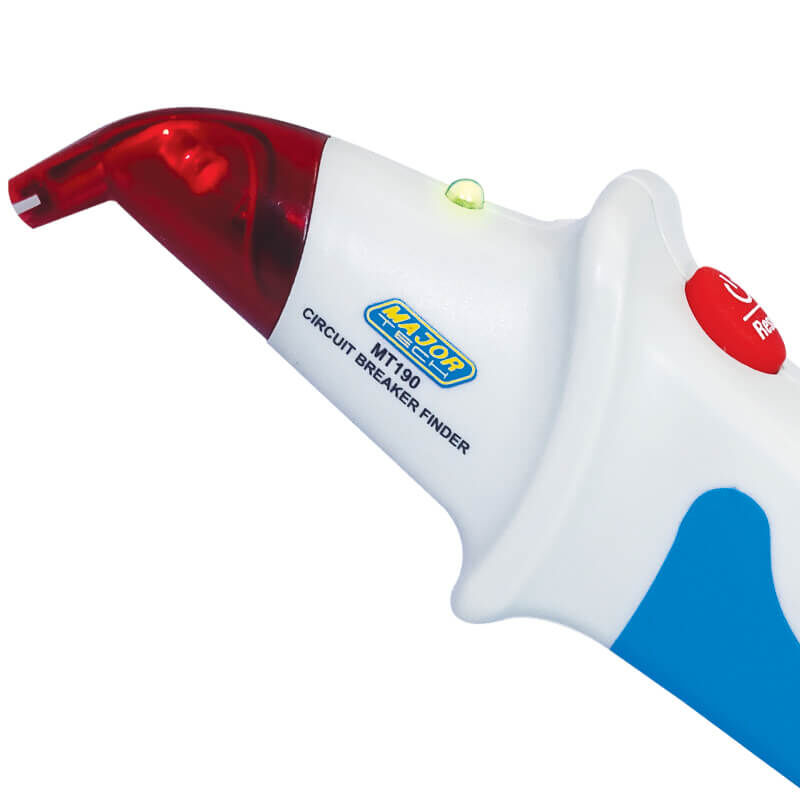

  • Visual and Audible Indicators: The receiver scanner provides a green LED indicator and a continuous buzzer tone when the correct breaker is identified.
  • Compact and Lightweight: The receiver measures 196 x 55 x 36mm and weighs only 148g, making it highly portable.

Specifications:

  • Voltage Range: 200-240V AC, 50Hz
  • RCD Trip Test: 30mA
  • Safety Specs: CAT III 600V

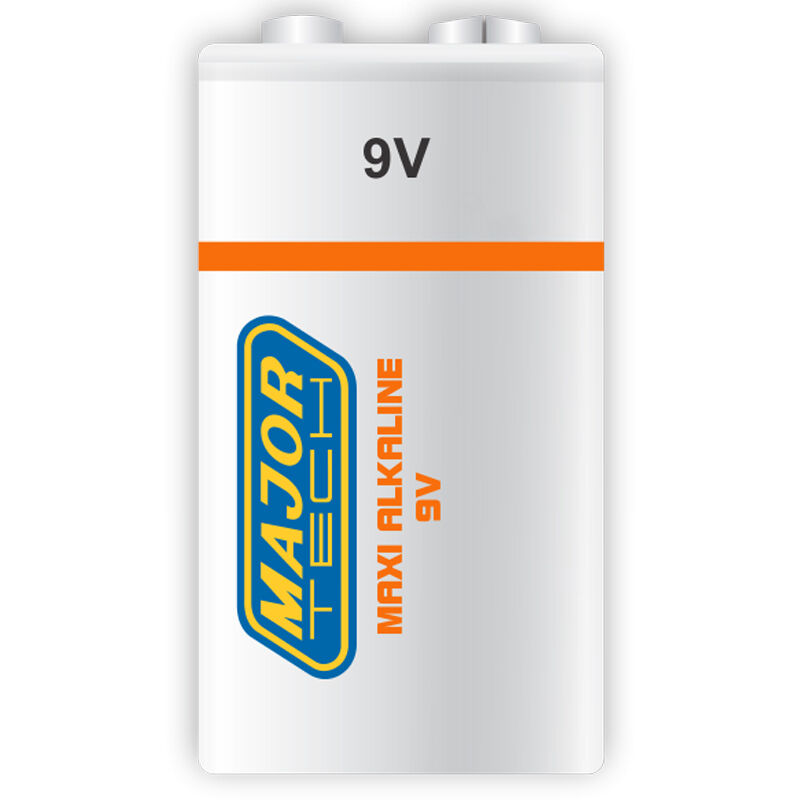

  • Battery: 9V (Included)

Applications:

  • Circuit Breaker Identification: Easily find and label circuit breakers and fuses without trial and error.
  • Electrical Maintenance and Safety Testing: Ideal for electricians working in residential, commercial, and industrial settings.
  • Wiring Diagnostics: The transmitter helps detect wiring faults before installation or maintenance work.
  • Testing RCD (Residual Current Devices): Ensures proper operation of safety switches, reducing the risk of electric shocks.

The MT190 Circuit Breaker Finder is an essential tool for any professional electrician, providing fast, accurate, and safe identification of circuit breakers, diagnostic wiring checks, and RCD testing, ensuring compliance with electrical safety standards.

Q: Can the MT190 Circuit Breaker Finder be used on de-energized circuits?
A: No, the MT190 is designed for live circuits (200-240V AC, 50Hz) and will not function on de-energized electrical systems.

Q: Does the MT190 require manual calibration?
A: No, the self-calibrating microprocessor ensures accurate operation without the need for manual adjustments.

Q: How does the RCD test function work?
A: The 30mA RCD test function in the transmitter simulates a fault current to check whether the residual current device (RCD) trips as expected, verifying its proper operation.

Q: What happens if the socket wiring is incorrect?
A: The built-in LED indicators on the transmitter display different wiring fault conditions, helping the user diagnose issues before proceeding with any electrical work.
