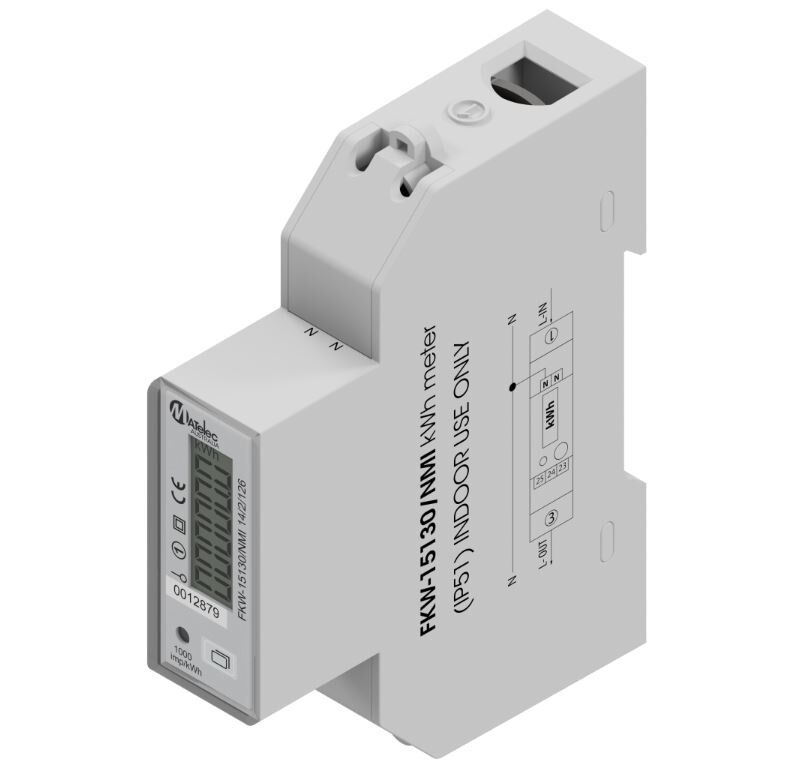

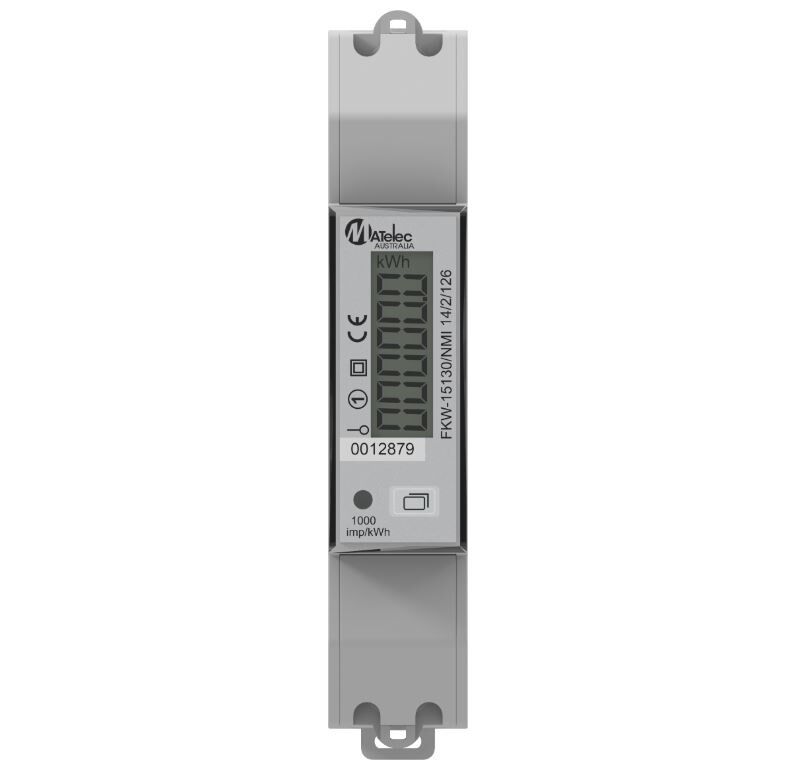

MATelec FKW-15130/NMI Single Phase KWH Meter – NMI Approved

The FKW-15130/NMI Single Phase KWH Meter is a compact, reliable, and versatile energy metering solution, designed for residential, commercial, and solar applications. With its slimline DIN rail mount design, NMI approval for billing, and advanced features, this meter ensures accurate energy monitoring for efficient power management.

Key Features

  • NMI Approved: Fully certified for billing applications, ensuring compliance with Australian standards.
  • Slimline Design: Space-saving DIN rail mount, ideal for installations with limited space.
  • Solar Compatibility: Perfect for monitoring energy consumption in solar-powered setups.
  • Digital LCD Display: Backlit blue LCD provides clear and easy-to-read energy data.
  • Tamper Seal Kit Included: Ensures meter security and prevents unauthorized access.

Specifications

  • Housing Material: Fire-resistant ABS
  • Weatherproof Rating: IP51
  • Accuracy Class: Class 1
  • Insulation Class: Class 2
  • Maximum Rated Current: 100 Amp
  • Operational Current Range: 0.25 - 100 Amp
  • Overcurrent Withstand: 1000 Amp for 0.1 second
  • Nominal Voltage: 230 Vac
  • Operating Frequency: 50 - 60 Hz
  • Maximum Cable Capacity: 25mm² (neutral: 2.5mm²)
  • Operating Temperature: -20°C to 65°C
  • Test Output Flash Rate: 1000 impulses per kWh
  • Dimensions: 90mm (H) x 18mm (W) x 72mm (D)
  • Warranty: 1 year

Applications

  • Residential: Track and monitor energy usage for accurate billing and cost control.
  • Commercial: Manage energy consumption in offices, retail spaces, and industrial units.
  • Solar Systems: Ideal for solar installations to monitor generated and consumed energy.

The FKW-15130/NMI Single Phase KWH Meter combines reliability, accuracy, and versatility, making it the perfect choice for managing energy usage in residential, commercial, and solar applications. Ensure precise power monitoring with this state-of-the-art energy meter today!

Q: Is this meter approved for billing purposes?
A: Yes, the FKW-15130/NMI is NMI approved, making it suitable for official billing applications in Australia.

Q: Can this meter be used for solar installations?
A: Absolutely! It is solar compatible and designed to monitor energy in both standard and solar-powered setups.

Q: What is the maximum cable capacity for this meter?
A: The meter supports a maximum cable capacity of 25mm² for live wires and 2.5mm² for the neutral wire.

All products must be installed by a licensed electrican. DIY electrical work is illegal and very dangerous.

Change of Mind
All products purchased from MJS Electrical Products & Supplies are backed by a thirty (30) day Peace of Mind Return Policy. All products returned must be in perfect unused condition, with all components, complete with original packaging. We will not allow returns on damaged or incomplete products. Proof of purchase is required. Should the product not be in original condition, please contact us before returning it as this may save you some unnecessary costs.

Damaged / Faulty Goods
If you find that the goods were damaged in transit or were faulty in some manner, please contact us within 24 hours of receiving the goods. We will organise for the return of the goods and arrange a credit towards your next purchase or send a replacement product. Customer will incur the cost of return postage and be credited the purchase price only. We recommend that you return your unwanted items using registered post or trackable courier. We can not be held responsible if returned items are lost in transit.

Warranties
Product warranties are governed by the respective manufacturers and / or suppliers warranty terms and conditions (available on request). We will not be liable to you or any third party for any loss suffered due to product failure. We will process product warranty claims through the respective manufacturers and/or suppliers. All warranties are void if the product is not installed by a licensed electrician.

Report/Certification Number Date Issued
UL, LLC test report reference no. R11456868-NMI (NMI M6-1) 27 - 07 - 2017
NMI M6 Clause A.2.16 Short Term Overcurrent Test C, Ref PL1545-R1 19 - 04 - 2017
National Measurement Institute CoA NMI 14/2/100 04 - 10 - 2017
IEC Test Report IEC62053-21:2003, IEC 62053-11:2003, SICEM Ref WJ14297 (IEC 62053-21:2003 and IEC 62052-11:2003) 12 - 12 - 2014
PRODUCT INFO
SKU FKW15130NMI
Model # FKW15110/NMI
Barcode # 9338999010276
Brand Matelec
SHIPPING INFO
Shipping Weight 0.1000kg
Shipping Width 0.090m
Shipping Height 0.040m
Shipping Length 0.150m
