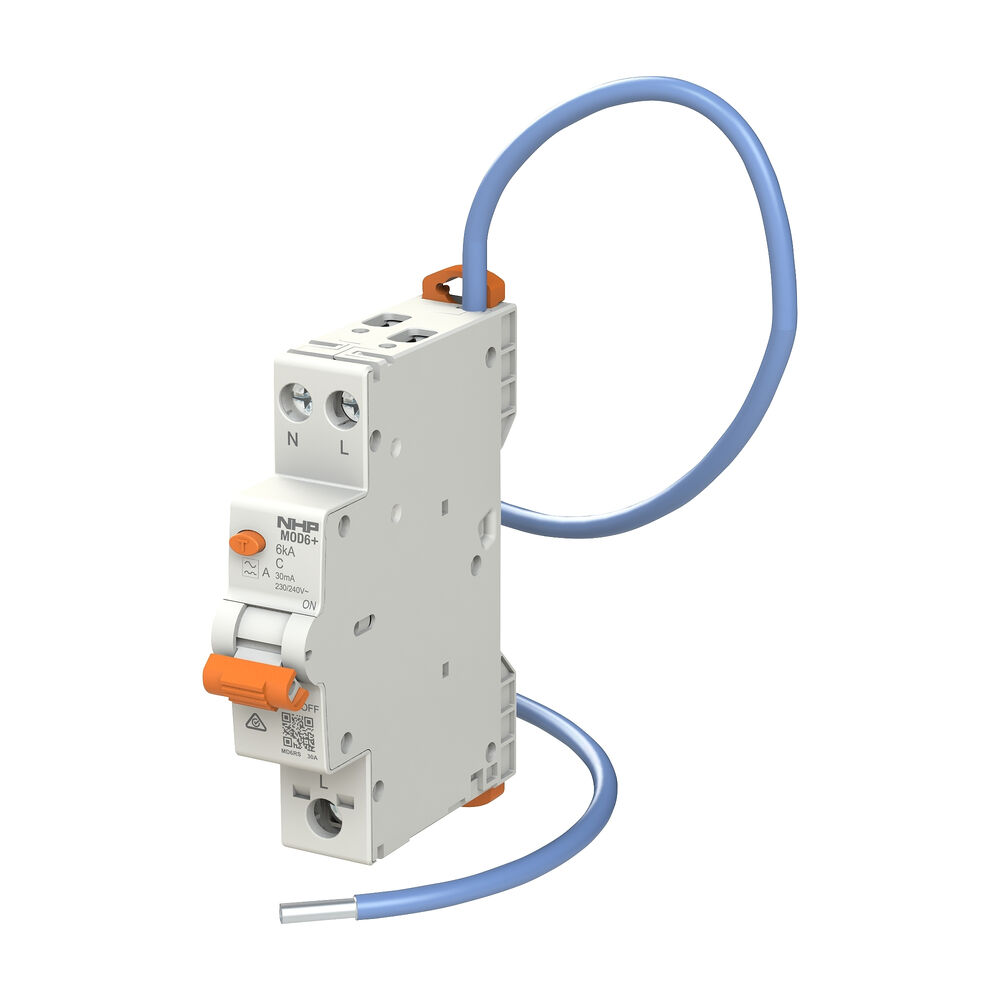

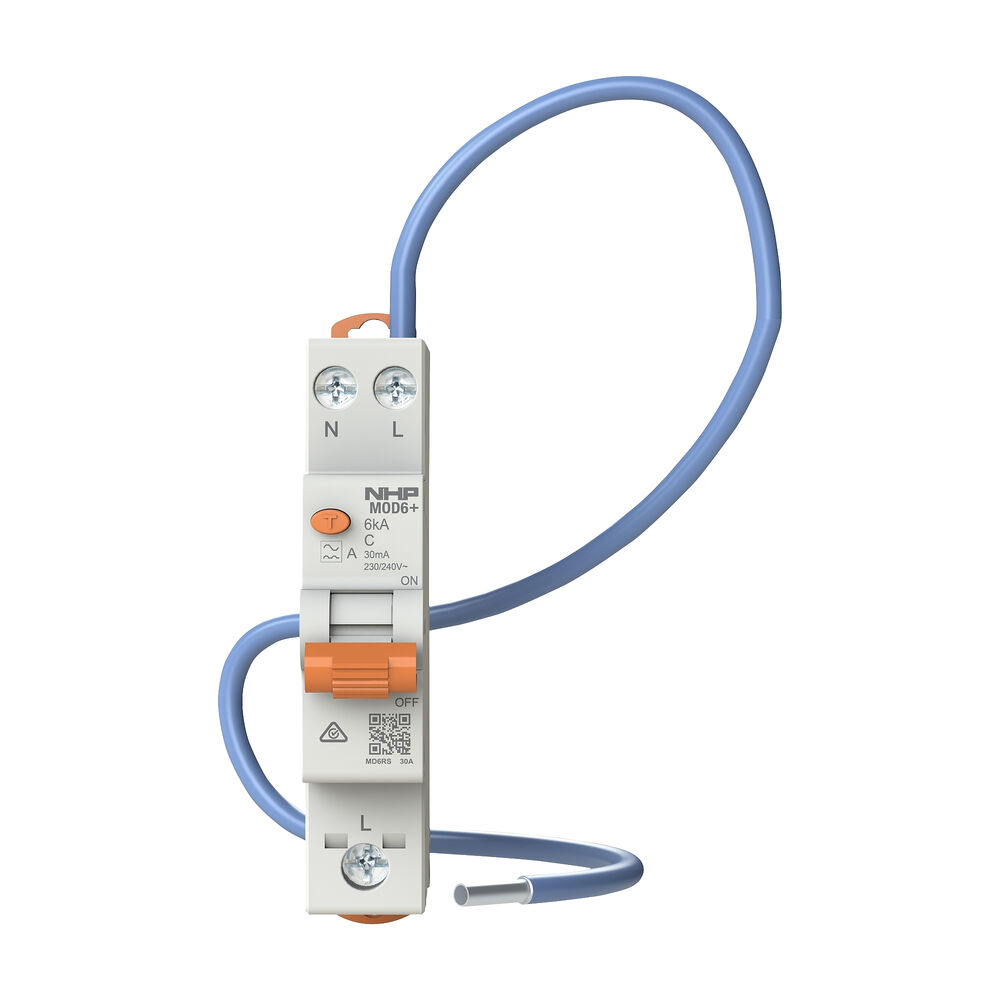

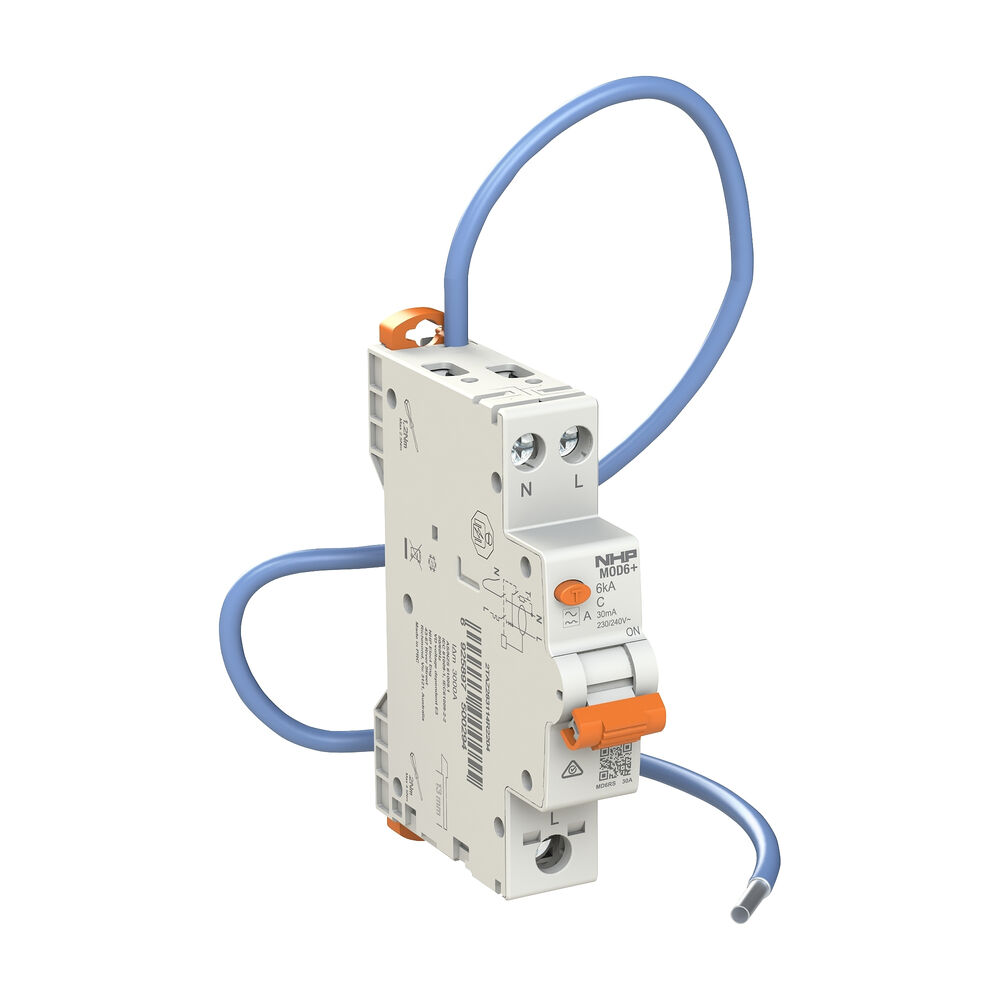

The NHP MOD6+ RCBO (MD6RS 30A) is a high-quality residual current breaker with overcurrent protection, designed for domestic, commercial, and light industrial installations. Featuring a 6kA short-circuit rating, 30mA earth leakage protection, and a neutral tail (pigtail) for easy installation, this compact device provides both overload and earth leakage protection in a single 18mm DIN-mounted module.

Key Features:

  • Combined RCD and MCB Protection: Protects against short circuits, overloads, and earth leakage faults, providing complete circuit protection.
  • 6kA Breaking Capacity: Suitable for installations requiring a 6,000A short-circuit withstand, meeting Australian standards.
  • Type A Leakage Protection: Detects both AC and pulsating DC residual currents for enhanced safety across a wider range of electrical loads.
  • C Curve Trip Characteristic: Ideal for general-purpose applications, handling inrush currents typically found in lighting, small motors, and general appliances.

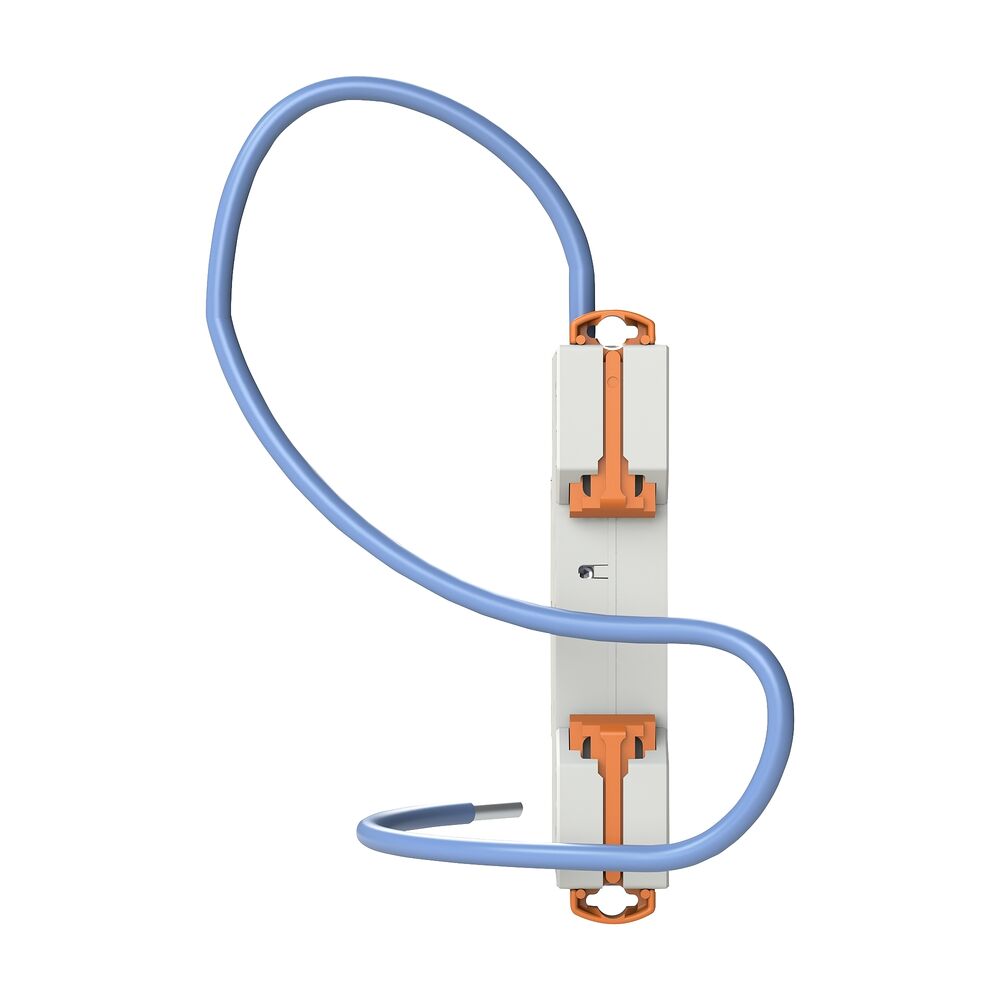

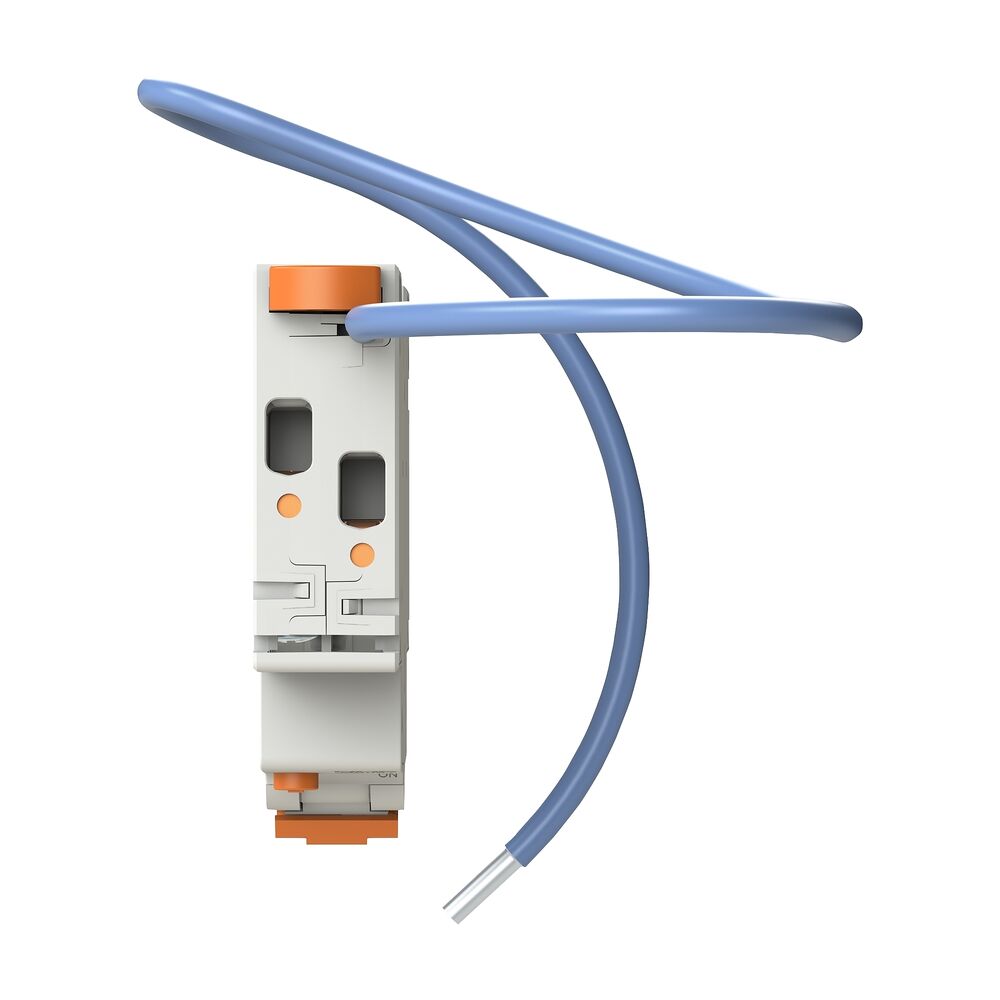

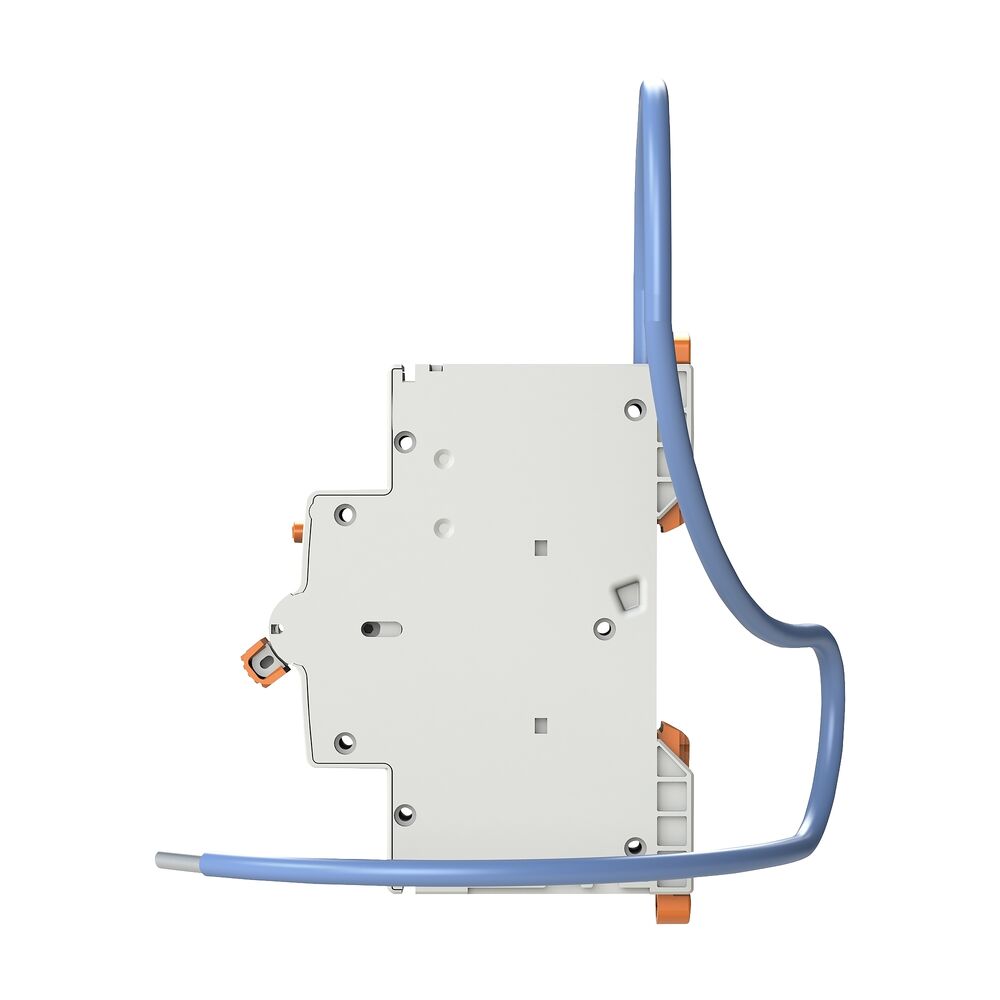

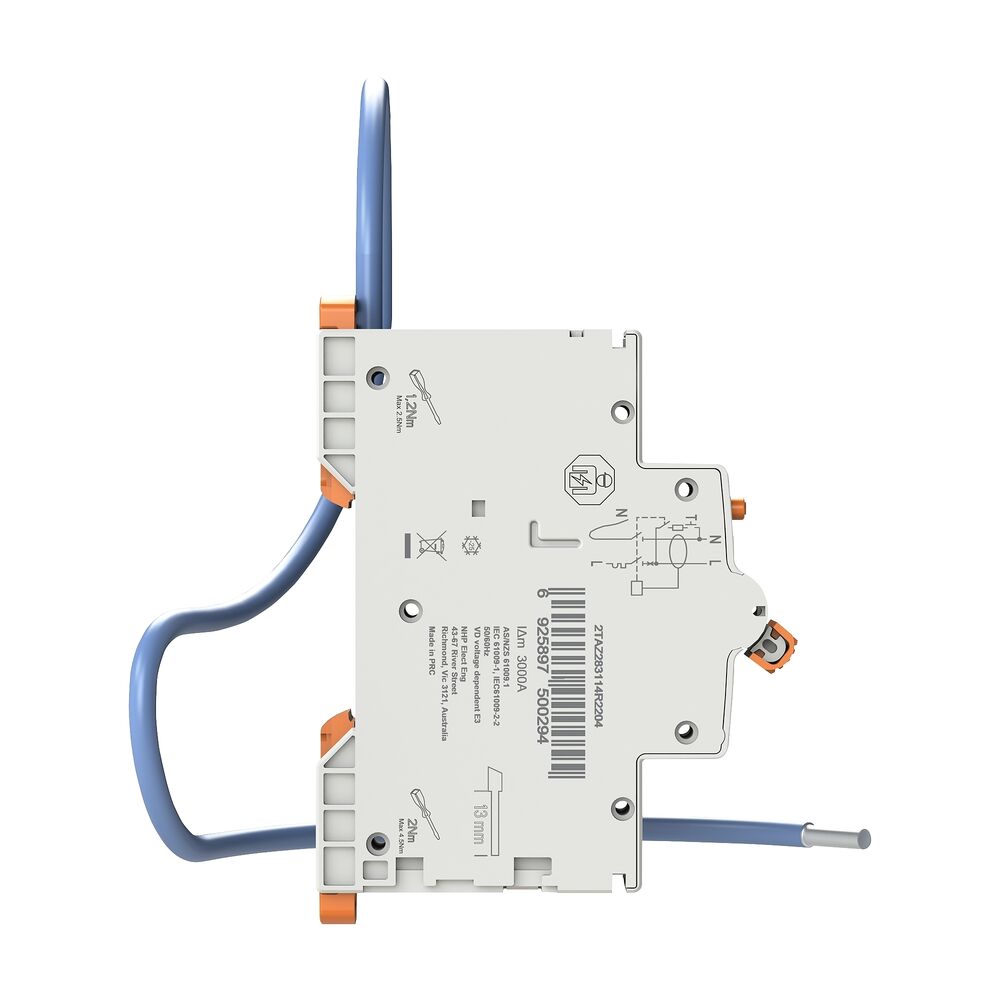

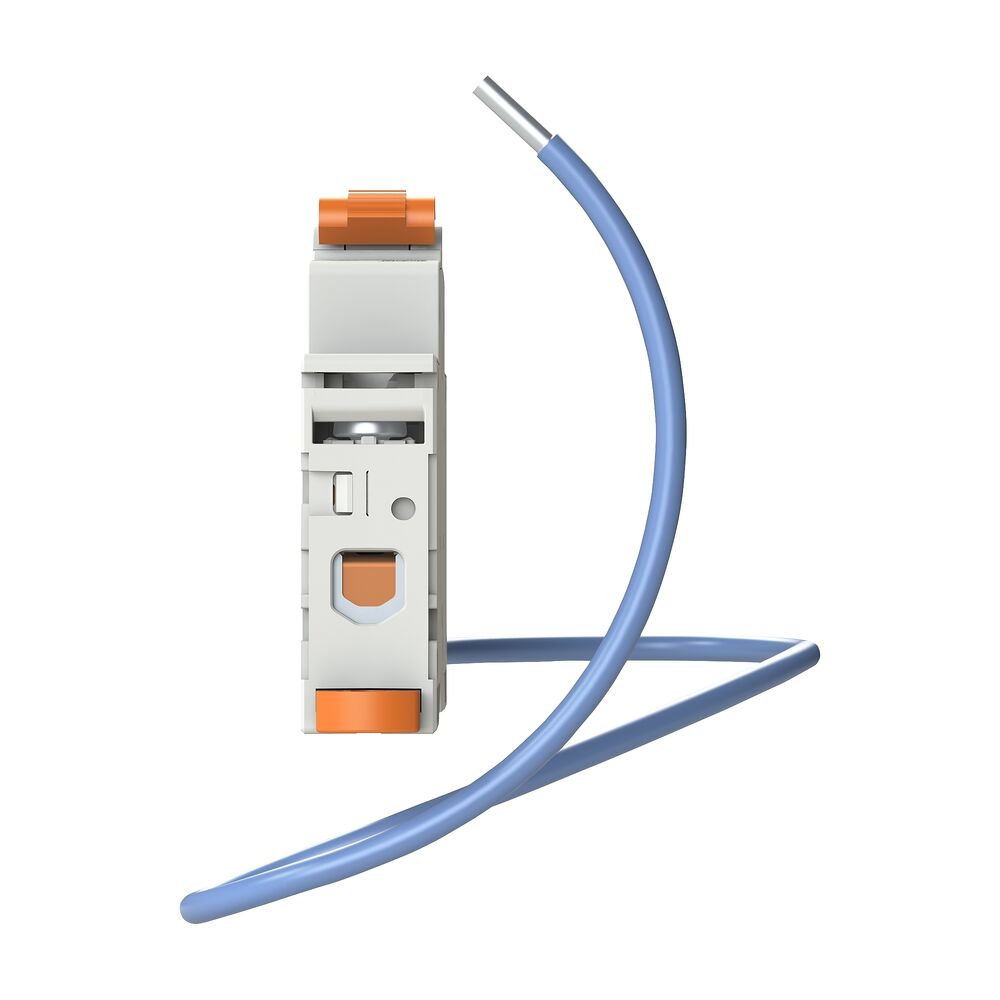

  • Switched Neutral with Pigtail Tail: Includes a pre-wired 1-pole + switched neutral configuration with neutral tail, simplifying wiring and reducing installation time.
  • Compact 18mm Width: Saves valuable space in crowded switchboards, ideal for modern distribution boards.
  • Extended Mechanical and Electrical Life:
    • Mechanical life: 20,000 cycles
    • Electrical life: 10,000 cycles
  • DIN Rail Mounted: Quick and secure mounting into standard DIN rail switchboards.

Specifications:

  • Model: MD6RS 30A
  • Available in Rated Current: 6A, 10A, 16A, 20A, 25A, 32A
  • Rated Voltage: 240V AC
  • Rated Leakage Current: 30mA
  • Frequency: 50/60Hz
  • Breaking Capacity: 6kA (AS/NZS 61009 compliant)
  • Trip Curve: C Curve
  • Leakage Type: Type A
  • Impulse Withstand Voltage (Uimp): 4kV
  • Rated Insulation Voltage (Ui): 500V
  • Neutral Switching: Yes (with neutral tail)
  • IP Rating: IP40 (when installed)
  • Terminal Capacity:
    • Solid-core: 1–25mm²
    • Multi-wired: 1–16mm²

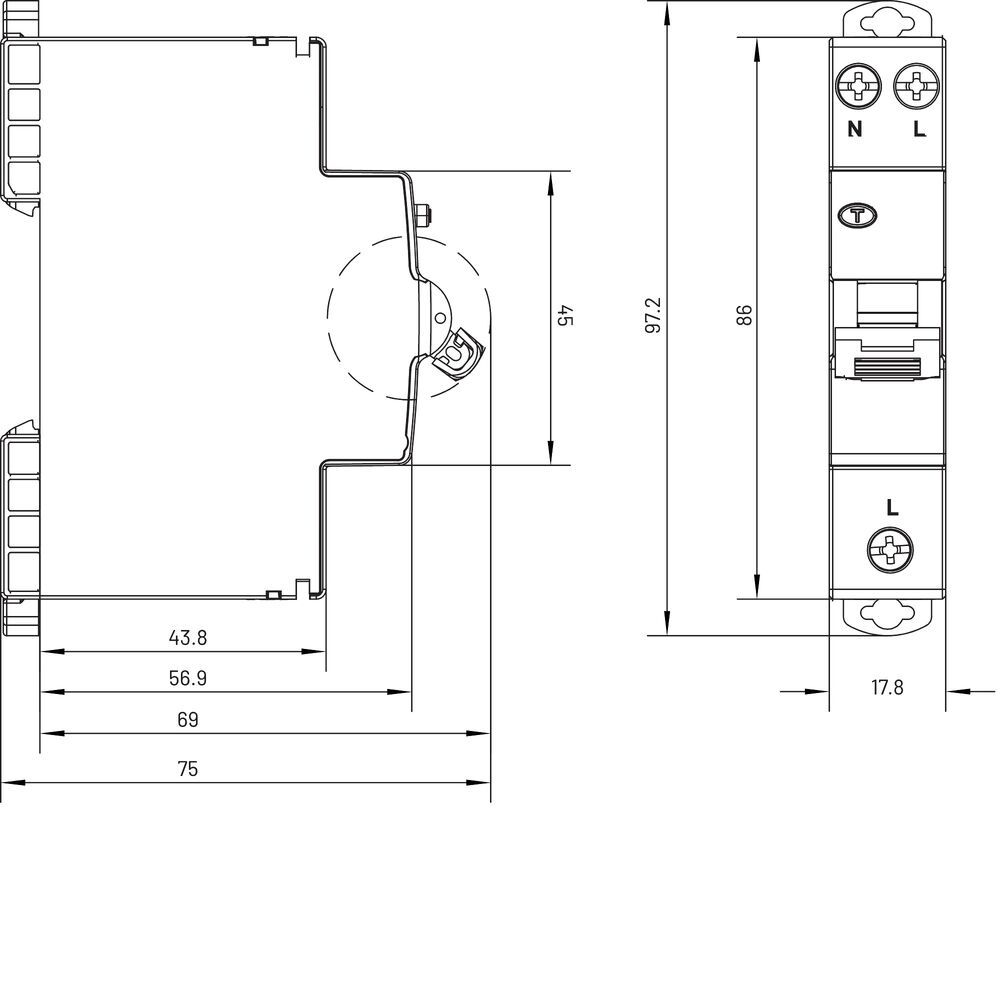

  • Dimensions:
    • Height: 86mm
    • Width: 18mm
    • Depth: 76mm
  • Operating Temperature: -25°C to +55°C
  • Pollution Degree: 2
  • Weight: 0.17kg
  • Standards Compliance: AS/NZS 61009

Applications:

  • Residential Subcircuits: Lighting and power outlet circuits requiring combined overload and residual current protection.
  • Commercial Installations: Suitable for office, retail, and small commercial switchboards.
  • Retrofit Projects: Slim design and neutral tail make it easy to upgrade existing installations without major switchboard modifications.
  • Industrial Panelboards: Used for circuits requiring additional protection where space-saving is critical.

The NHP MOD6+ MD6RS 30A RCBO provides a compact, safe, and efficient protection solution for modern electrical installations. Offering 6kA breaking capacity, 30mA Type A earth leakage protection, and a neutral tail for quick installations, it’s the perfect choice for electricians and contractors seeking space-saving, high-quality circuit protection backed by trusted NHP reliability.

Q: What type of residual currents does the Type A RCBO detect?
A: It detects both pure AC and pulsating DC faults, offering broader protection for modern electrical appliances.

Q: Is this RCBO suitable for use in homes and commercial buildings?
A: Yes, it's fully compliant for residential and commercial use under AS/NZS standards.

Q: Does this RCBO switch the neutral conductor?
A: Yes, it switches both active and neutral poles (switched neutral) for improved fault isolation.

Q: What installation method is required?
A: It is designed for standard DIN rail mounting and must be installed by a licensed electrician.
