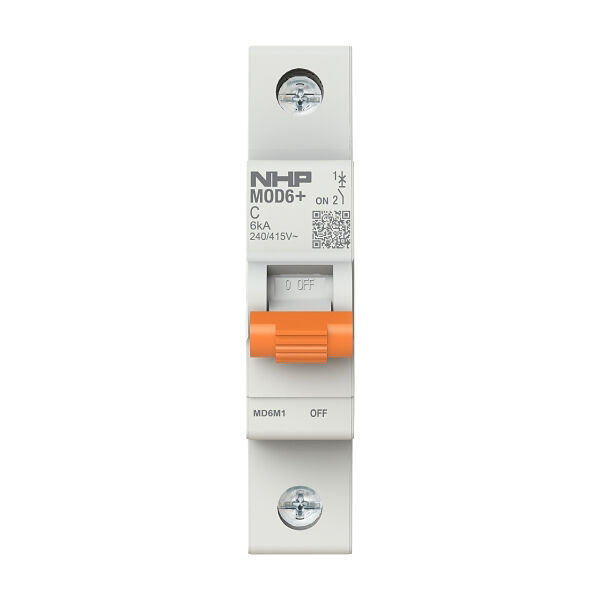

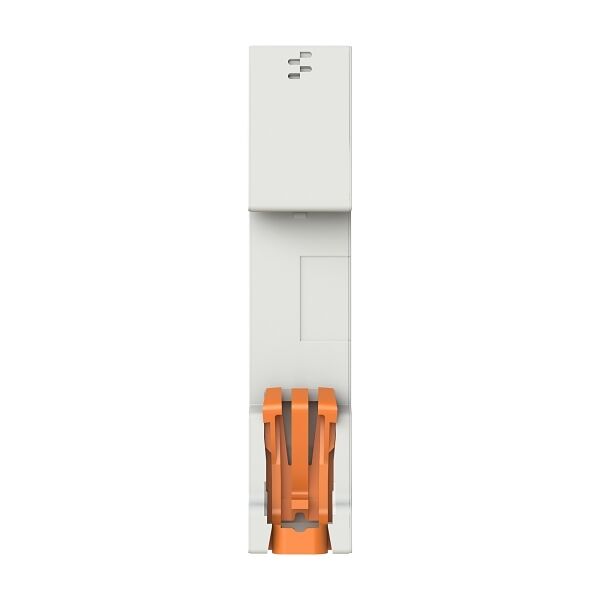

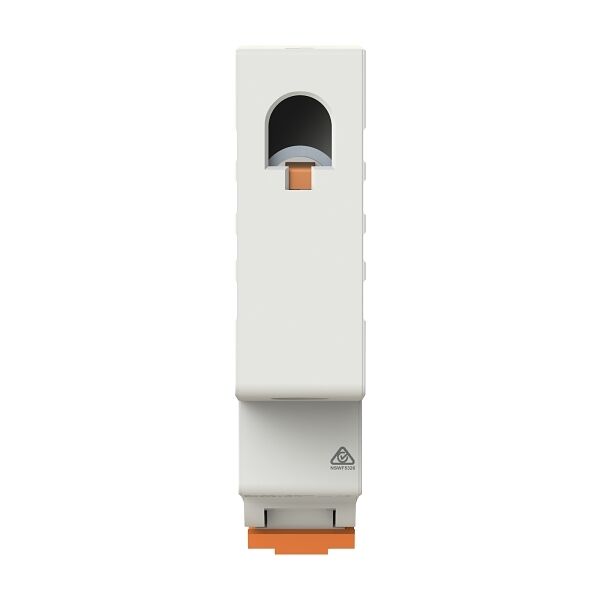

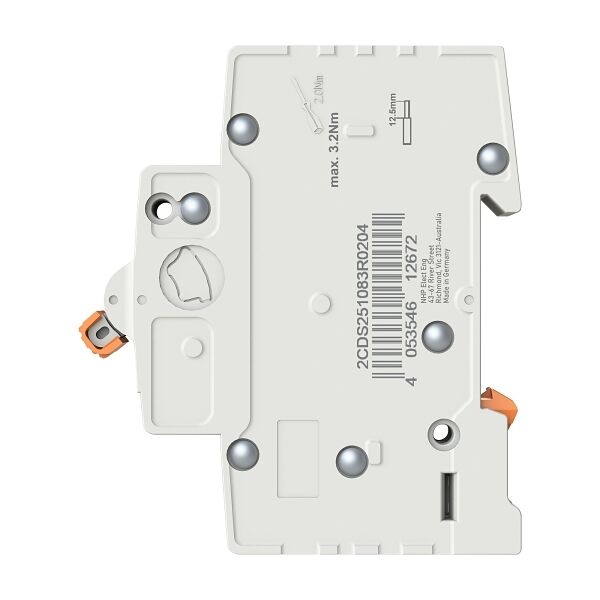

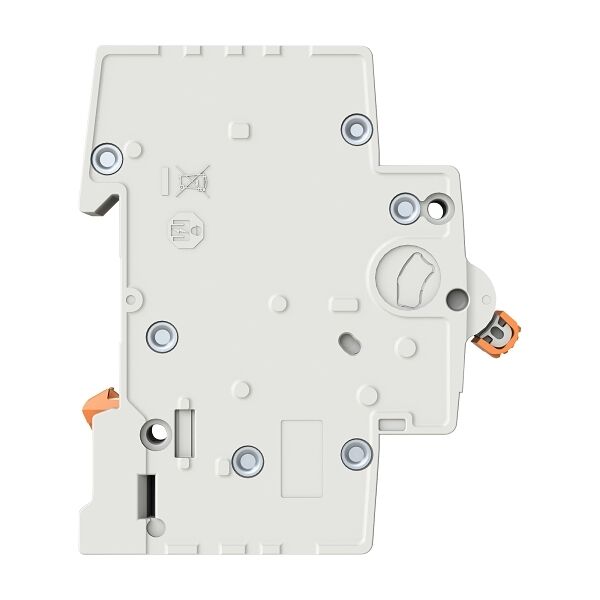

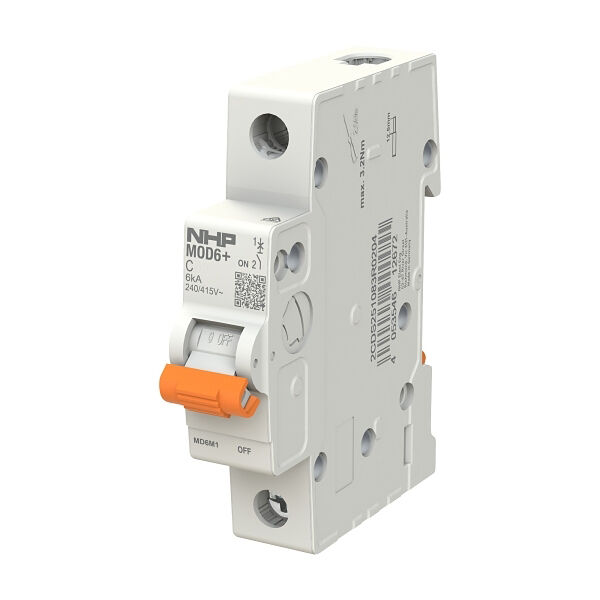

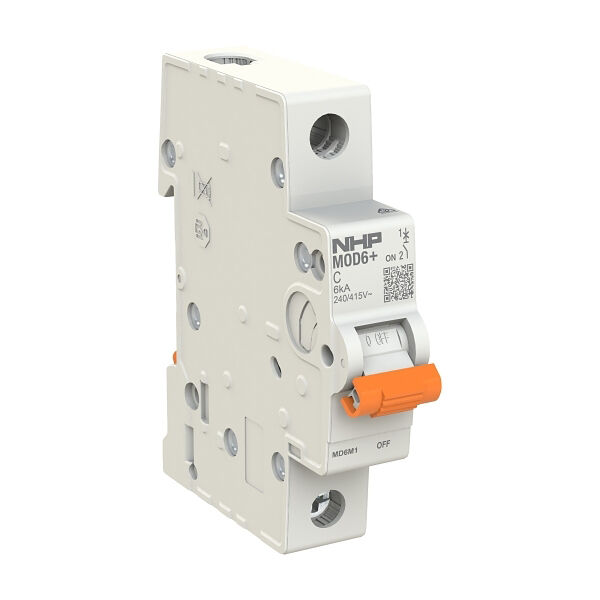

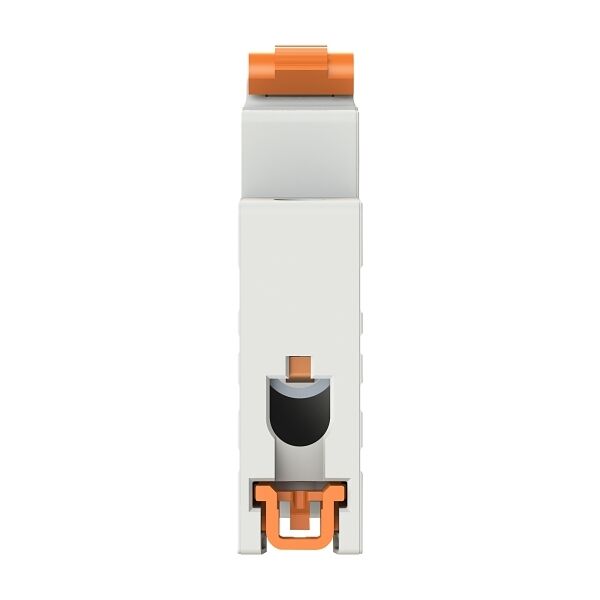

The NHP MOD6+ Miniature Circuit Breaker (MCB) is a 1 Pole, C Curve, 6kA-rated circuit protection device, designed for use in residential, commercial, and light industrial electrical installations. It offers reliable overcurrent protection with a robust construction and is compliant with AS/NZS 60898 standards.

Key Features:

  • C Curve Tripping Characteristics: Ideal for general-purpose loads such as lighting, socket outlets, and appliances with moderate inrush currents.
  • 6kA Breaking Capacity: Provides protection against short-circuit faults up to 6,000A at 230V and 400V AC.
  • High Insulation & Impulse Withstand: Rated insulation voltage of 440V and impulse withstand of 4kV, ensuring safety under fault conditions.
  • Slim 1-Module Design: Occupies 17.5mm width on a DIN rail, ideal for space-constrained distribution boards.
  • IP40 Degree of Protection: Suitable for installation within enclosures, offering resistance to dust ingress.
  • Wide Operating Temperature Range: Performs reliably in ambient temperatures from -25°C to +70°C.

Specifications:

  • Range / Model: MD6M1
  • Available in Rated Current (In): 10A, 16A, 20A, 25A, 32A, 40A, 50A, and 63A
  • Poles: 1
  • Trip Curve: C
  • Rated Voltage (Ue): 240V AC
  • Frequency: 50–60Hz
  • Breaking Capacity (Icn):
    • 6kA at 230V AC (AS/NZS 60898)
    • 6kA at 400V AC (AS/NZS 60898)
  • Rated Insulation Voltage (Ui): 440V
  • Rated Impulse Withstand Voltage (Uimp): 4kV
  • IP Rating: IP40
  • Connectable Conductor Size:
    • Solid-core: 0.75 – 25 mm²
    • Multi-wired: 0.75 – 16 mm²

Dimensions:

  • Height: 85 mm
  • Width: 17.5 mm (1 module)
  • Depth: 75.8 mm
  • Weight: 0.12 kg

Environmental Ratings:

  • Pollution Degree: 3
  • Temperature (Without Derating): 30°C
  • Operating Temperature Range: -25°C to +70°C

Applications:

  • Residential Distribution Boards: Protects lighting, power outlets, and household circuits.
  • Commercial Installations: Suitable for office and retail environments.
  • Control Panels: Used in switchboards for equipment protection.
  • Light Industrial Use: For circuits with moderate inrush current loads like small motors and HVAC.

The NHP MOD6+ 1 Pole C Curve MCB (MD6M1) offers dependable protection in a compact form, making it a go-to solution for electricians and installers seeking performance, safety, and compliance with Australian standards.

Q: What does a C Curve trip characteristic mean?
A: C Curve MCBs trip at 5–10 times their rated current, ideal for resistive loads and low inrush inductive circuits.

Q: Can this MCB be used in outdoor applications?
A: The unit itself is IP40, so it must be installed within a weatherproof enclosure if used outdoors.

Q: Is this breaker compatible with standard DIN rail systems?
A: Yes, the MOD6+ is DIN rail mountable and fits standard switchboards.

Q: Is this breaker suitable for three-phase systems?
A: No, this is a single-pole device. For three-phase circuits, consider using multi-pole versions of the MOD6+ series.
