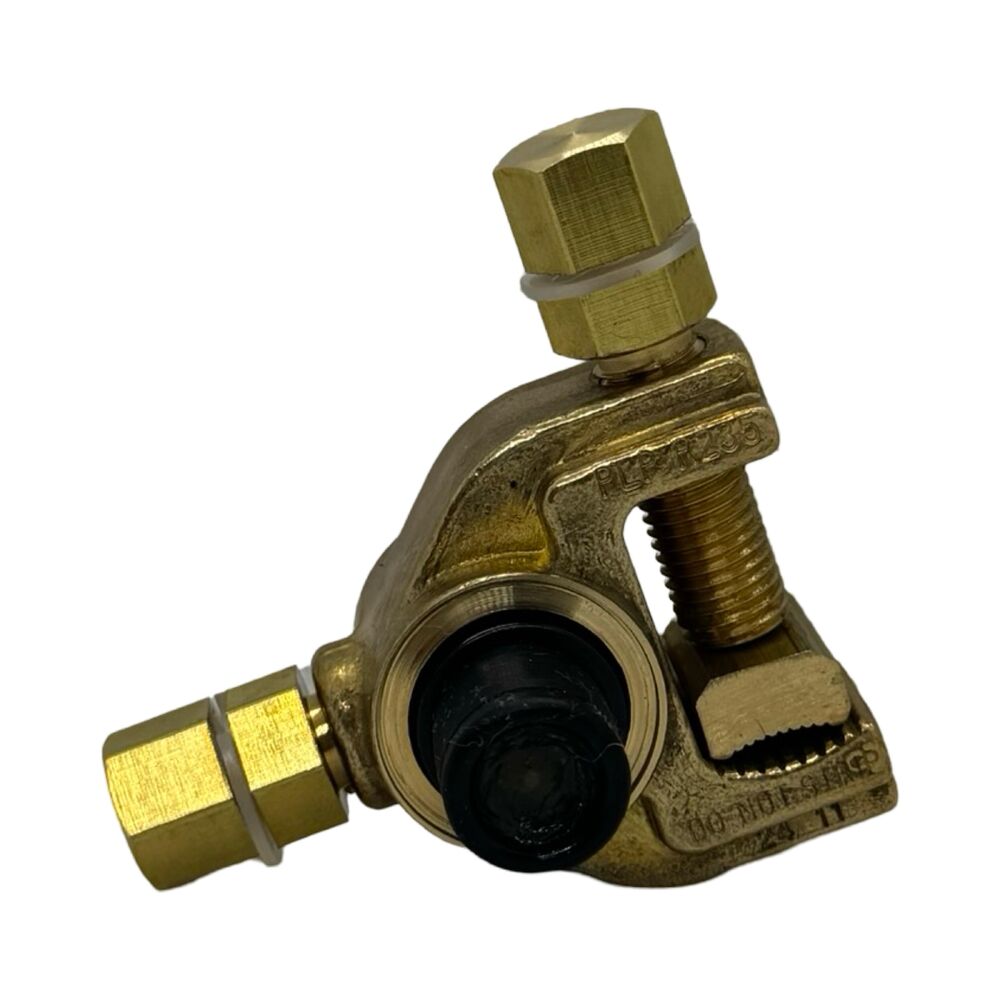

The Preformed Line Products (PLP) R235 Single Copper Tap Off Connector is a high-quality, insulation-piercing tap-off connector designed for reliable service cable connections to bare copper or aluminium mains. With shear-head bolt technology and moisture-free operation, this connector ensures a secure and maintenance-free electrical connection in overhead and underground distribution networks.

Key Features:

  • Insulation-Piercing Technology: Eliminates the need to strip the cable, ensuring a quick and efficient installation.
  • Forged Copper Body: Provides superior strength and durability, maintaining reliable electrical performance.
  • Shear-Head Bolt System: Allows for a consistent and controlled torque using a standard M8 socket, ensuring a secure connection without over-tightening.
  • Moisture-Free Connection: Designed for long-term performance, preventing corrosion and environmental damage in harsh outdoor conditions.

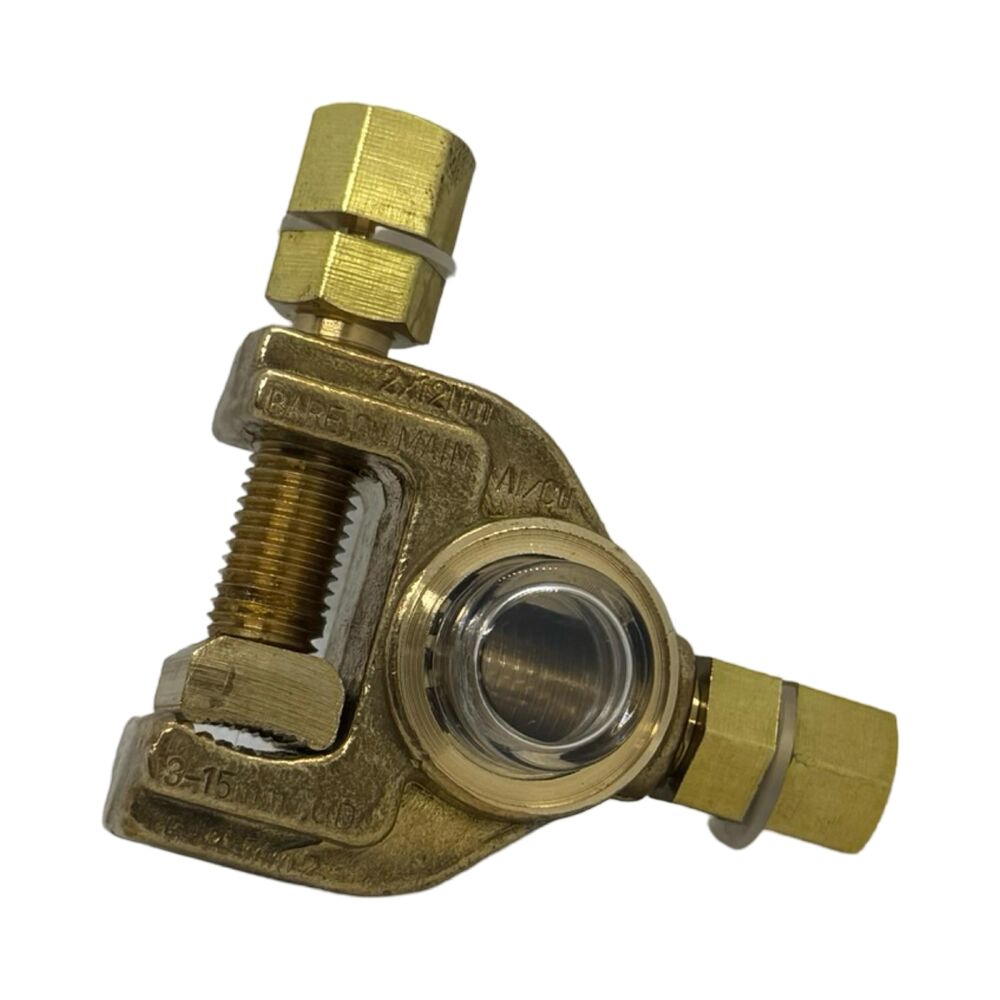

  • Polycarbonate Windows: Provides visual confirmation of the connection, allowing installers to verify proper seating of the conductor.
  • Tested to AS/NZS4396 Standards: Complies with industry safety and performance requirements, ensuring reliability in electrical distribution networks.

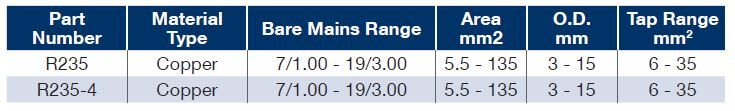

Specifications:

  • Model Number: R235
  • Sicame Equivalent: CCW35 or CCW35E
  • Material: Forged Copper Body
  • Cable Compatibility: XLPE or PVC Copper and Aluminium Service Cables
  • Main Conductor: Bare Copper / Bare Aluminium
  • Bolt Type: M8 Shear-Head Bolt
  • Standards Compliance: AS/NZS4396
  • Installation Method: No stripping required (insulation piercing technology)

Applications:

  • Overhead & Underground Power Distribution: Ensures secure tap-off connections for mains-to-service cable installations.
  • Utility & Electrical Networks: Used in electrical substations, pole-mounted transformers, and urban grid networks.
  • Renewable Energy Systems: Suitable for solar and wind energy infrastructure, ensuring reliable tap-off connections.
  • Industrial & Commercial Power Systems: Provides safe and efficient branch connections for industrial power networks.

The PLP R235 Single Copper Tap Off Connector is an essential component for electrical distribution systems, providing secure, efficient, and maintenance-free connections for utility, industrial, and renewable energy applications. Its robust forged copper construction, insulation-piercing design, and shear-head bolt system make it a trusted solution for professionals in the power distribution industry.

Q: What type of cables can be used with the R235 Tap Off Connector?
A: The connector is designed for XLPE or PVC insulated copper and aluminium service cables connecting to bare copper or bare aluminium mains.

Q: Is cable stripping required before installation?
A: No, the insulation-piercing technology eliminates the need to strip the cable, making installation faster and more reliable.

Q: What is the benefit of the shear-head bolt technology?
A: The M8 shear-head bolt ensures a consistent torque-controlled connection, preventing over-tightening and ensuring a secure electrical bond.

Q: Can this connector be used in outdoor installations?
A: Yes, the R235 is designed for outdoor applications with moisture-free sealing, preventing corrosion and long-term degradation.

All products must be installed by a licensed electrican. DIY electrical work is illegal and very dangerous.

Change of Mind
All products purchased from MJS Electrical Products & Supplies are backed by a thirty (30) day Peace of Mind Return Policy. All products returned must be in perfect unused condition, with all components, complete with original packaging. We will not allow returns on damaged or incomplete products. Proof of purchase is required. Should the product not be in original condition, please contact us before returning it as this may save you some unnecessary costs.

Damaged / Faulty Goods
If you find that the goods were damaged in transit or were faulty in some manner, please contact us within 24 hours of receiving the goods. We will organise for the return of the goods and arrange a credit towards your next purchase or send a replacement product. Customer will incur the cost of return postage and be credited the purchase price only. We recommend that you return your unwanted items using registered post or trackable courier. We can not be held responsible if returned items are lost in transit.

Warranties
Product warranties are governed by the respective manufacturers and / or suppliers warranty terms and conditions (available on request). We will not be liable to you or any third party for any loss suffered due to product failure. We will process product warranty claims through the respective manufacturers and/or suppliers. All warranties are void if the product is not installed by a licensed electrician.

PRODUCT INFO
SKU PLPR235
Model # R235
Brand Preformed Line Products
SHIPPING INFO
Shipping Width 0.050m
Shipping Height 0.065m
Shipping Length 0.065m
