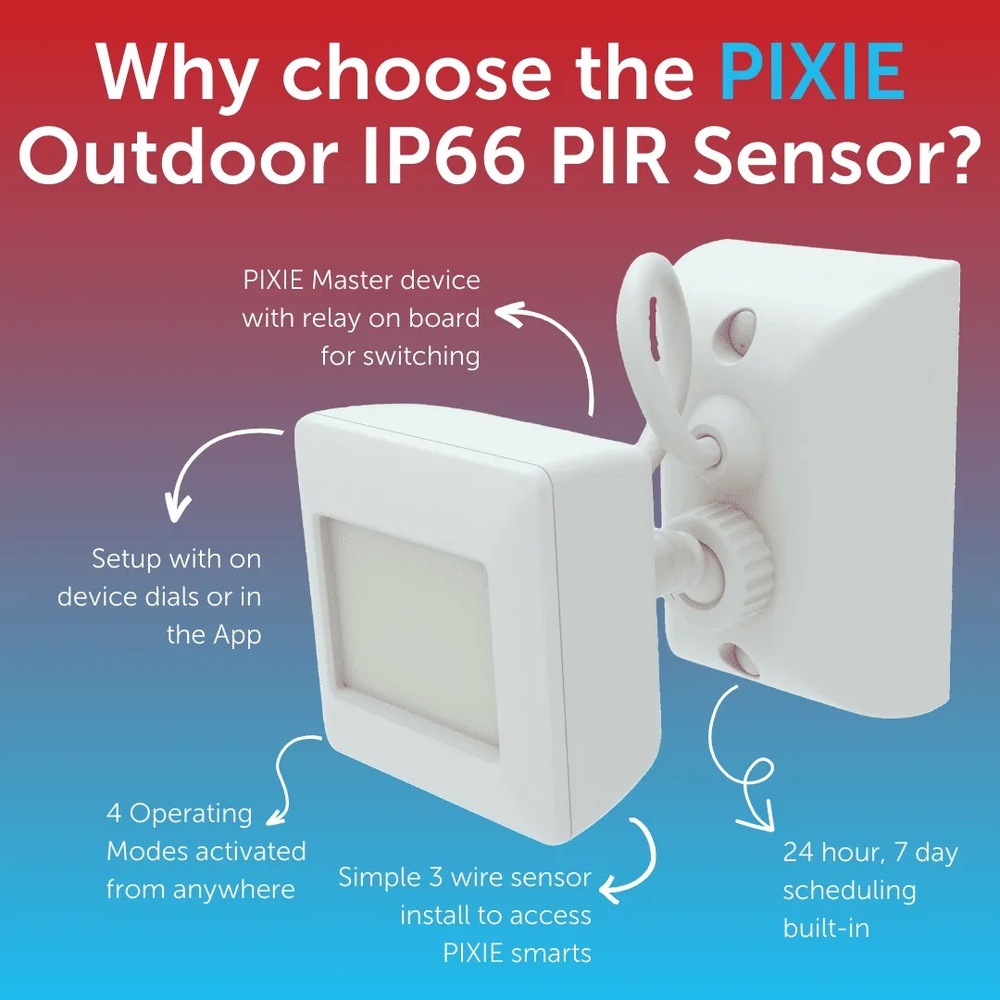

The PIXIE Smart PIR Sensor Outdoor Wall Mount is a traditional 3-wire, IP66 rated motion sensor with PE sensing capabilities, and acts as a PIXIE Master device with full device control, grouping and scene capability as well as 24 hour 7 days scheduling of any of these modes, built in.

The sensor can be setup from the App and / or from the on body dials to set time-out, lux level and sensitivity. When using the App, it’s possible to ‘learn’ the current light level and use that as the trigger point too.

Features

  • Simply use the App or PIXIE secondary device to switch among 4 working modes: AUTO Motion sensor mode, Override ON, Override OFF, and PE cell mode
  • Simple 3 wire Installation
  • Sensitivity, hold time and brightness threshold adjustment can be set via physical dials, and via the PIXIE PLUS App
  • Maximum loads (LED) 500W, (Halogen) 2000W
  • Additional PE cell mode
  • Detection angle 110° up to 12 metres at a height of 1.8 - 2.5m (Black model detection range 10 metres).

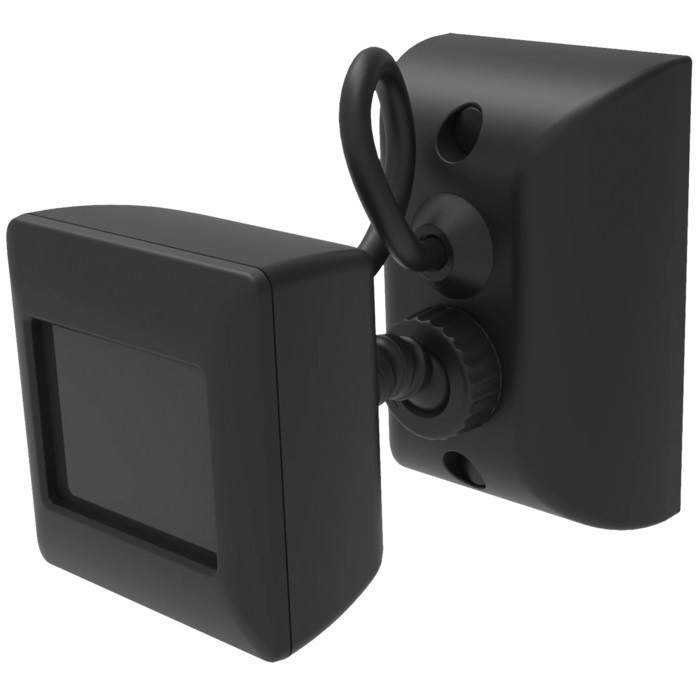

  • Black Colour

All products must be installed by a licensed electrican. DIY electrical work is illegal and very dangerous.

Change of Mind
All products purchased from MJS Electrical Products & Supplies are backed by a thirty (30) day Peace of Mind Return Policy. All products returned must be in perfect unused condition, with all components, complete with original packaging. We will not allow returns on damaged or incomplete products. Proof of purchase is required. Should the product not be in original condition, please contact us before returning it as this may save you some unnecessary costs.

Damaged / Faulty Goods
If you find that the goods were damaged in transit or were faulty in some manner, please contact us within 24 hours of receiving the goods. We will organise for the return of the goods and arrange a credit towards your next purchase or send a replacement product. Customer will incur the cost of return postage and be credited the purchase price only. We recommend that you return your unwanted items using registered post or trackable courier. We can not be held responsible if returned items are lost in transit.

Warranties
Product warranties are governed by the respective manufacturers and / or suppliers warranty terms and conditions (available on request). We will not be liable to you or any third party for any loss suffered due to product failure. We will process product warranty claims through the respective manufacturers and/or suppliers. All warranties are void if the product is not installed by a licensed electrician.

Installation Area Outdoor
Colour Black
Voltage 240V
Range SAL Pixie
Type Smart Motion Sensor
PRODUCT INFO
SKU SMS862WFBKBTAM
Model # SMS862WF/BK/BTAM
Barcode # 9328623130951
Brand SAL
SHIPPING INFO
Shipping Weight 0.3900kg
Shipping Width 0.120m
Shipping Height 0.085m
Shipping Length 0.190m
