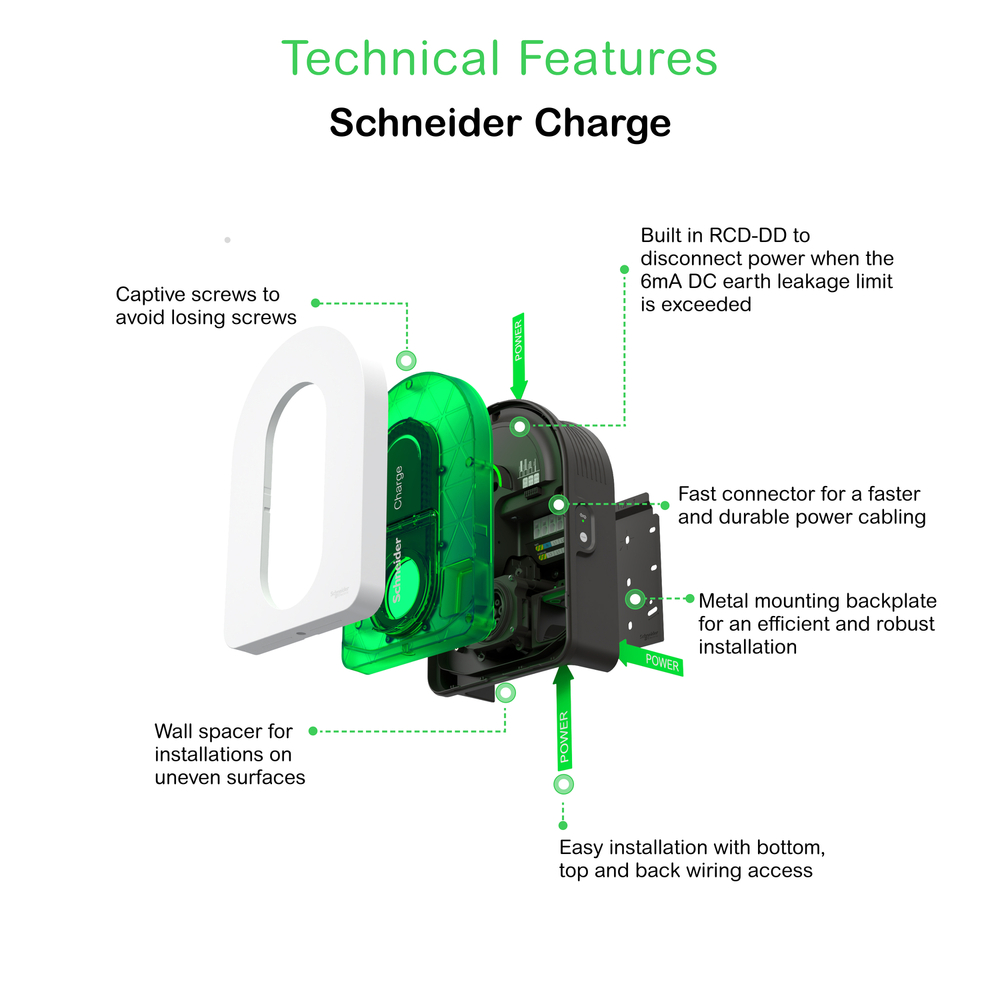

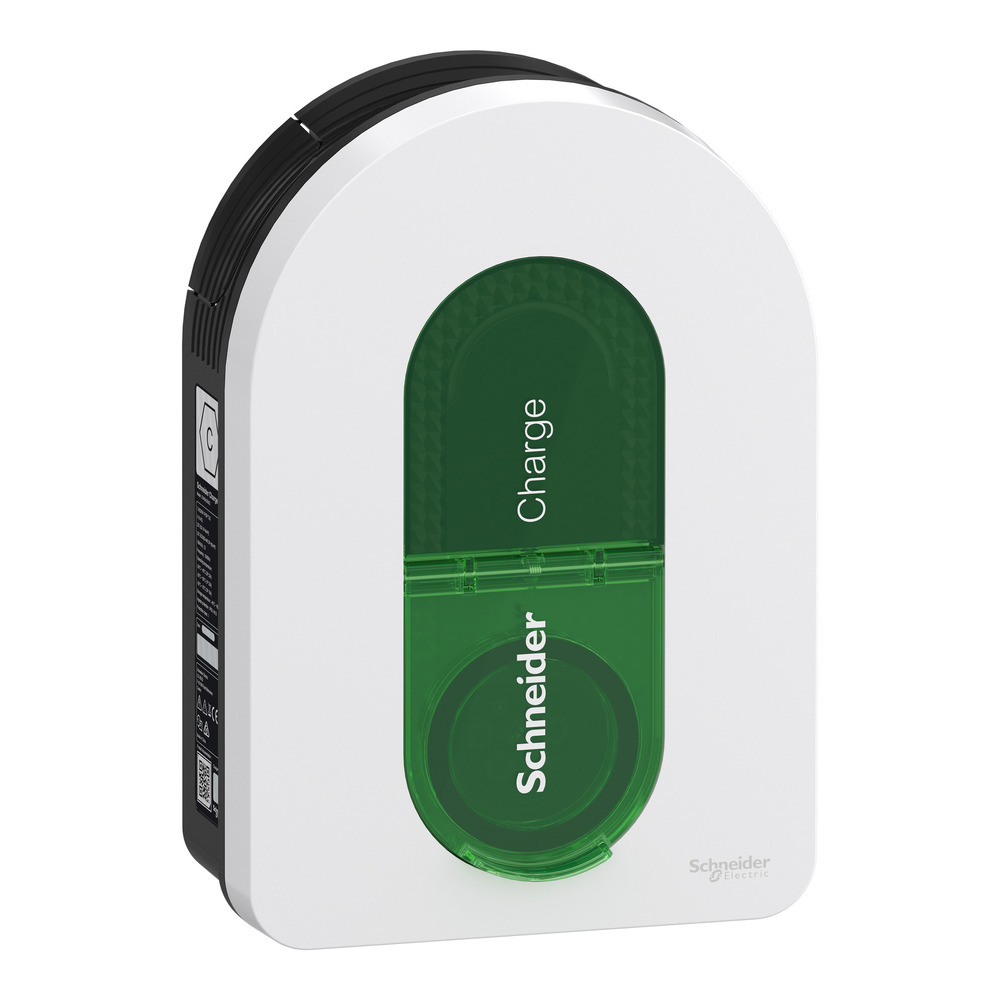

Versatile and Efficient Charging for Your Electric Vehicle

Experience the versatility and efficiency of the Schneider Charge Charging Station, designed to accommodate various power requirements and ensure seamless charging for your electric vehicle. This station offers multiple power options, making it a perfect fit for diverse charging needs.

Key Features:

  • Range: Schneider Charge
  • Product Name: Schneider Charge
  • Product Type: Charging station
  • Poles Description: 1P + N, 3P + N
  • Mounting Mode: Wall-mounted
  • Max Power: 7.4 kW (32 A), 11 kW (16 A), 22 kW (32 A)
  • Number of Charge Points: 1
  • Connection to the Vehicle: Socket-outlet T2 with shutter front face



Electrical Specifications:

  • Rated Supply Voltage: 230-240 V AC 50-60 Hz +/- 10%, 400 V AC 50-60 Hz +/- 10%
  • Earthing System: IT, TT, TN-S
  • Number of Inputs: 1
  • Input Type: Dry contact for dynamic energy management
  • Local Signalling: Red, green, and blue LED, function: status indication
  • Protection Type: Earth-leakage protection
  • Standards: EN 61851, IEC 61851-1, EN 61000-6-1, EN 61000-6-3
  • Communication Network Type: Wi-Fi, Wireless, Ethernet
  • Communication Port Protocol: OCPP 1.6, for connection to the Schneider Electric Wiser app



Dimensions and Weight:

  • Height: 352 mm
  • Width: 244 mm
  • Depth: 117 mm
  • Net Weight: 3.2 kg
  • Colour: White/green



Environmental Specifications:

  • IP Degree of Protection: IP55 conforming to EN/IEC 60529
  • IK Degree of Protection: IK10
  • Operating Altitude: 0-2000 m
  • Ambient Air Temperature for Operation: -30 to 45 °C
  • Ambient Air Temperature for Storage: -40 to 85 °C
  • Relative Humidity: 5-95%

Ensure your electric vehicle charging systems are protected with the best in the industry. The Schneider Charge Charging Station is engineered for safety, durability, and environmental responsibility, making it the perfect choice for modern, eco-conscious installations.

All products must be installed by a licensed electrican. DIY electrical work is illegal and very dangerous.

Change of Mind
All products purchased from MJS Electrical Products & Supplies are backed by a thirty (30) day Peace of Mind Return Policy. All products returned must be in perfect unused condition, with all components, complete with original packaging. We will not allow returns on damaged or incomplete products. Proof of purchase is required. Should the product not be in original condition, please contact us before returning it as this may save you some unnecessary costs.

Damaged / Faulty Goods
If you find that the goods were damaged in transit or were faulty in some manner, please contact us within 24 hours of receiving the goods. We will organise for the return of the goods and arrange a credit towards your next purchase or send a replacement product. Customer will incur the cost of return postage and be credited the purchase price only. We recommend that you return your unwanted items using registered post or trackable courier. We can not be held responsible if returned items are lost in transit.

Warranties
Product warranties are governed by the respective manufacturers and / or suppliers warranty terms and conditions (available on request). We will not be liable to you or any third party for any loss suffered due to product failure. We will process product warranty claims through the respective manufacturers and/or suppliers. All warranties are void if the product is not installed by a licensed electrician.

Amp 16/32A
Poles 1P+N
Range Schneider Charge
PRODUCT INFO
SKU CLIEVH5A22N2S
Model # EVH5A22N2S
Barcode # 3606486846162
Brand Clipsal
SHIPPING INFO
Shipping Weight 4.7080kg
Shipping Width 0.290m
Shipping Height 0.225m
Shipping Length 0.395m
