Efficient and Reliable Charging for Your Electric Vehicle

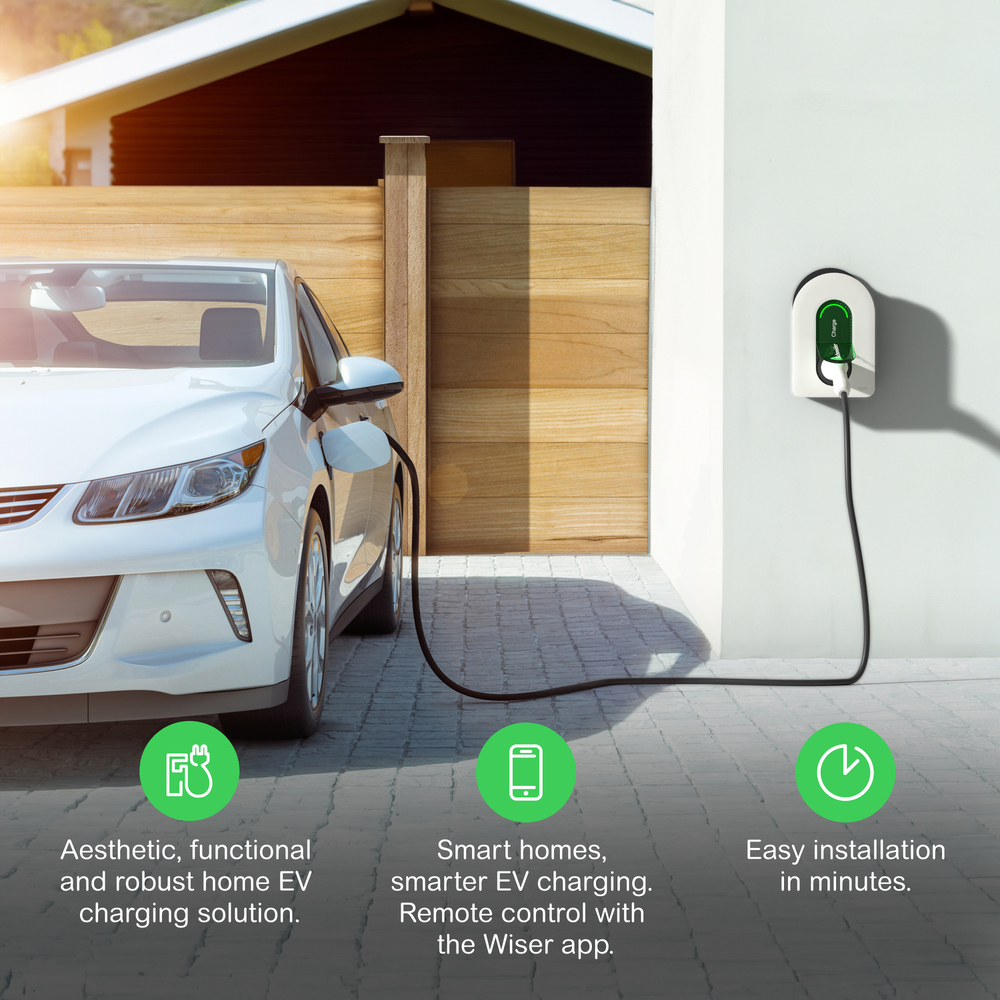

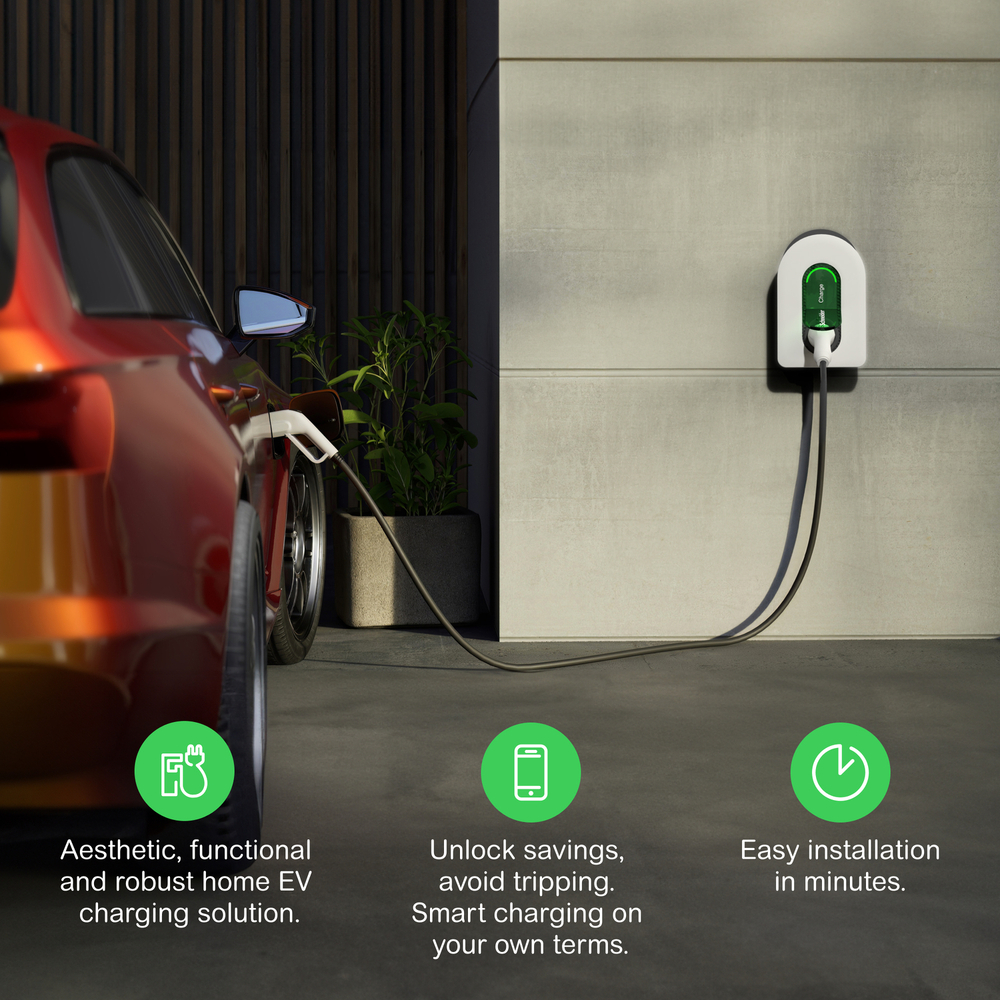

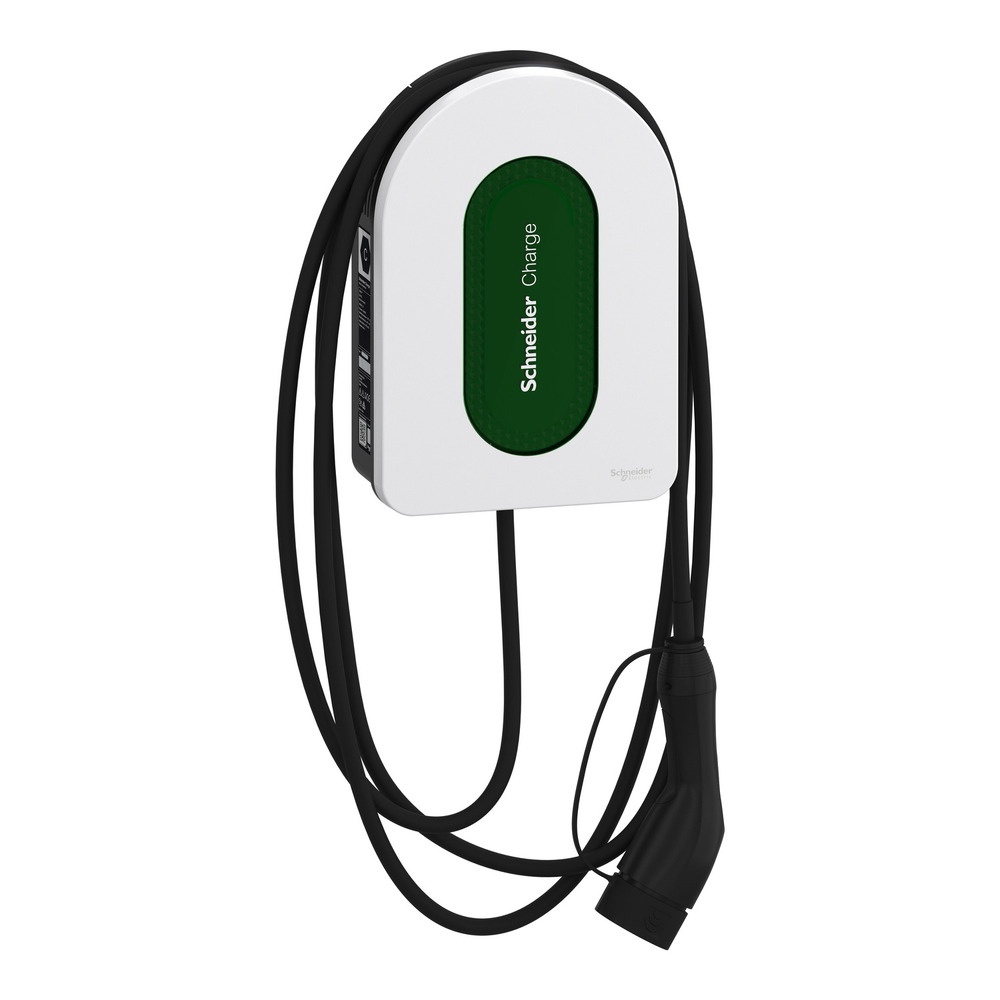

Experience the convenience and reliability of the Schneider Charge Charging Station, designed to provide seamless and efficient charging for your electric vehicle. With a robust 7.4kW power output and a 5-meter attached cable, this station ensures your vehicle is ready to go when you are.

Key Features:

  • Range: Schneider Charge
  • Product Name: Schneider Charge
  • Product Type: Charging station
  • Poles Description: 1P + N
  • Mounting Mode: Wall-mounted
  • Max Power: 7.4 kW, 32 A
  • Number of Charge Points: 1
  • Connection to the Vehicle: Attached cable T2 bottom 5 mtr



Specifications:

  • Rated Supply Voltage: 230-240 V AC 50-60 Hz +/- 10%
  • Earthing System: IT, TT, TN-S
  • Number of Inputs: 1
  • Input Type: Dry contact for dynamic energy management
  • Local Signalling: Red, green, and blue LED, function: status indication
  • Protection Type: Earth-leakage protection
  • Standards: EN 61851, IEC 61851-1
  • Communication Network Type: Wi-Fi, Wireless, Ethernet
  • Communication Port Protocol: OCPP 1.6, for connection to the Schneider Electric Wiser app



Environmental Specifications:

  • IP Degree of Protection: IP55 conforming to EN/IEC 60529
  • IK Degree of Protection: IK10
  • Operating Altitude: 0-2000 m
  • Ambient Air Temperature for Operation: -30 to 50 °C
  • Ambient Air Temperature for Storage: -40 to 85 °C
  • Relative Humidity: 5-95%



Dimensions and Weight:

  • Height: 352 mm
  • Width: 244 mm
  • Depth: 117 mm
  • Net Weight: 4.5 kg
  • Colour: White/green



Ensure your electric vehicle charging systems are protected with the best in the industry. The Schneider Charge Charging Station is engineered for safety, durability, and environmental responsibility, making it the perfect choice for modern, eco-conscious installations.



All products must be installed by a licensed electrican. DIY electrical work is illegal and very dangerous.

Change of Mind
All products purchased from MJS Electrical Products & Supplies are backed by a thirty (30) day Peace of Mind Return Policy. All products returned must be in perfect unused condition, with all components, complete with original packaging. We will not allow returns on damaged or incomplete products. Proof of purchase is required. Should the product not be in original condition, please contact us before returning it as this may save you some unnecessary costs.

Damaged / Faulty Goods
If you find that the goods were damaged in transit or were faulty in some manner, please contact us within 24 hours of receiving the goods. We will organise for the return of the goods and arrange a credit towards your next purchase or send a replacement product. Customer will incur the cost of return postage and be credited the purchase price only. We recommend that you return your unwanted items using registered post or trackable courier. We can not be held responsible if returned items are lost in transit.

Warranties
Product warranties are governed by the respective manufacturers and / or suppliers warranty terms and conditions (available on request). We will not be liable to you or any third party for any loss suffered due to product failure. We will process product warranty claims through the respective manufacturers and/or suppliers. All warranties are void if the product is not installed by a licensed electrician.

Amp 32A
Range Schneider Charge
Poles 3P+N
PRODUCT INFO
SKU CLIEVH5A07N2C5
Model # EVH5A07N2C5
Barcode # 3606486961155
Brand Clipsal
SHIPPING INFO
Shipping Weight 6.9280kg
Shipping Width 0.290m
Shipping Height 0.300m
Shipping Length 0.480m
