Efficient and Reliable Charging for Your Electric Vehicle

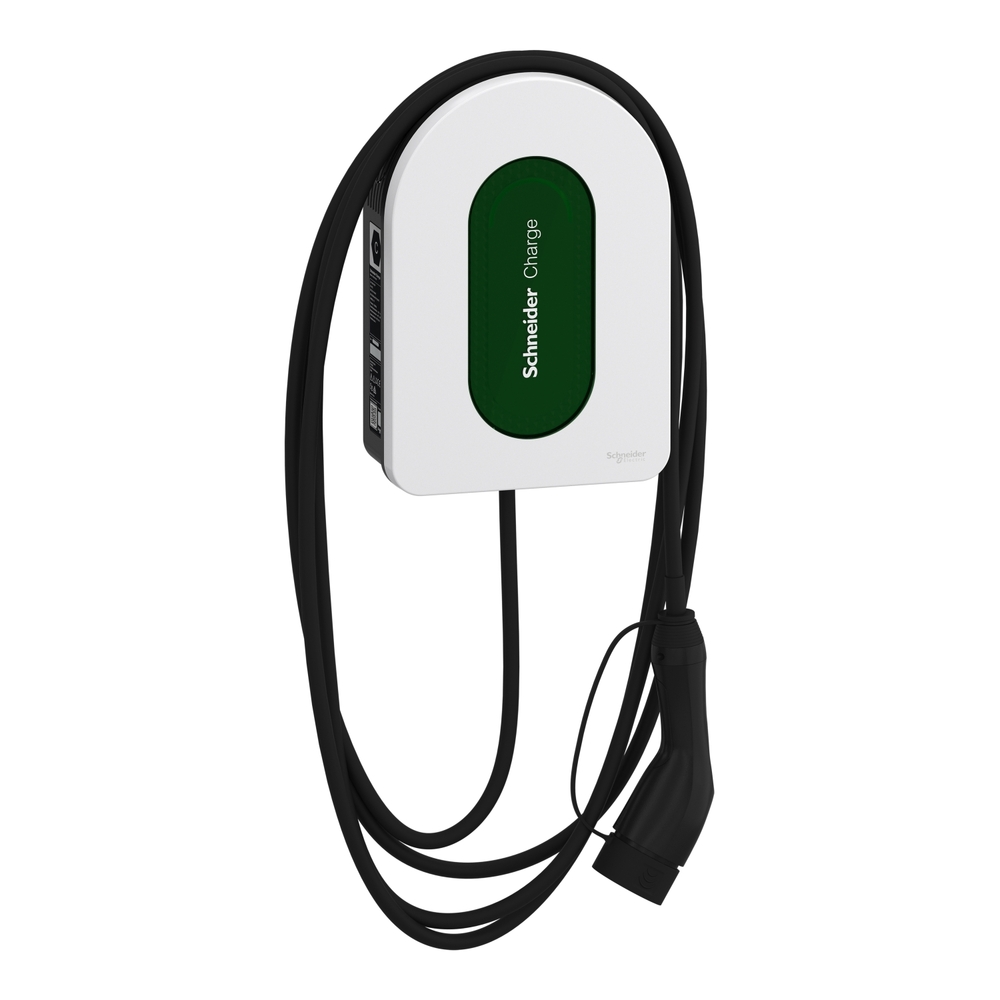

Experience the convenience and reliability of the Schneider Charge Charging Station, designed to provide seamless and efficient charging for your electric vehicle. With a robust 11kW power output and a 7-meter attached cable, this station ensures your vehicle is ready to go when you are.

Key Features:

• Range: Schneider Charge
• Product Name: Schneider Charge
• Product Type: Charging station
• Poles Description: 3P + N
• Mounting Mode: Wall-mounted
• Max Power: 11 kW, 16 A
• Number of Charge Points: 1
• Connection to the Vehicle: Attached cable T2 bottom 7 m

Electrical Specifications:

• Rated Supply Voltage: 400 V AC 50-60 Hz +/- 10%
• Earthing System: IT, TT, TN-S
• Number of Inputs: 1
• Input Type: Dry contact for dynamic energy management
• Local Signalling: Red, green, and blue LED, function: status indication
• Protection Type: Earth-leakage protection
• Standards: EN 61851, IEC 61851-1
• Communication Network Type: Wi-Fi, Wireless, Ethernet
• Communication Port Protocol: OCPP 1.6, for connection to the Schneider Electric Wiser app

Dimensions and Weight:

• Height: 352 mm
• Width: 244 mm
• Depth: 117 mm
• Net Weight: 5.1 kg
• Colour: White/green

Environmental Specifications:

• IP Degree of Protection: IP55 conforming to EN/IEC 60529
• IK Degree of Protection: IK10
• Operating Altitude: 0-2000 m
• Ambient Air Temperature for Operation: -35 to 55 °C
• Ambient Air Temperature for Storage: -40 to 85 °C
• Relative Humidity: 5-95%

Ensure your electric vehicle charging systems are protected with the best in the industry. The Schneider Charge Charging Station is engineered for safety, durability, and environmental responsibility, making it the perfect choice for modern, eco-conscious installations.
