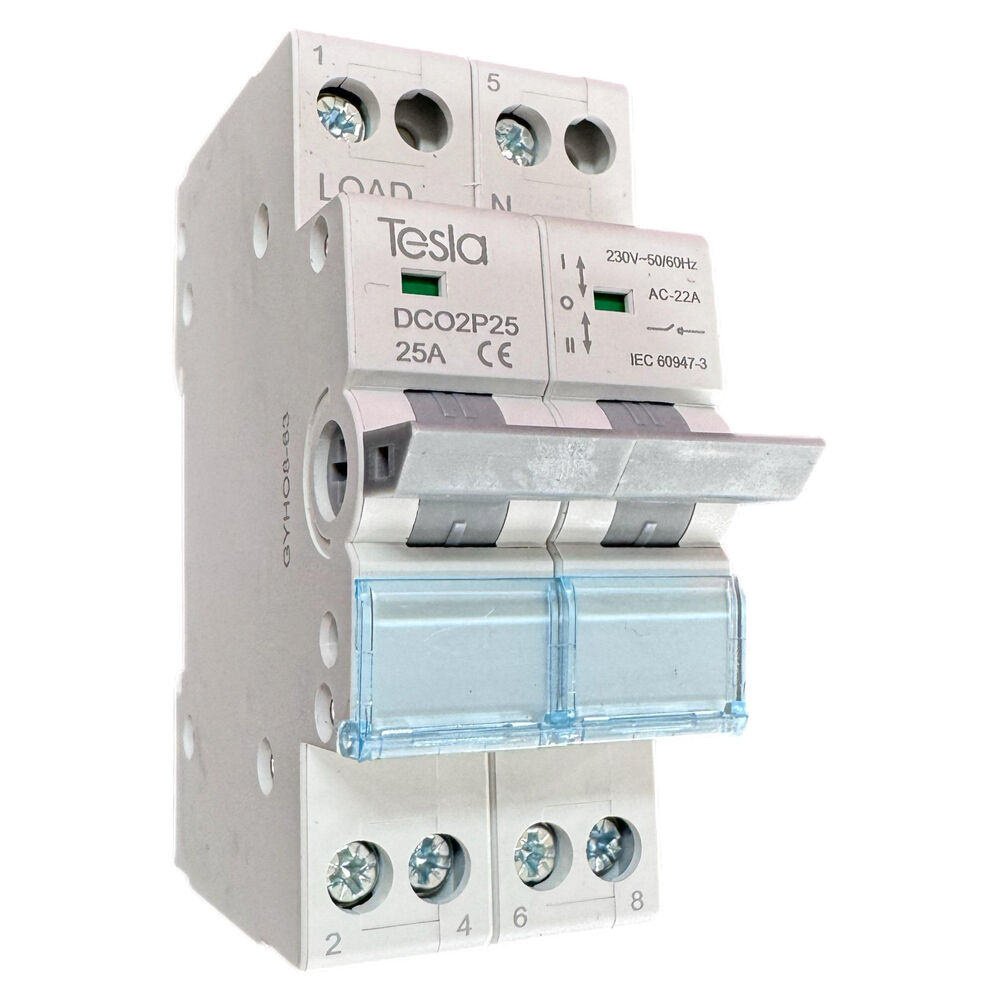

The Tesla DCO2P25 is a 2 Pole 25A DIN Rail Mounted Changeover Switch, designed for safe and reliable manual switching between two power sources. Engineered for compact switchboard integration, it is ideal for residential, commercial, and light industrial applications where changeover functionality is required.

Key Features:

  • Centre-Off Switching Function: Manual 2-position + centre off changeover operation for isolating and switching between alternate power sources (e.g. grid and generator).
  • 25A Rated Current Capacity: Suitable for AC21 and AC22A category applications—handling resistive and slightly inductive loads.
  • Compact DIN Rail Mount Design: Occupies only 2 modules (35mm) in width, making it ideal for modern distribution boards.
  • Dual Power Compatibility: Rated for 230V AC operation at 50/60Hz, making it compatible with standard single-phase systems.
  • Durable & Safe: Built to IEC 60947-3 standards with 10,000 mechanical operations and a short-circuit current rating of 1200A.
  • High Build Quality: Designed to operate safely within a wide temperature range (-5°C to +50°C), with a tough and reliable contact mechanism.

Specifications:

  • Model: DCO2P25
  • Rated Operational Voltage (Ue): 230V AC
  • Rated Insulation Voltage (Ui): 440V
  • Rated Current (Ie): 25A (AC21B / AC22A categories)
  • Frequency: 50/60Hz
  • Number of Poles: 2
  • Switching Type: Manual, centre-off changeover
  • Short-Circuit Withstand Current: 1200A
  • Mechanical Life: 10,000 cycles
  • Cable Capacity: Up to 10mm²
  • Tightening Torque: 1.8Nm

Dimensions:

  • Width: 35mm (2 DIN modules)
  • Height: 85mm
  • Depth: 75mm

Applications:

  • Backup Generator Systems: For switching between mains power and generator inputs.
  • Off-grid / Solar Installations: Suitable for switching between grid and battery/solar inverters.
  • Switchboard Panels: Compact enough for use in modern DIN rail switchboards.
  • Industrial Control Systems: Useful in light-duty applications requiring load isolation or dual input switching.

The Tesla DCO2P25 2 Pole 25A Changeover Switch offers a compact, safe, and compliant solution for power source switching in domestic and commercial switchboards. With centre-off functionality, robust construction, and a DIN rail mount, it is a trusted choice for efficient and reliable changeover applications.

Q: Is this switch suitable for generator changeover use?
A: Yes, the DCO2P25 is ideal for generator changeover applications in single-phase installations up to 25A.

Q: Can I use this with both resistive and inductive loads?
A: Yes, it’s rated for both AC21B (resistive) and AC22A (inductive) load categories.

Q: Is professional installation required?
A: Yes, this product must be installed by a licensed electrician in accordance with local wiring regulations.

Q: Does this changeover switch isolate both live and neutral?
A: Yes, being a 2-pole switch, it isolates both active and neutral, which is essential for safe changeover operation.
