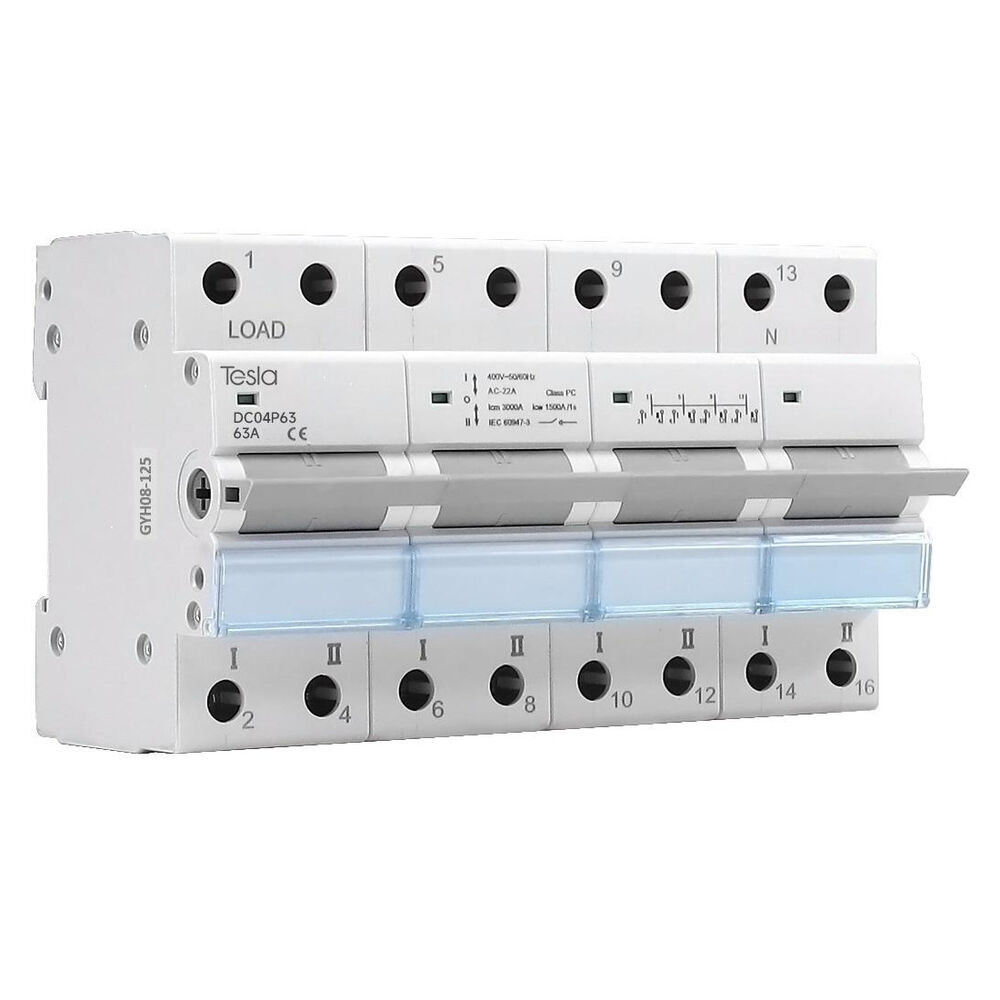

The Tesla DCO4P63 is a 4 Pole 63A DIN Rail Mounted Changeover Switch, engineered for reliable manual switching between two power sources in three-phase electrical systems. Featuring a centre-off position, high current capacity, and a compact modular design, this switch is ideal for residential, commercial, and light industrial applications where a safe and effective power transfer is required.

Key Features:

  • 4 Pole Switching: Suitable for three-phase installations, this switch isolates all active and neutral lines, ensuring complete disconnection between power sources.
  • Centre-Off Functionality: Provides an off-position between sources, ensuring safe transition and maintenance-friendly operation.
  • High Current Rating: Rated at 63A for both AC21B and AC22A categories, handling both resistive and moderately inductive loads.
  • DIN Rail Mountable: Occupies 8 modules (144mm width) for integration into standard switchboards.
  • Compliant with IEC 60947-3: Meets international safety standards for low-voltage switchgear.
  • Rugged Construction: Withstands short circuit currents up to 3000A and ensures long-term durability with 10,000 mechanical operations.
  • Wide Temperature Tolerance: Operates effectively in environments from -20°C to +50°C.

Specifications:

  • Model Number: DCO4P63
  • Switching Type: Manual, centre-off changeover
  • Number of Poles: 4
  • Rated Operational Voltage (Ue): 400V AC
  • Rated Insulation Voltage (Ui): 500V
  • Rated Current (Ie): 63A
  • Short-Circuit Current Rating: 3000A
  • Load Categories: AC21B (resistive), AC22A (inductive)
  • Mechanical Life: 10,000 cycles
  • Frequency: 50/60Hz
  • Cable Size: Up to 25mm²
  • Tightening Torque: 2Nm

Dimensions:

  • Width: 144mm (8 DIN modules)
  • Height: 85mm
  • Depth: 75mm

Applications:

  • Three-Phase Generator Changeover: Easily switch between mains and generator in 3-phase systems.
  • Industrial & Commercial Boards: Ideal for machine control panels, factory switchboards, and backup power installations.
  • Off-Grid & Solar Hybrid Systems: Manages power routing between solar inverters, batteries, and grid supply.
  • Building Management Systems: Provides manual source selection and safety isolation in multi-supply buildings.

The Tesla DCO4P63 4 Pole 63A DIN Rail Changeover Switch delivers a safe, robust, and standards-compliant solution for switching between two power supplies in three-phase applications. With its centre-off functionality, reliable build, and flexible mounting, it is a must-have for backup power and load management systems.

Q: Is the Tesla DCO4P63 suitable for switching all three phases and neutral?
A: Yes, it is a 4-pole switch, making it suitable for 3-phase + neutral configurations.

Q: What does centre-off mean?
A: The centre-off position provides a neutral state between two power sources, allowing for safe disconnection before switching.

Q: Can this be used for inductive loads like motors?
A: Yes, it is rated for AC22A, which supports moderately inductive loads such as motors.

Q: Do I need a professional to install it?
A: Yes, installation should always be performed by a licensed electrician, especially in three-phase systems.

All products must be installed by a licensed electrican. DIY electrical work is illegal and very dangerous.
