The Trafalgar FyrePLUG® Range offers a versatile and reusable solution for maintaining fire compartmentation around service penetrations in walls and floors. Designed for fast, compliant installation with no mess and no curing time, FyrePLUG® pillows are perfect for both temporary and permanent firestopping in a wide range of applications, including cables, pipes, conduits, and mixed services.

Available in three convenient sizes, these pillows are filled with high-performance, fire-resistant granulated material and enclosed in a durable fireproof cover. They are easy to install, remove, and reuse—making them ideal for new builds, upgrades, and maintenance works.

Key Features:

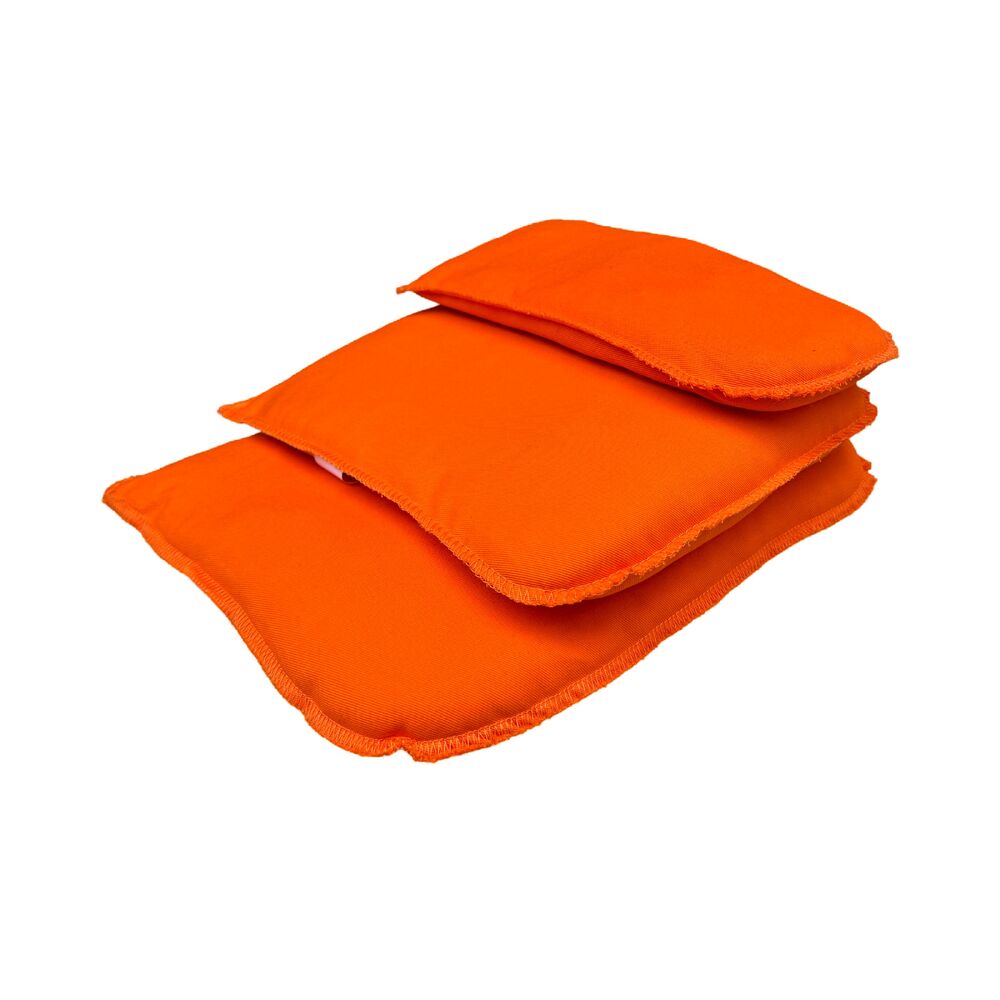

  • Comprehensive Size Range: Available in Small (100x250mm), Medium (200x250mm), and Large (300x250mm) to suit various penetration dimensions.
  • Fire-Tested to AS1530.4-2014: Certified performance in numerous wall and floor systems, including Speedpanel®, Hebel®, plasterboard, and concrete.
  • Compliant with NCC 2022 (Section C4D15): Approved for both temporary and permanent firestopping, offering flexibility for changing site conditions or staged installations.
  • Removable and Reusable: Easy to handle with no tools or sealants required, and simple to reposition or remove for future access.
  • Clean, Dry Installation: No wet trades, no curing time—minimising disruption on-site and speeding up firestopping workflows.
  • High-Density Performance: Pillows compress and expand to tightly fill gaps around services and maintain integrity under fire exposure.
  • Compatible with Mixed Services: Suitable for sealing around electrical cables, metal pipes, data lines, NBN fibre, and conduits.
  • Made in Australia: Manufactured locally to ensure high quality and fast supply.

Specifications:

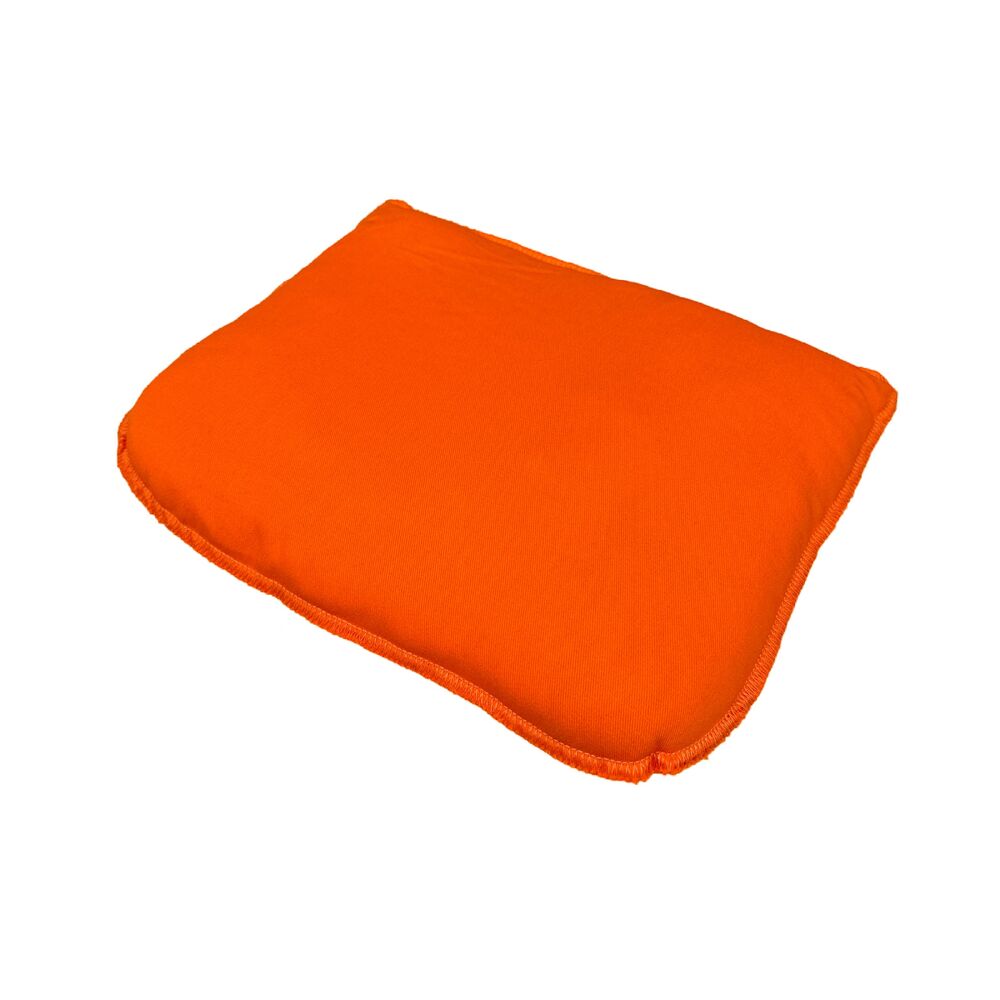

  • Size: 300mm x 250mm (Large)
  • Material: Fire-retardant granulated fill inside fire-resistant fabric
  • Colour: Orange
  • Compliance: AS1530.4-2014; NCC 2022 Section C4D15
  • Applications: Electrical, plumbing, HVAC, data/communications
  • Removeable & Reuseable: Yes
  • Installation Aids: Works with Trafalgar FyreFLEX® Sealant and accessories for enhanced performance

Applications:

  • Construction Sites: Temporary sealing of service penetrations during staged commissioning or where services are not finalised
  • Electrical Installations: Fire-rated sealing of cable trays, busbars, and electrical conduits
  • Data & Communications: Suitable for NBN fibre and structured cabling penetrations
  • HVAC & Plumbing: Effective around copper, steel, and PVC pipe penetrations (with formers and sealants as required)
  • Building Upgrades: Retrofit firestopping in existing buildings, with easy removal for future modifications

The Trafalgar FyrePLUG® Fire Rated Pillow Range provides a fast, clean, and compliant solution for passive fire protection. Whether used temporarily during construction or installed permanently, these pillows help maintain the integrity of fire-rated walls and floors around service penetrations. With easy installation, no mess, and full compliance with Australian Standards, FyrePLUG® is the go-to choice for contractors, electricians, and builders seeking versatile and reliable firestopping.

Q: Can FyrePLUG® pillows be left in place permanently?
A: Yes. When installed correctly and left undisturbed, they are compliant for permanent firestopping as per NCC C4D15.

Q: Are the pillows suitable for use in Speedpanel® or Hebel® walls?
A: Yes, the FyrePLUG® range is tested and approved for use in a variety of wall and floor systems including Speedpanel® and Hebel®.

Q: What if a tighter seal is required around the services?
A: For enhanced fire and smoke sealing, pillows can be used in combination with FyreFLEX® Sealant or FyrePEX™ HP around cables and conduits.

Q: How do I determine how many pillows are needed?
A: The quantity depends on the penetration size and services installed. Refer to Trafalgar’s technical manual or fire test reports for guidance. Alternatvley, there is a fire fillow quantity estimator available on the manufacturer website HERE

Q: Are the pillows reusable during staged construction?
A: Yes, they are fully reusable, making them ideal for projects where access is needed before final sign-off.

All products must be installed by a licensed electrican. DIY electrical work is illegal and very dangerous.

Change of Mind
All products purchased from MJS Electrical Products & Supplies are backed by a thirty (30) day Peace of Mind Return Policy. All products returned must be in perfect unused condition, with all components, complete with original packaging. We will not allow returns on damaged or incomplete products. Proof of purchase is required. Should the product not be in original condition, please contact us before returning it as this may save you some unnecessary costs.

Damaged / Faulty Goods
If you find that the goods were damaged in transit or were faulty in some manner, please contact us within 24 hours of receiving the goods. We will organise for the return of the goods and arrange a credit towards your next purchase or send a replacement product. Customer will incur the cost of return postage and be credited the purchase price only. We recommend that you return your unwanted items using registered post or trackable courier. We can not be held responsible if returned items are lost in transit.

Warranties
Product warranties are governed by the respective manufacturers and / or suppliers warranty terms and conditions (available on request). We will not be liable to you or any third party for any loss suffered due to product failure. We will process product warranty claims through the respective manufacturers and/or suppliers. All warranties are void if the product is not installed by a licensed electrician.

PRODUCT INFO
SKU FYREPLUG-L
Model # FYREPLUG-L
Brand Trafalgar Fire
SHIPPING INFO
Shipping Weight 0.4230kg
Shipping Width 0.300m
Shipping Height 0.038m
Shipping Length 0.250m
