The Professional AI Series utilises the latest in AI machine learning technology to identify people & vehicles with superior accuracy and reliability. Experience improved AI performance with Smart Motion Detection (SMD 4.0) that minimises false triggers and detects humans & vehicles with a 99% accuracy rate. AI Smart Scene Adaptive (AI SSA) detects and adjusts for fog, glare, low light and rain to ensure capture of clear video evidence.

Camera features:

• Stream up to 8.0MP (3840 x 2160) at 25fps
• 2.8mm fixed lens with 107° viewing angle
• H.265 encoding for efficient storage & streaming
• Up to 30m infrared range; true day/night (auto ICR)
• Built-in microphone and microSD slot for edge recording
• AI powered perimeter protection & smart motion detection (SMD 4.0)
• Set up AI people and vehicle detection, receive alerts and search footage by people or vehicles
• AI weather and anti-flicker scene self-adaption
• Back/highlight compensation & true WDR (120dB)
• 3D digital noise reduction & auto white balance
• IP67 weather rated housing for outdoor use

Camera:

• Image Sensor: 1/2.8” 8.0MP Progressive Scan CMOS
• Max Resolution: 8.0 Megapixel
• Effective Pixels: 3840 (H) x 2160 (V)
• RAM / ROM: 1GB / 128MB
• Min Illumination: 0.005 Lux/F1.5 (Color)
• S/N Ratio: >56dB
• Infrared System: 2 x Infrared LED, 30m range, Auto/manual on/off control

Lens:

• Lens / Iris: 2.8mm Fixed Focal Lens with Fixed Iris
• Field of View: Horizontal: 97°, Vertical: 71°
• Focus: Focus / 1.5m Min. Focus Distance

DORI:

• Detect: (25px/m) 88m
• Observe: (63px/m) 35m
• Recognise: (125px/m) 18m
• Identify: (250px/m) 9m

Video:

• Resolution: 8.0MP (3840 x 2160) to CIF (352 x 288)
• Frame Rate:
  • Main: 8.0MP (1 ~ 25fps) / 4.0MP (1 ~25fps)
  • Sub: D1 (1 ~ 25fps)
  • Third: 1080p (1 ~ 25fps)
• Video Compression: H.265 / H.264 / H.264B / MJPEG
• Bit Rate: H.265: 19 ~ 8192Kbps / H.264: 32 ~ 8192Kbps
• Bit Rate Control: Constant bit rate (CBR) / Variable bit rate (VBR)
• Day/Night: Auto (ICR) / Color / B&W
• Lighting Compensation: BLC / HLC / WDR (120dB) / AI SSA
• White Balance: Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom
• Gain Control: Auto
• Noise Reduction: 3D DNR
• Picture Control: Mirror / Flip (0°, 90°, 180°, 270°) (Support 90°/270° with 2.0MP resolution)

IVS:

• Video Functions: Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared
• Perimeter Protection: Tripwire & Intrusion (Add recognition of humans & vehicles)
• Event Trigger: Motion Detection, Video Tampering , Scene Changing, Network Disconnection, IP Address Conflict, Illegal Access, Storage Anomaly

Network:

• Ethernet: RJ-45 (10/100Base-T)
• Protocol: IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; 802.1x; SNMP
• Streaming Method: Unicast / Multicast
• Max. User Access: 20 Users

Interface:

• Video Interface: N/A
• Audio Interface: Built-in Mic / Audio Compression - G.711a; G.711Mu; G726; AAC; G.723; PCM
• Alarm Interface: N/A
• RS485: N/A
• Edge Storage MicroSD Card: (up to 256GB) / NAS
• Interoperability: ONVIF / P2P / CGI / Milestone / Genetec

Environmental:

• Power Supply: 12VDC / PoE (802.3af)
• Power Consumption: <8.9W
• Operating Conditions: -40°C ~ +60°C / ≤95% RH
• Ingress Protection: IP67
• Vandal Resistance: N/A
• Housing: Metal
• Pan/Tilt/Rotation: Pan: 0° ~ 360°, Tilt: 0° ~ 78°, Rotation: 0° ~ 360°

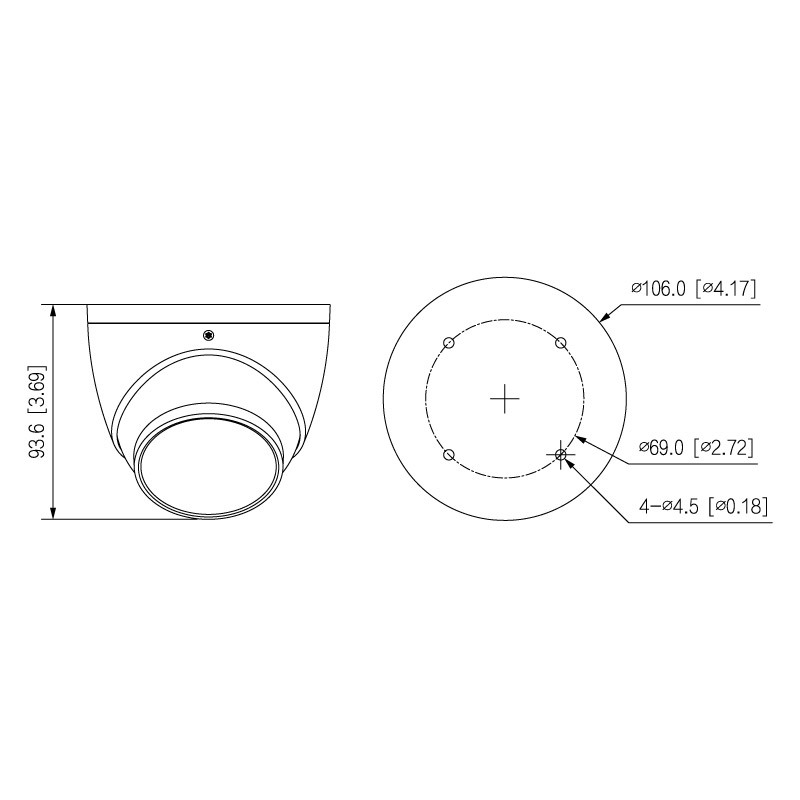

• Dimensions: Ø106mm x 93.6mm
• Net Weight: 0.50kg
• Warranty: 4 Years
